SN74LVC2G17DCKR: Pin1 location

Liu Yang

Hi Team,

The atteched is SN74LVC2G17DCKR.
However I can not find out the Pin1 Index Area shown as shadow in the datasheet.
Could you help to clarity pin1 location?
Does the line in the left side mean the shadow?

Best Regards,
Tom Liu

over 5 years ago

0 Clemens Ladisch over 5 years ago

Guru 316920 points

The long bar at the left indicates pin 1. The index area shows that you have to look at the bottom of the bar, not at the top.

0 Liu Yang over 5 years ago in reply to Clemens Ladisch

TI__Expert 8775 points

Hi Clemens,

Thank you for your reply.

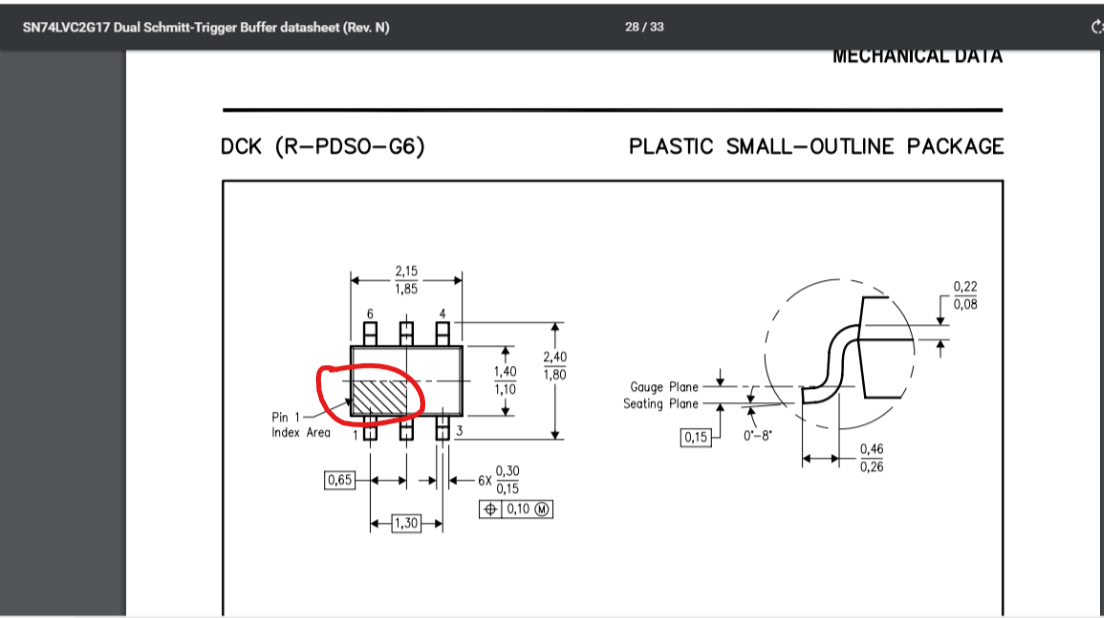

I marked the pin 1 with red circle. Am I right?

Tom

0 Dylan Hubbard over 5 years ago in reply to Liu Yang

TI__Mastermind 45835 points

Hey Tom,

Yes, that is pin 1 you have circled.
