SN74LVC1G123: what is the minimum pulse duration over that temp range?

Lindsey Fike

Part Number: SN74LVC1G123

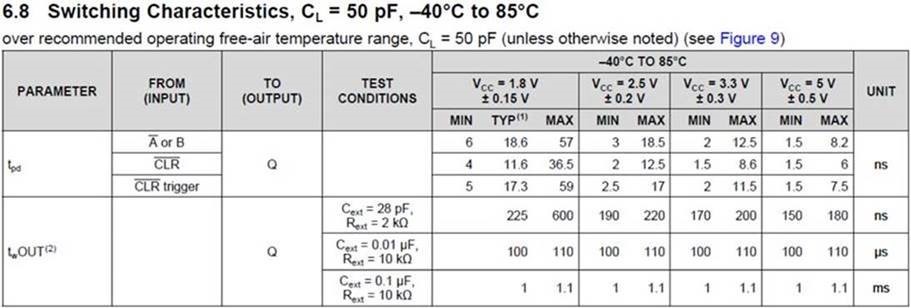

Its datasheet shows (below table) that with a 10kOhm resistor and a 0.1uF Capacitor at Vcc=1.8V, the pulse width is typically 1ms and max 1.1ms over the -40~+85C temp range.

My question now is: what is the minimum pulse duration over that temp range?

over 5 years ago

0 Clemens Ladisch over 5 years ago

Guru 316470 points

This looks as if the three minimum values ended up in the wrong column.

0 Lindsey Fike over 5 years ago in reply to Clemens Ladisch

TI__Intellectual 2250 points

So are the typical values really the minimum values?

0 Dylan Hubbard over 5 years ago in reply to Lindsey Fike

TI__Mastermind 45725 points

Hey Lindsey,

I'm not quite sure this is the case, but let me do some digging to see what I can find out here. I'll come back within 24 hours to give my feedback.

0 Dylan Hubbard over 5 years ago in reply to Dylan Hubbard

TI__Mastermind 45725 points

Hey Lindsey,

For that condition it will be safe to use 0.9 ms as the min with the typ being 1 ms as listed in the datasheet. I've marked this datasheet to be worked in the future where we will likely modify the table to eliminate the confusion it presents.
