Question on SN74CBTLV3384 OE# control

Anonymous
Anonymous
Other Parts Discussed in Thread: SN74CBTLV3384

Hi All,



I would like to ask some questions on SN74CBTLV3384 switch.

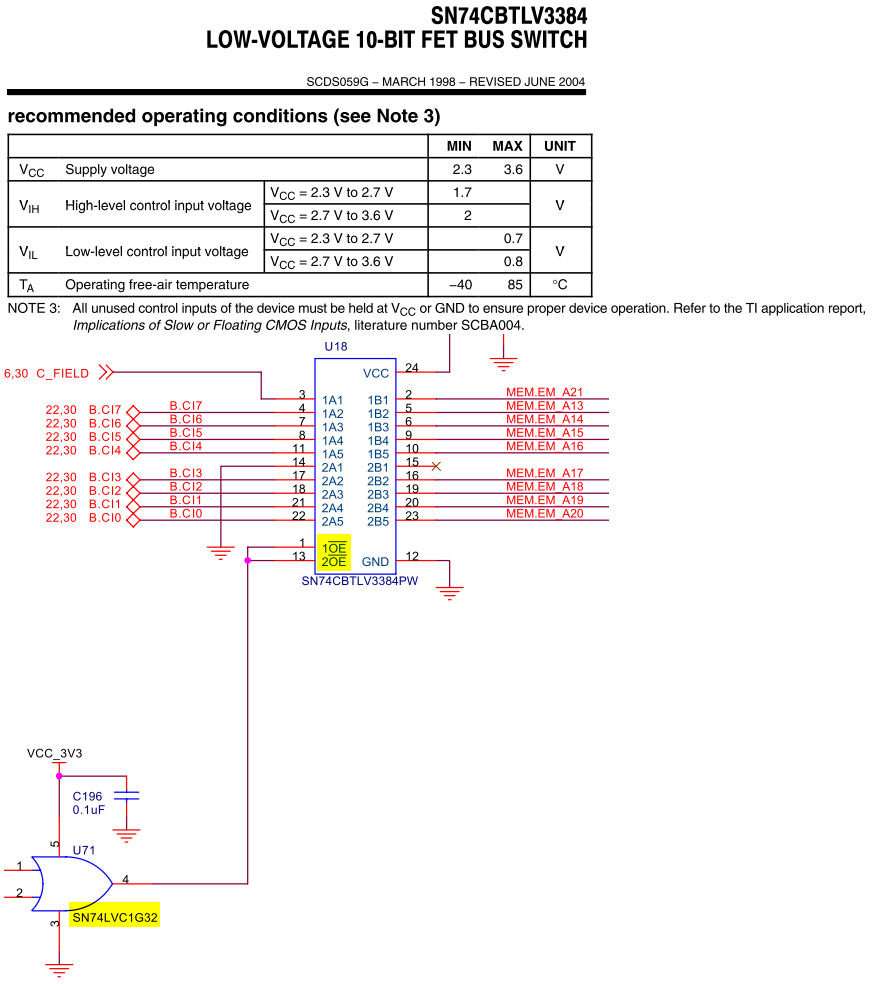

I have found that on sheet 15- EMIF Muxing page of the schematics of EVM6437 (made by Spectrum for DM6437 DSP),  the OE# pins are controlled through an OR gate, rather than directly.



The first question is what should be the voltage for OE# signal? Does SCDS059G’s VIH and VIL include OE# signals, or only for input port A1 and A2 signals?



The second question is that why the OR gate is used?









Thanks,

Zheng
