TM4C129XNCZAD: PWM Generator

Rajesh Varma
Intellectual 300 points
Part Number: TM4C129XNCZAD

Dear Sir,

I want to generate PWM signal .

Can I use PD4 as PWM generator?

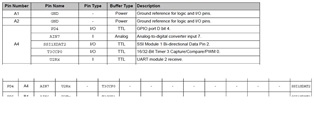

In multiplexing the PD4 is not showing as PWM whereas Pin details its show as PWM0 .Kindly refer below image.

Some conflict

PD4-----A4----AIN7----U2RX-----T3CCP0-----SSI1XDATA2

  • 0
    TI__Guru*** 135355 points

    Hello Rajesh,

    PD4 in the datasheet is showing that it is a Timer pin which is PWM capable from the Timer peripheral. This is not a pin that is in the PWM peripheral. You can configure that timer to use it as a PWM but you wouldn't have all the feature the PWM module gives.

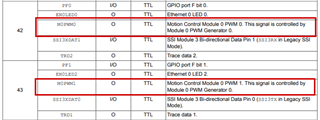

    The below image shows how PWM peripheral outputs are marked in the datasheet:

    Best Regards,

    Ralph Jacobi

  • 0 in reply to Ralph Jacobi
    Intellectual 300 points

    Dear Ralph,

    TM4C129XCNZAD

    In pin_map.h it show

    #define GPIO_PD0_I2C7SCL              0x00030002ually
    #define GPIO_PD0_T0CCP0               0x00030003
    #define GPIO_PD0_FAN0PWM4         0x00030004
    #define GPIO_PD0_C0O                     0x00030005
    #define GPIO_PD0_SSI2XDAT1           0x0003000F

    it show FAN0PWM4 what it means?

    It is not PWM?

    Actually In my designed PCB only this pin is accessible to me so can we use this pin?

  • 0 in reply to Rajesh Varma
    TI__Guru*** 135355 points

    Hello Rajesh,

    Rajesh Varma said:
    #define GPIO_PD0_FAN0PWM4         0x00030004

    Where did you get this pin_map.h file? This is not what we provide with TivaWare on TI.com. I don't understand how/where you got this pin_map.h file.

    What you are showing is for a peripheral on a non-public device family which we cannot support on E2E.

    Rajesh Varma said:
    Actually In my designed PCB only this pin is accessible to me so can we use this pin?

    I would say your best bet is to use Timer0 in PWM mode and output the PWM on PD0.

    Best Regards,

    Ralph Jacobi
