TM4C1294NCPDT: Detected as unknown device

Hello Divyesh,

Can you explain what specifically you are trying to accomplish? I can generally follow what you have done and what you are seeing, but I don't understand the objective so I am not sure what feedback to provide you.

I think most importantly for me, I am trying to understand if you are trying to use USB or an XDS110 to program the device?

The Device Firmware Update feature is the USB boot loader while XDS110 uses JTAG, not USB. So maybe there is a disconnect there?

Best Regards,

Ralph Jacobi

Hi Ralph,

Actually there is one mistake in above statement.

By mistake our debugger XDS110 IC (TM4C129) got damaged in the board of TMDS243GPEVM. So we replaced the ic but it was not working. So i thought i need to install boot loader and firmware in the TM4C129. So that i tried according to previous thread but its detected as unknown device.

So please help me out.

--

Thanks & Regards,

Divyesh Patel

Hello Divyesh,

So effectively you are trying to upload an XDS110 firmware image to a new TM4C129 IC on the TMDS243GPEVM?

The guide you posted I believe is for a standalone XDS110 debug probe, I am not sure if it would apply to your board.

Are you trying to connect to the TM4C device over JTAG or with USB only?

Best Regards,

Ralph Jacobi

Hi Ralph,

Thank you for your response.

Ralph Jacobi said:

So effectively you are trying to upload an XDS110 firmware image to a new TM4C129 IC on the TMDS243GPEVM?

Yes, correct.

Ralph Jacobi said:

Are you trying to connect to the TM4C device over JTAG or with USB only?

Over USB

Ralph Jacobi said:

The guide you posted I believe is for a standalone XDS110 debug probe, I am not sure if it would apply to your board.

Okay, so what could be the way to make it functional?

Because i am unable to access AM2434 over USB.

--

Thanks & Regards,

Divyesh Patel

Divyesh Patel said:

By mistake our debugger XDS110 IC (TM4C129) got damaged in the board of TMDS243GPEVM. So we replaced the ic but it was not working

Just to confirm - you got the TM4C1294NCPDT with 1MB flash, correct?

Divyesh Patel said:

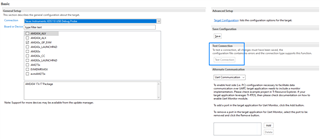

First when i plugged in USB,it was identified as "Stellaris Device Firmware Upgrade" in device manager then from the directory of CCS1110 have opened command prompt, it was also detected as attached image(followed the guideline form FLASH bootloader sequence of https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds110.html#updating-the-xds110-firmware)

After you replace the IC, you were able to see the device in DFU mode like above? And then you tried to flash the firmware via:

xdsdfu -f firmware<version>.bin -r

And after you did that, the XDS110 was no longer detected via "xdsdfu -e" or via Device Manager?

Hi Ki,

Ki said:

Just to confirm - you got the TM4C1294NCPDT with 1MB flash, correct?

Yes, It has 1MB flash.

...

Ki said:

After you replace the IC, you were able to see the device in DFU mode like above? And then you tried to flash the firmware via:

xdsdfu -f firmware<version>.bin -r

Yeah, followed the same procedure.

Ki said:

And after you did that, the XDS110 was no longer detected via "xdsdfu -e" or via Device Manager?

Yeah, correct. Then, it was no longer identified as "Stellaris Device Firmware Upgrade"

Please help me out.

--

Thanks & Regards,

Divyesh Patel

It could be that something went wrong with the flashing of the bootloader. You can try the "Flashing the bootloader" section which involves connecting pin 97 of the TM4C1294NCPDT to ground:

https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds110.html#flashing-the-bootloader

Otherwise I don't have much more suggestions to try...

ki

Hi Ki,

I have followed the same procedure of "https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds110.html#flashing-the-bootloader" as described above.

Divyesh Patel said:

First when i plugged in USB,it was identified as "Stellaris Device Firmware Upgrade" in device manager then from the directory of CCS1110 have opened command prompt, it was also detected as attached image(followed the guideline form FLASH bootloader sequence of https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds110.html#updating-the-xds110-firmware)

But, i am unable to get it done successfully. Is there any other method to erase or unlock the controller?

Because likewise i damaged 3 controller.

Please help me out.

Looking forward to hearing from you.

--

Thanks & Regards,

Divyesh Patel

Divyesh Patel said:

But, i am unable to get it done successfully. Is there any other method to erase or unlock the controller?

Sorry, but I am not aware of any others. Perhaps there is some issue with your HW connections? I will defer to the device experts for more comments.

Hello Divyesh,

Are you able to observe the XDS110 in the device manager when connected over USB?

Regards,

Erik

Hi Ki,

Ki said:

Sorry, but I am not aware of any others. Perhaps there is some issue with your HW connections? I will defer to the device experts for more comments.

Sure, Thank you for your support.

--

Thanks & Regards,

Divyesh Patel

Hi Erik,

Erik Friedel said:

Are you able to observe the XDS110 in the device manager when connected over USB?

No, I am not able to observe as XDS110 device.

During booting first time, i have only observed as "Stellaris Device Firmware Upgrade" device.

--

Thanks & Regards,

Divyesh Patel

Hello Divyesh,

You originally said that you were using a custom board but followed up saying that you are using the AM243x GPEVM. Can you confirm that you are using the GPEVM  and not a custom board?

Could you please try again to run through the sequence for "Flashing the bootloader" located here: https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds110.html#troubleshooting

Regards,

Erik

Hi Erik,

Erik Friedel said:

You originally said that you were using a custom board but followed up saying that you are using the AM243x GPEVM. Can you confirm that you are using the GPEVM  and not a custom board?

It's not custom board. We are using AM243x GPEVM only.

Erik Friedel said:

Could you please try again to run through the sequence for "Flashing the bootloader" located here: https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds110.html#troubleshooting

I have followed the same link, but still getting an issue.

Looking forward for your feedback.

--

Thanks & Regards,

Divyesh Patel

Hi Erik,

Thank you so much for your support.

I just want to confirm that, if everything is correct from the hardware side, then does this guide will be helpful or can solve the locking issue?

Divyesh Patel said:

Erik Friedel said:

Could you please try again to run through the sequence for "Flashing the bootloader" located here: https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds110.html#troubleshooting

--

Thanks & Regards,

Divyesh Patel

Hi Erik,

Thank you so much for your support.

I will check the hardware and implement the same.

--

Thanks & Regards,

Divyesh Patel
