TMDS243GPEVM: MCU-PLUS-SDK-AM243x- Firewall Module

Himel Saha

Part Number: TMDS243GPEVM

Hello,

In the latest release (08.05.00) of MCU-PLUS-SDK-AM243x, I can see a new module added called "Firewall".

I have the AM243x GP EVM. I intend to isolate the M4F core and use this Firewall module to restrict access to certain GPIO peripherals for the other cores.

I have a few questions regarding this since I might have missed it in the documentation:

1. Is the Firewall module supported in TMDS243GPEVM?

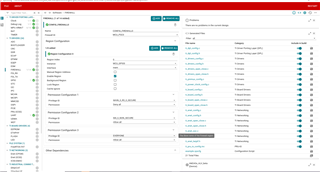

2. I used SysConfig to add the Firewall Module and its configuration as shown in the following screenshot. As an example, I am trying to deny MCU_GPIO0's access to R5F. Is this the correct way to do so?
After I save this config and build the code, I still see that R5 is able to access a GPIO pin in that region. Please suggest what am I missing/if I am doing something wrong?

Any help would be appreciated. Thank you.

Himel

over 2 years ago

0 Kowshik Gudimetla over 2 years ago

TI__Genius 15435 points

Hi Himel,

I am looking into this query, will check with the internal team on this and come back soon.

Thanks,
G Kowshik

0 Kowshik Gudimetla over 2 years ago in reply to Kowshik Gudimetla

TI__Genius 15435 points

Hi Himel,

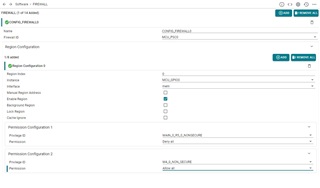

I have done a similar experiment on the our EVM at my desk with the below mentioned configuration. We have taken a gpio_blink example, configured the following firewall and when we tried to run the code, we ended up in the data_abort handler which basically says an illegal access to GPIO occurred.

Hope this helps.

Thanks,
G Kowshik

0 Himel Saha over 2 years ago in reply to Kowshik Gudimetla

Prodigy 70 points

Hi Kowshik,

Thank you for your response. I will try the same configuration you used and let you know the results.

0 Himel Saha over 2 years ago in reply to Kowshik Gudimetla

Prodigy 70 points

Hi Kowshik,

I tried the same configuration as you but I can still see the LED blink.
Here is how my setup looks like:
- SysConfig: same as you (for R5FSS0-0 config)
- Demo Code examples used: gpio_led_blink_am243x-evm_r5fss0-0_nortos_ti-arm-clang and gpio_led_blink_am243x-evm_m4fss0-0_nortos_ti-arm-clang
- I first load the examples, modify the R5 SysConfig file using the SysConfig editor to include the firewall, build both the projects, load the executable onto R5_0-0 and then to M4_0-0. Then I first run the R5 using the debugger, followed by M4.

I see the following output on my console and I can see the GPIO LED pin 5 blink for both the example codes.

Maybe I am doing something different than you?

Thanks,
Himel

0 Kowshik Gudimetla over 2 years ago in reply to Himel Saha

TI__Genius 15435 points

Hi Himel,

This is weird, let me make the project on my end and I'll share it with you, seen if generates the proper behaviour.

Thanks

0 Himel Saha over 2 years ago in reply to Kowshik Gudimetla

Prodigy 70 points

Hi Kowshik,
That will be helpful. Thank you!

0 Kowshik Gudimetla over 2 years ago in reply to Himel Saha

TI__Genius 15435 points

Hi Himel,

Here's the code.

gpio_firewall.zip

0 Himel Saha over 2 years ago in reply to Kowshik Gudimetla

Prodigy 70 points

Hi Kowshik,

I just loaded and tried your code. Still the same issue. I can see the LED blinking.
Do you have a different version of EVM, maybe?

I see that there is a new EVM version (TMDS243EVM). Do you have that? I am currently using the following version- TMDS243GPEVM.
Could that be a reason why it is not working for me?

+1 Kowshik Gudimetla over 2 years ago in reply to Himel Saha

TI__Genius 15435 points

Hi Himel,

Can you run this script and share us the screenshot of the CMD log? The details on how to run the script is present in this FAQ link

(+) [FAQ] MCU-PLUS-SDK-AM243X: How to identify if the device is GP device or HS device ? - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

The reason to do this is, we have the firewalls enabled only in the HS-FS device, if your SoC is GP device the firewalls are not enabled in it. Also, can you tell us if you can connect to the M3 core using CCS or not?

Thanks

0 Himel Saha over 2 years ago in reply to Kowshik Gudimetla

Prodigy 70 points

Hi Kowshik,

Thanks for letting me know. I will run the script and share the information with you when possible.
