Hi,
CCS 12.2.0.00009
TI-CGT-ARM 20.2.7.LTS
I have found an issue while testing a bootloader that has caused us an issue. When I go back over other non-bootloader firmware projects, we have the same issue.
Overview:
The linker generates "__TI_CINIT_Base" and "__TI_CINIT_Limit"
These two values are used to copy the default values for initialised global variables stored in .cinit.
During boot, we copy the table over as per:
/*lint -e740 Unusual pointer cast (incompatible indirect types) [MISRA 2004 Rule 1.2] */
// https://software-dl.ti.com/codegen/docs/tiarmclang/compiler_tools_user_guide/compiler_manual/runtime_environment/system-initialization-stdz0543503.html
Luint8 **tablePtr = (Luint8 **)&__TI_CINIT_Base;
Luint8 **tableLimit = (Luint8 **)&__TI_CINIT_Limit;
/*lint +e740 */
/*lint -e681 Loop is not entered [MISRA 2004 Rule 14.1] */
while(tablePtr < tableLimit)
{
//#1476-D (MISRA-C:2004 17.4/R) Array indexing shall be the only allowed form of pointer arithmetic
//OK In this instance
Luint8 *loadAdr = *tablePtr++;
The Problem

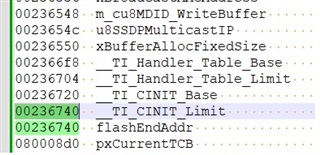

Once we program the device, we look at the .map file and find the __TI_CINIT_Limit address
And then we find the FLASH in the RM57L843 is 0xFFFFFFFF at that location.
This means that C Init system will run on until 0xFFFFFFFF, which takes quite some time.
Our Linker Script
Linker script is shown below.
There is nothing too special, however for this example we are locating a boot image header at a specific location and moving the reset vector table. This is OK because our bootloader, located in bank 0 knows how to jump to this location.
--retain="*(.intvecs)"
/*----------------------------------------------------------------------------*/
/* Memory Map */
MEMORY
{
/** OAD Image header, length 0x100 */
OAD_IMAGE_HDR (X) : origin=0x00200000 length=0x00000100 vfill = 0xffffffff
/** Reset vectors for the BIM are at the start of FLASH 1, length 0x20 */
VECTORS (X) : origin=0x00200000 + 0x100 length=0x00000020 vfill = 0xffffffff
/** Firmware version marker, length 0x20 - padded for nice ECC fill region */
FIRMWARE_LFW : origin=0x00200000 + 0x100 + 0x20 + 0x00 length=0x00000004 fill=0x00000000
FIRMWARE_MAJOR : origin=0x00200000 + 0x100 + 0x20 + 0x04 length=0x00000004 fill=0x00000000
FIRMWARE_MINOR : origin=0x00200000 + 0x100 + 0x20 + 0x08 length=0x00000004 fill=0x00000000
FIRMWARE_SPARE : origin=0x00200000 + 0x100 + 0x20 + 0x0C length=0x00000014 fill=0xffffffff
/** FreeRTOS Kernel code */
KERNEL (RX) : origin=0x00200000 + 0x100 + 0x20 + 0x20 length=0x00008000
/** Flash 1 for main application, -0x20 for some spare space at the end */
FLASH1 (RX) : origin=0x00200000 + 0x100 + 0x40 + 0x8000 length=0x002000000 - 0x100 - 0x40 - 0x8000 - 0x020 /*vfill = 0xffffffff*/
STACKS (RW) : origin=0x08000000 length=0x00000800
KRAM (RW) : origin=0x08000800 length=0x00000800
RAM (RW) : origin=(0x08000800 + 0x00000800) length=(0x0007F800 - 0x00000800)
/*
2.2.3.2 ECC Protection for Flash Accesses
The access to the program memory – flash bank 0, 1 and 7 are protected by SECDED logic implemented inside the ARM Cortex-R5F CPU
There is an 8-bit ECC for every 64 bits of data (8 bytes)
The ECC for the flash array is stored in the flash itself, and is mapped to a region starting at 0xF0400000 for the main flash bank 0 and 1
*/
/** ECC region for the OAD Image Header - 0x100/8 = 0x20 */
ECC_FLASH1_OAD_IMAGE (R) : origin=0xf0400000 + 0x300000 length=0x20 ECC={ input_range=OAD_IMAGE_HDR }
/** ECC region for the vector table - 0x20/8 = 4 */
ECC_FLASH1_VEC (R) : origin=0xf0400000 + 0x300000 + 0x20 length=0x4 ECC={ input_range=VECTORS }
/** ECC region for the firmware table - 0x20/8 = 4 */
ECC_FLASH1_FW (R) : origin=0xf0400000 + 0x300000 + 0x20 + 0x04 length=0x4 ECC={ input_range=FIRMWARE_LFW }
/** ECC for OS, 0x8000/8 = 0x1000 */
ECC_FLASH1_KERNEL (R) : origin=0xf0400000 + 0x300000 + 0x20 + 0x04 + 0x04 length=0x1000 ECC={ input_range=KERNEL }
/** ECC for the rest of the FLASH region, (0x002000000 - 0x100 - 0x40 - 0x8000) / 8 = 3FEFD8*/
ECC_FLA1 (R) : origin=0xf0400000 + 0x300000 + 0x20 + 0x04 + 0x04 + 0x1000 length=0x3FEFD8 ECC={ input_range=FLASH1 }
}
ECC
{
algo_name : address_mask = 0xfffffff8
hamming_mask = R4
parity_mask = 0x0c
mirroring = F021
}
/*----------------------------------------------------------------------------*/
/* Section Configuration */
SECTIONS
{
// Image header is first
GROUP > OAD_IMAGE_HDR
{
.image_header
}
/** reset vector */
.intvecs : {} > VECTORS
/** Fimrware version markers */
.lfwFirmware : {} > FIRMWARE_LFW
.majorFirmware : {} > FIRMWARE_MAJOR
.minorFirmware : {} > FIRMWARE_MINOR
/* FreeRTOS Kernel in protected region of Flash */
.kernelTEXT align(32) : {} > KERNEL
GROUP > FLASH1
{
.text align(32)
.const align(32)
/** Boot Time Init Tables */
.binit align(32)
/** Init Tables */
.cinit align(32)
/** C++ Constructor Tables */
.pinit align(32) LOAD_END(flashEndAddr)
}
.kernelBSS : {} > KRAM
.kernelHEAP : {} > RAM
.bss : {} > RAM
.data : {} > RAM
.sysmem : {} > RAM
}
Any suggestions as to why the last word address is 0xFFFFFFFF?
Also cc: George Mock as you've helped me in the past on Linker Issues.
Regards
Stomp!
