AM2432: Ultra Librarian symbol is for Rev 1.0 (J15, J16)

Robert Finger

Part Number: AM2432

Team,

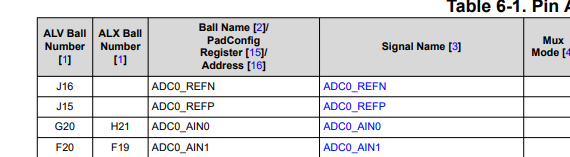

When using Ultra Librarian to get the symbol for AM2432B (Rev 2.0), it seems that a symbol for silcon rev 1.0 is generated. J15 and J16 are shown as VDDS_MMC0 and VSS, not ADC0_REFP and REFN.

How can this be fixed?

Thanks,
Robert

over 2 years ago

0 Fleenor over 2 years ago

TI__Mastermind 22893 points

Hello Robert,

Thank you for pointing this out. We have filed a ticket to make sure the latest symbol data is added.

Best Regards,

Zackary Fleenor

0 Robert Finger over 2 years ago in reply to Fleenor

TI__Genius 17367 points

Hi Zackary,

Looks like these are also wrong, can you please check?

VDDSHVD => VDDSHV0
VDDSHVS => VDDSHV5
VDDA_DP85_SERDESO => …SERDES0
PORz_OUT shown as bidirectional, but shouldn't it be an output only?

Thanks,
Robert

0 Randy Rosales over 2 years ago in reply to Robert Finger

TI__Mastermind 18470 points

I will need to audit the full pin list on these devices - not just the pins that have been specifically called out. The process will likely take over a week to get refreshed on the ti.com site once the changes are in place. We are already in contact with the librarian team. Will update this thread as updates are made.

Thank you,

-Randy

+1 Randy Rosales over 2 years ago in reply to Randy Rosales

TI__Mastermind 18470 points

I am closing this thread for now as the symbol team is preparing the part. Part will be updated in the coming weeks.

Thank you,

-Randy
