How to connect AM6254 16bit YUV 422 and SII9022ACNU

toby Tang

Other Parts Discussed in Thread: SK-AM62

Hi, I want to use 16bit YUV 422 connected to SII9022ACNU, and I have the following confusion:

What does the following description mean in AM62x SK EVM User's Guide?

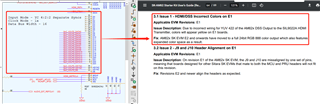

The SK-AM62 E1 board was intended to feature 16bit YUV 422 video output but was wired incorrectly.

Schematic design incorrectly or PCB design incorrectly？If the schematic design is incorrect, how do I design the schematic correctly?

0 Kallikuppa Sreenivasa over 2 years ago

Hello Toby Tang,

Thank you for the query.

My quick assessment is you will have to connect the Data0 to D0 of SII9022A. I will check one more time next week when i access to the datasheet.

You might have to reach out to the SII9022A silicon solution provider for additional details.

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa over 2 years ago in reply to Kallikuppa Sreenivasa

Hello Toby Tang,

The SII9022A does not provide explanation on connecting 16 bit. Please reach out to the solution provider for details.

The below could be used as a reference

Regards,

Sreenivasa

0 toby Tang over 2 years ago in reply to Kallikuppa Sreenivasa

Ok,thanks!

0 Kallikuppa Sreenivasa over 2 years ago in reply to toby Tang

Hello Toby Tang,

Thank you for the note and have a good day.

Regards,

Sreenivasa
