TMDS243EVM: eMMC- SDR , DDR , HS200 mode not supporting

Pooja Vernekar

Part Number: TMDS243EVM
Other Parts Discussed in Thread: SYSCONFIG

Hi,

I am working on eMMC (MMC0) and by default eMMC is configured with HS_SDR and DS supporting modes in sysconfig.

But my goal is to set eMMC with different supporting modes like Low Speed, High Speed SDR, High Speed DDR and HS200 and check the Clock frequency during Write and Read operation on eMMC.

In SysConfig when Input Clock Frequency of eMMC is set to 100MHz, I am reading as 50MHz.

How we can set different supporting modes for eMMC (MMC0) through CCS ???

I am using MMCSD- raw-io example project from mcu_plus_sdk_am243x_08_05_00_24 SDK.

Please suggest how can I proceed with this issue and can use other supporting modes.

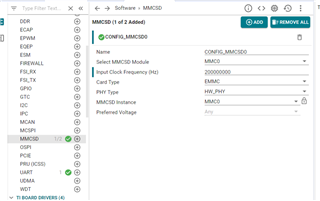

SYSCONFIG:

over 2 years ago

0 Pooja Vernekar over 2 years ago

Prodigy 10 points

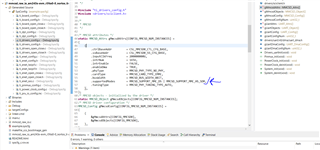

In SYSCONFIG, ti_drivers_config.c file by default supporting modes set, So how to use or configure DDR and HS200 modes ?

0 Aakash Kedia over 2 years ago in reply to Pooja Vernekar

TI__Mastermind 26145 points

Hi Pooja Vernekar,

These are the following modes are not covered in the SDK driver.

Can you tell me the exact mode that is required ?

Best Regards,
Aakash

0 Pooja Vernekar over 2 years ago in reply to Aakash Kedia

Prodigy 10 points

Hi Aakash,

I want eMMC (MMC0) to work at these below mentioned supporting modes.

By default in example project SYSCONFIG I can see only 2 modes been added.

So how can i configure eMMC to work for DDR and HS200 modes ?

Supported MMC modes:

MMCSD_SUPPORT_MMC_DS (0x01U) /* DS (Up to 26Mhz) */
MMCSD_SUPPORT_MMC_HS_SDR (0x02U) /* HS (Up to 52Mhz) */
MMCSD_SUPPORT_MMC_HS_DDR (0x04U) /* HS (Up to 52Mhz) */
MMCSD_SUPPORT_MMC_HS200 (0x08U) /* HS200 (Up to 200Mhz) */

+1 Aakash Kedia over 2 years ago in reply to Pooja Vernekar

TI__Mastermind 26145 points

Hi Pooja Vernekar,

The requirements for DDR and HS200 is not supported by SDK although they are supported by the IP. It is planned to be supported in the future releases. I apologize as the document is not clear enough to mention the limitations of the driver or the sysconfig features. We will fix this in the documentation for the next release itself.

Best Regards,
Aakash
