MCU-PLUS-SDK-AM243X: Am243x: -verify schematic

D J

Part Number: MCU-PLUS-SDK-AM243X
Other Parts Discussed in Thread: SYSCONFIG

Hi Ti Expert,

I created a custom PCB of Am243x (ALX ) Sitara MCU. And I want to verify the schematic by Ti Expert.
But I don't know, How to verify it?

Can you guide me?

And from Am243x EVM and AM243x-LP :- 2 componts are absoulte.

OSPI :-S28HS512TGABHM010
DDR4 :-MT40A1G16KD-062E:E

Above both components were absolute. Which components are for AlterNet?

Best Regards,
Darshan

over 2 years ago

0 Fleenor over 2 years ago

TI__Mastermind 22953 points

Hey Darshan,

1) We do offer a free schematic review service available only to customers supported by a Texas Instruments employee. Can you reach out to your TI representative and ask them to submit the schematic review request form? They can reach out to me for help. First review the schematic review checklist, errata, and fill out SysConfig tool for their design.

AM64x/AM243x Schematic Checklist (https://www.ti.com/lit/pdf/spracu5)

General questions about circuits can be answered on this E2E. Is there a specific issue or area of concern?

2) AM243x_ALX package option does not support OSPI or DDR4/LPDDR4 due to pin restrictions. However, QSPI flash memory devices are supported. The general requirements for these devices are detailed in the TRM OSPI chapter.

Best Regards,

Zackary Fleenor

0 D J over 2 years ago in reply to Fleenor

Intellectual 300 points

Hi Zackary Fleenor,

Sorry for my mistake.

I have AM243x-LP and I created custom PCB of "AM243x-ALV" Sitara MCU.

D J said:

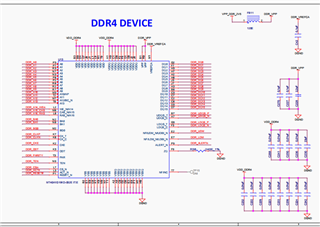

DDR4 :-MT40A1G16KD-062E:E

Source:- AM243x EVM board schematic page 12. (www.ti.com/.../TMDS243EVM)

D J said:

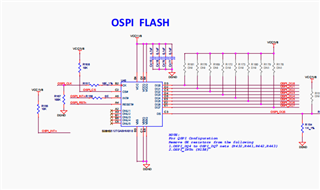

OSPI :-S28HS512TGABHM010

Source:- AM243x EVM board schematic page 14.

Best Regards,
Darshan

0 Fleenor over 2 years ago in reply to D J

TI__Mastermind 22953 points

Understood,

The AM243x_ALV package supports both DDR4/LPDDR4 and full OSPI. As mentioned before, the OSPI IC requirements are defined in the associated TRM chapter. As for DDR, the controller should be compatible with any JEDEC compliant DDR4/LPDDR4 memory IC's. The Processor DDR Configuration Tool (linked below) can then be used to define memory parameters and generate a customized configuration file.

https://dev.ti.com/sysconfig/#/config/?args=--product%20%2Fmnt%2Ftirex-content%2FProcessor_DDR_Config_0.09.08.0000%2F.metadata%2Fproduct.json%20--device%20AM243x_ALV_beta%20--part%20ALV%20--package%20ALV%20--theme%20light%20--context%20system

Best Regards,

Zackary Fleenor

0 D J over 2 years ago in reply to Fleenor

Intellectual 300 points

Hi Zackary Fleenor,
Thanks for the response.

As above mentioned, both components discontinued. Is there any alternative components available for this?

Fleenor said:
1) We do offer a free schematic review service available only to customers supported by a Texas Instruments employee. Can you reach out to your TI representative and ask them to submit the schematic review request form? They can reach out to me for help. First review the schematic review checklist, errata, and fill out SysConfig tool for their design.

where to find submit form and how to find The representative for schematic verify?

Best Regards,
Darshan

0 Fleenor over 2 years ago in reply to D J

TI__Mastermind 22953 points

Hello Dashan,

General IC requirements for OSPI/QSPI devices can be found in the related TRM chapter. The DDR4/LPDDR4 Controller is compatible with any JESD79-4B compliant DDR4/LPDDR4 memory IC's.

Providing the links below for starting points:

OSPI/QPSI options: https://www.digikey.com/short/fww74m2t

DDR4/LPDDR4 options: https://www.digikey.com/short/jctv92q0

Hope this helps get you started in the right direction.

Best Regards,

Zackary Fleenor
