Hi all,
Please see the attachment file
/** @file HL_sys_startup.c
* @brief Startup Source File
* @date 11-Dec-2018
* @version 04.07.01
*
* This file contains:
* - Include Files
* - Type Definitions
* - External Functions
* - VIM RAM Setup
* - Startup Routine
* .
* which are relevant for the Startup.
*/
/*
* Copyright (C) 2009-2018 Texas Instruments Incorporated - www.ti.com
*
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the
* distribution.
*
* Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
* "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
* LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
* A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
* OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
* LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
* DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
* THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
* OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*
*/
/* USER CODE BEGIN (0) */
/* USER CODE END */
/* Include Files */
#include "HL_sys_common.h"
#include "HL_system.h"
#include "HL_sys_vim.h"
#include "HL_sys_core.h"
#include "HL_esm.h"
#include "HL_sys_mpu.h"
#include "HL_errata_SSWF021_45.h"
/* USER CODE BEGIN (1) */
#include "HL_sys_selftest.h"
#include "esm_application_callback.h"
#include "sl_priv.h"
/////////////////////////****************
#include "sl_api.h"
#include "sl_types.h"
#include "HL_errata.h"
#include "HL_reg_dma.h"
#include "HL_reg_can.h"
#include "HL_reg_het.h"
#include "HL_reg_htu.h"
#include "HL_reg_mibspi.h"
#include "HL_reg_adc.h"
#include "HL_reg_efc.h"
#include "HL_reg_stc.h"
#include "HL_reg_pbist.h"
#include "HL_sys_core.h"
//////////////////////////////*************************
/* USER CODE END */
/* USER CODE BEGIN (2) */
volatile uint64 crcAtInit_VIMRAM = 0;
volatile uint64 crcAtInit_FLASH = 0;
/* USER CODE END */
/* External Functions */
/*SAFETYMCUSW 218 S MR:20.2 <APPROVED> "Functions from library" */
extern void __TI_auto_init(void);
/*SAFETYMCUSW 354 S MR:NA <APPROVED> " Startup code(main should be declared by the user)" */
extern int main(void);
/*SAFETYMCUSW 122 S MR:20.11 <APPROVED> "Startup code(exit and abort need to be present)" */
/*SAFETYMCUSW 354 S MR:NA <APPROVED> " Startup code(Extern declaration present in the library)" */
extern void exit(int _status);
//////////////////////////////*************************
extern void muxInit(void);
/* USER CODE BEGIN (3) */
#define STC_ENABLE 1
#define PBIST_ROM_ENABLE 1
#define PBIST_L2RAM_ENABLE 1
#define PBIST_PERIPHRAM_ENABLE 1
#define PBIST_VIM_ENABLE 1
#define L2RAMECCCHECK_ENABLE 0 //fail
#define FLASHECCCHECK_ENABLE 1
#define PERIPHRAMECCCHECK_ENABLE 1
#define EFUSETEST_ENABLE 0 // fail
#define CCMR5TEST_ENABLE 1
//////////////////////////////*************************
/* USER CODE END */
/* USER CODE BEGIN (3) */
void afterSTC(void);
//SL_ResetReason resetReason; /* Reset reason */
/* USER CODE END */
void handlePLLLockFail(void);
/* Startup Routine */
void _c_int00(void);
#define PLL_RETRIES 5U
/* USER CODE BEGIN (4) */
extern uint32 ulHighHandlerLoadStart;
extern uint32 ulHighHandlerLoadEnd;
extern uint32 ulHighHandlerSize;
extern uint32 ulHighHandlerStartAddr;
extern uint32 ulHighHandlerEndAddr;
SL_STC_Config stcSelfTestConfig; /* STC Configuration */
void esmCallBackFunction (uint32 grp_channel, uint32 param1, uint32 param2, uint32 param3);
/* USER CODE END */
#pragma CODE_STATE(_c_int00, 32)
#pragma INTERRUPT(_c_int00, RESET)
#pragma WEAK(_c_int00)
#if 1
void _c_int00(void)
{
register resetSource_t rstSrc;
/* USER CODE BEGIN (5) */
// SL_Init_R5Registers();
//
// /* Initialize Stack Pointers
// * The SL_Init_ResetReason API (and the correspondig HALCoGen getresetsource API) is a C function which uses stack.
// * Stack must be setup correctly before calling this function.*/
// SL_Init_StackPointers();
//
// /* Enable CPU Event Export */
// /* This allows the CPU to signal any single-bit or double-bit errors detected
// * by its ECC logic for accesses to program flash or data RAM.
// */
// /* NOTE - needs to be called on every reset */
// SL_Init_Memory(RAMTYPE_RAM);
// _SL_Init_EnableEventExport();
/* USER CODE END */
/* Reset handler: the following instructions read from the system exception status register
* to identify the cause of the CPU reset.
*/
//rstSrc = getResetSource();
rstSrc = SL_Init_ResetReason();
switch(rstSrc)
{
case POWERON_RESET:
case DEBUG_RESET:
case EXT_RESET:
case RESET_TYPE_DEBUG:
/* USER CODE BEGIN (6) */
/* USER CODE END */
/* Initialize L2RAM to avoid ECC errors right after power on */
_memInit_();
/* USER CODE BEGIN (7) */
/* USER CODE END */
/* Initialize Core Registers to avoid CCM Error */
_coreInitRegisters_();
/* USER CODE BEGIN (8) */
/* USER CODE END */
/* Initialize Stack Pointers */
_coreInitStackPointer_();
/* USER CODE BEGIN (9) */
/* USER CODE END */
/* Enable CPU Event Export */
/* This allows the CPU to signal any single-bit or double-bit errors detected
* by its ECC logic for accesses to program flash or data RAM.
*/
_coreEnableEventBusExport_();
/* USER CODE BEGIN (10) */
/* USER CODE END */
/* Check if there were ESM group3 errors during power-up.
* These could occur during eFuse auto-load or during reads from flash OTP
* during power-up. Device operation is not reliable and not recommended
* in this case. */
if ((esmREG->SR1[2]) != 0U)
{
esmGroup3Notification(esmREG,esmREG->SR1[2]);
}
/* Initialize System - Clock, Flash settings with Efuse self check */
systemInit();
vimInit();
/* USER CODE BEGIN (11) */
SL_ESM_Init(&esmCallBackFunction);
_enable_interrupt_();
mibspiInit();
canInit();
#if (PBIST_ROM_ENABLE == 1) || (PBIST_L2RAM_ENABLE == 1) || (PBIST_PERIPHRAM_ENABLE == 1)
/* Workaround for the Errata PBIST#4 */
errata_PBIST_4();
#endif
#if PBIST_ROM_ENABLE == 1
{
boolean retVal;
/* Start PBIST on STC and PBIST ROM */
retVal = SL_SelfTest_PBIST( PBIST_EXECUTE,
PBIST_RAMGROUP_01_PBIST_ROM |
PBIST_RAMGROUP_02_STC1_1_ROM_R5 |
PBIST_RAMGROUP_03_STC1_2_ROM_R5 |
PBIST_RAMGROUP_04_STC2_ROM_NHET,
PBISTALGO_TRIPLE_READ_FAST_READ |
PBISTALGO_TRIPLE_READ_SLOW_READ);
if(retVal == false){while(1);}
}
#endif
#if EFUSETEST_ENABLE == 1
{
boolean retVal;
SL_EFuse_Config config;
uint32 efcStatus;
config.numPatterns = 600u;
config.seedSignature = 0x5362F97Fu;
config.failInfo.stResult= ST_FAIL;
config.failInfo.failInfo= EFUSE_ERROR_NONE;
efcStatus = efcREG->ERR_STAT;
if(efcStatus == 0x0U)
{
/* Run Stuck At Zero Test (param2=TRUE - Wait for complete) */
retVal = SL_SelfTest_EFuse(EFUSE_SELF_TEST_STUCK_AT_ZERO, TRUE, &config);
if(retVal == false){while(1);}
if(config.failInfo.stResult == ST_PASS)
{
/* Run efuse self test (param2=TRUE - Wait for complete) */
retVal = SL_SelfTest_EFuse(EFUSE_SELF_TEST_ECC, TRUE, &config);
if(retVal == false){while(1);}
if(config.failInfo.stResult != ST_PASS)
{
/* Selftest failed - Class 2 error */
while(1);
}
}
else
{
/* Stuck At Zero test failed - Class 2 error */
while(1);
}
}
else
{
if (efcStatus == 0x15U)
{
/* Run efuse self test (param2=TRUE - Wait for complete) */
retVal = SL_SelfTest_EFuse(EFUSE_SELF_TEST_ECC, TRUE, &config);
if(retVal == false){while(1);}
if(config.failInfo.stResult != ST_PASS)
{
/* Selftest failed - Class 2 error */
while(1);
}
else
{
/* Selftest passed - Class 3 error */
while(1);
}
}
else
{
/* Class 2 error */
while(1);
}
}
}
#endif
#if PBIST_ROM_ENABLE == 1
{
SL_PBIST_FailInfo pbistStatus;
/* Wait for PBIST on ROM to complete */
while(SL_SelfTest_Status_PBIST(&pbistStatus) == FALSE);
SL_SelfTest_PBIST_StopExec();
if(pbistStatus.stResult != ST_PASS)
{
/* PBIST fail */
while(1);
}
/* Clear VIM pending interrupt request (Channel 85 - PBIST Done) */
vimREG->INTREQ2 = 0x00200000;
}
#endif
#if PBIST_L2RAM_ENABLE == 1
{
/* Run PBIST on L2RAM */
SL_SelfTest_PBIST( PBIST_EXECUTE,
PBIST_RAMGROUP_29_L2RAMW |
PBIST_RAMGROUP_30_L2RAMW,
PBISTALGO_MARCH13N_1PORT);
while((systemREG1->MSTCGSTAT & 0x1u) == 0x0u);
if ((pbistREG->FSRF0 == 0u) && (pbistREG->FSRF1 == 0u))
{
/* PBIST pass */
}
else
{
/* PBIST fail */
while(1);
}
SL_SelfTest_PBIST_StopExec();
_memInit_();
/* Clear VIM pending interrupt request (Channel 85 - PBIST Done) */
vimREG->INTREQ2 = 0x00200000;
}
#endif
#if PBIST_PERIPHRAM_ENABLE == 1
{
boolean retVal;
/* Run PBIST on dual port memories (except VIM) */
retVal = SL_SelfTest_PBIST( PBIST_EXECUTE,
PBIST_RAMGROUP_05_AWM1 |
PBIST_RAMGROUP_06_DCAN1 |
PBIST_RAMGROUP_07_DCAN2 |
PBIST_RAMGROUP_08_DMA |
PBIST_RAMGROUP_09_HTU1 |
PBIST_RAMGROUP_10_MIBSPI1 |
PBIST_RAMGROUP_11_MIBSPI2 |
PBIST_RAMGROUP_12_MIBSPI3 |
PBIST_RAMGROUP_13_NHET1 |
PBIST_RAMGROUP_16_RTP |
PBIST_RAMGROUP_18_AWM2 |
PBIST_RAMGROUP_19_DCAN3 |
PBIST_RAMGROUP_20_DCAN4 |
PBIST_RAMGROUP_21_HTU2 |
PBIST_RAMGROUP_22_MIBSPI4 |
PBIST_RAMGROUP_23_MIBSPI5 |
PBIST_RAMGROUP_24_NHET2 |
//PBIST_RAMGROUP_25_FTU | /* Enable only in TMS device */
//PBIST_RAMGROUP_26_FRAY_INBUF_OUTBUF | /* Enable only in TMS device */
PBIST_RAMGROUP_27_CPGMAC_STATE_RXADDR |
PBIST_RAMGROUP_28_CPGMAC_STAT_FIFO,
PBISTALGO_MARCH13N_2PORT);
if(retVal == false){while(1);}
}
#endif
#if L2RAMECCCHECK_ENABLE == 1
{
boolean retVal;
SL_SelfTest_Result result;
retVal = SL_SelfTest_SRAM(SRAM_ECC_ERROR_FORCING_1BIT, TRUE, &result);
if(retVal == false){while(1);}
if(result != ST_PASS)
{
/* Test fail */
while(1);
}
retVal = SL_SelfTest_SRAM(SRAM_ECC_ERROR_FORCING_2BIT, TRUE, &result);
if(retVal == false){while(1);}
if(result != ST_PASS)
{
/* Test fail */
while(1);
}
}
#endif
#if FLASHECCCHECK_ENABLE == 1
{
boolean retVal;
SL_SelfTest_Result result;
/* Flash test needs to be run from a RAM location. Copy flash test to RAM */
uint32 i;
uint32 size=(uint32)&ulHighHandlerSize;
for(i=0;i<size;i++)
{
((char *)&ulHighHandlerStartAddr)[i] =((char *)&ulHighHandlerLoadStart)[i];
}
_SL_HoldNClear_nError();
retVal = SL_SelfTest_Flash(FLASH_ECC_TEST_MODE_1BIT, TRUE, &result);
if(retVal == false){while(1);}
if(result != ST_PASS)
{
/* Test fail */
while(1);
}
retVal = SL_SelfTest_Flash(FLASH_ECC_TEST_MODE_2BIT, TRUE, &result);
if(retVal == false){while(1);}
if(result != ST_PASS)
{
/* Test fail */
while(1);
}
}
#endif
#if PBIST_PERIPHRAM_ENABLE == 1
{
SL_PBIST_FailInfo pbistStatus;
while(SL_SelfTest_Status_PBIST(&pbistStatus) == FALSE);
SL_SelfTest_PBIST_StopExec();
if(pbistStatus.stResult != ST_PASS)
{
/* PBIST fail */
while(1);
}
/* Clear VIM pending interrupt request (Channel 85 - PBIST Done) */
vimREG->INTREQ2 = 0x00200000;
/* Memory Init for MIBSPI */
mibspiREG1->GCR0 = 0x1U;
mibspiREG2->GCR0 = 0x1U;
mibspiREG3->GCR0 = 0x1U;
mibspiREG4->GCR0 = 0x1U;
mibspiREG5->GCR0 = 0x1U;
while ((mibspiREG1->FLG & 0x01000000U) == 0x01000000U)
{
}/* Wait */
mibspiREG1->MIBSPIE = 1;
mibspiREG1->PAR_ECC_CTRL = (mibspiREG1->PAR_ECC_CTRL & 0xFFFFFFF0) | 0xA;
while ((mibspiREG2->FLG & 0x01000000U) == 0x01000000U)
{
}/* Wait */
mibspiREG2->MIBSPIE = 1;
mibspiREG2->PAR_ECC_CTRL = (mibspiREG2->PAR_ECC_CTRL & 0xFFFFFFF0) | 0xA;
while ((mibspiREG3->FLG & 0x01000000U) == 0x01000000U)
{
}/* Wait */
mibspiREG3->MIBSPIE = 1;
mibspiREG3->PAR_ECC_CTRL = (mibspiREG3->PAR_ECC_CTRL & 0xFFFFFFF0) | 0xA;
while ((mibspiREG4->FLG & 0x01000000U) == 0x01000000U)
{
}/* Wait */
mibspiREG4->MIBSPIE = 1;
mibspiREG4->PAR_ECC_CTRL = (mibspiREG4->PAR_ECC_CTRL & 0xFFFFFFF0) | 0xA;
while ((mibspiREG5->FLG & 0x01000000U) == 0x01000000U)
{
}/* Wait */
mibspiREG5->MIBSPIE = 1;
mibspiREG5->PAR_ECC_CTRL = (mibspiREG5->PAR_ECC_CTRL & 0xFFFFFFF0) | 0xA;
/* Enable ECC for other RAMs */
dmaREG->DMAPCR = 0xA;
hetREG1->PCR = 0xA;
htuREG1->PCR = 0xA;
hetREG2->PCR = 0xA;
htuREG2->PCR = 0xA;
canREG1->CTL = (canREG1->CTL & 0xFFFFC3FF) | (0xA << 10);
canREG2->CTL = (canREG2->CTL & 0xFFFFC3FF) | (0xA << 10);
canREG3->CTL = (canREG3->CTL & 0xFFFFC3FF) | (0xA << 10);
canREG4->CTL = (canREG4->CTL & 0xFFFFC3FF) | (0xA << 10);
adcREG1->PARCR = 0xA;
adcREG2->PARCR = 0xA;
/* Memory Init for all RAMs (except VIM) with correct ECC */
SL_Init_Memory( RAMTYPE_DMA_RAM |
RAMTYPE_NHET1 |
RAMTYPE_HET_TU1 |
RAMTYPE_NHET2 |
RAMTYPE_HET_TU2 |
RAMTYPE_DCAN1_RAM |
RAMTYPE_DCAN2_RAM |
RAMTYPE_DCAN3_RAM |
RAMTYPE_DCAN4_RAM |
RAMTYPE_MIBSPI1_RAM |
RAMTYPE_MIBSPI2_RAM |
RAMTYPE_MIBSPI3_RAM |
RAMTYPE_MIBSPI4_RAM |
RAMTYPE_MIBSPI5_RAM |
RAMTYPE_MIBADC1_RAM |
RAMTYPE_MIBADC2_RAM );
}
#endif
#if PERIPHRAMECCCHECK_ENABLE == 1
{
// canInit();
// //
// // /* Initialise CAN SRAM */
// SL_Init_Memory(RAMTYPE_DCAN1_RAM);
// SL_Init_Memory(RAMTYPE_DCAN2_RAM);
// SL_Init_Memory(RAMTYPE_DCAN3_RAM);
// SL_Init_Memory(RAMTYPE_DCAN4_RAM);
_SL_HoldNClear_nError();
if(SL_SelfTest_CAN(CAN_ECC_TEST_MODE_1BIT, SL_DCAN1) == false)
{
while(1);
}
if(SL_SelfTest_CAN(CAN_ECC_TEST_MODE_2BIT, SL_DCAN1) == false)
{
while(1);
}
// if(SL_SelfTest_CAN(CAN_ECC_TEST_MODE_1BIT, SL_DCAN2) == false)
// {
// while(1);
// }
// if(SL_SelfTest_CAN(CAN_ECC_TEST_MODE_2BIT, SL_DCAN2) == false)
// {
// while(1);
// }
// if(SL_SelfTest_CAN(CAN_ECC_TEST_MODE_1BIT, SL_DCAN3) == false)
// {
// while(1);
// }
// if(SL_SelfTest_CAN(CAN_ECC_TEST_MODE_2BIT, SL_DCAN3) == false)
// {
// while(1);
// }
// if(SL_SelfTest_CAN(CAN_ECC_TEST_MODE_1BIT, SL_DCAN4) == false)
// {
// while(1);
// }
// if(SL_SelfTest_CAN(CAN_ECC_TEST_MODE_2BIT, SL_DCAN4) == false)
// {
// while(1);
// }
if(SL_SelfTest_DMA(DMA_ECC_TEST_MODE_1BIT) == false)
{
while(1);
}
if(SL_SelfTest_DMA(DMA_ECC_TEST_MODE_2BIT) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_1BIT, SL_MIBSPI1) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_2BIT, SL_MIBSPI1) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_1BIT, SL_MIBSPI2) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_2BIT, SL_MIBSPI2) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_1BIT, SL_MIBSPI3) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_2BIT, SL_MIBSPI3) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_1BIT, SL_MIBSPI4) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_2BIT, SL_MIBSPI4) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_1BIT, SL_MIBSPI5) == false)
{
while(1);
}
if(SL_SelfTest_MibSPI(MIBSPI_ECC_TEST_MODE_2BIT, SL_MIBSPI5) == false)
{
while(1);
}
}
#endif
#if CCMR5TEST_ENABLE == 1
{
boolean retVal;
SL_CCMR5F_FailInfo failInfo;
retVal = SL_SelfTest_CCMR5F(CCMR5F_CPUCOMP_SELF_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_CPUCOMP_ERROR_FORCING_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_CPUCOMP_SELF_TEST_ERROR_FORCING, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_VIMCOMP_SELF_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_VIMCOMP_ERROR_FORCING_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_VIMCOMP_SELF_TEST_ERROR_FORCING, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_PDCOMP_SELF_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_VIMCOMP_ERROR_FORCING_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_VIMCOMP_SELF_TEST_ERROR_FORCING, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_PDCOMP_SELF_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_PDCOMP_ERROR_FORCING_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_PDCOMP_SELF_TEST_ERROR_FORCING, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_INMCOMP_SELF_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_INMCOMP_ERROR_FORCING_TEST, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
retVal = SL_SelfTest_CCMR5F(CCMR5F_INMCOMP_SELF_TEST_ERROR_FORCING, TRUE, &failInfo);
if(retVal == false){while(1);}
if(failInfo.stResult != ST_PASS)
{
while(1);
}
}
#endif
#if PBIST_VIM_ENABLE == 1
{
boolean retVal;
SL_PBIST_FailInfo pbistStatus;
/* Start PBIST on STC and PBIST ROM */
retVal = SL_SelfTest_PBIST( PBIST_EXECUTE,
PBIST_RAMGROUP_01_PBIST_ROM |
PBIST_RAMGROUP_02_STC1_1_ROM_R5 |
PBIST_RAMGROUP_03_STC1_2_ROM_R5 |
PBIST_RAMGROUP_04_STC2_ROM_NHET,
PBISTALGO_TRIPLE_READ_FAST_READ |
PBISTALGO_TRIPLE_READ_SLOW_READ);
if(retVal == false){while(1);}
/* Wait for PBIST on ROM to complete */
while(SL_SelfTest_Status_PBIST(&pbistStatus) == FALSE);
SL_SelfTest_PBIST_StopExec();
if(pbistStatus.stResult != ST_PASS)
{
/* PBIST fail */
while(1);
}
/* Clear VIM pending interrupt request (Channel 85 - PBIST Done) */
vimREG->INTREQ2 = 0x00200000;
}
#endif
/* USER CODE END */
/* Enable IRQ offset via Vic controller */
_coreEnableIrqVicOffset_();
/* Initialize VIM table */
vimInit();
/* USER CODE BEGIN (12) */
/* USER CODE END */
/* Configure system response to error conditions signaled to the ESM group1 */
/* This function can be configured from the ESM tab of HALCoGen */
esmInit();
/* USER CODE BEGIN (13) */
#if STC_ENABLE == 1
{
SL_STC_Config stcSelfTestConfig;
stcSelfTestConfig.stcClockDiv = 2; /* STC Clock divider = 1 */
stcSelfTestConfig.intervalCount = 1; /* One interval only */
stcSelfTestConfig.restartInterval0 = TRUE; /* Start from interval 0 */
stcSelfTestConfig.timeoutCounter = 0xFFFFFFFF; /* Timeout counter*/
SL_SelfTest_STC(STC1_COMPARE_SELFCHECK, TRUE, &stcSelfTestConfig);
while(1); /* STC failed to start */
}
#endif
/* USER CODE END */
break;
case OSC_FAILURE_RESET:
/* USER CODE BEGIN (14) */
/* USER CODE END */
break;
case WATCHDOG_RESET:
/* USER CODE BEGIN (15) */
/* USER CODE END */
break;
case RESET_TYPE_CPU0:
case RESET_TYPE_CPU1:
/* USER CODE BEGIN (16) */
/* USER CODE END */
/* Initialize Core Registers to avoid CCM Error */
_coreInitRegisters_();
/* USER CODE BEGIN (17) */
/* USER CODE END */
/* Initialize Stack Pointers */
_coreInitStackPointer_();
/* USER CODE BEGIN (18) */
/* USER CODE END */
/* Enable CPU Event Export */
/* This allows the CPU to signal any single-bit or double-bit errors detected
* by its ECC logic for accesses to program flash or data RAM.
*/
_coreEnableEventBusExport_();
/* USER CODE BEGIN (19) */
#if STC_ENABLE == 1
if ((stcREG1->STCSCSCR & 0xFU) == 0xAU)
{
/* check if the self-test fail bit is set */
if ((stcREG1->STCGSTAT & 0x3U) != 0x3U)
{
/* STC self-check has failed */
while(1);
}
/* STC self-check has passed */
else
{
/* clear self-check mode */
stcREG1->STCSCSCR = 0x05U;
/* clear STC global status flags */
stcREG1->STCGSTAT = 0x3U;
/* clear ESM group1 channel 27 status flag */
esmREG->SR1[0U] = 0x08000000U;
{
SL_STC_Config stcSelfTestConfig;
stcSelfTestConfig.stcClockDiv = 0; /* STC Clock divider = 1 */
stcSelfTestConfig.intervalCount = 1; /* One interval only */
stcSelfTestConfig.restartInterval0 = TRUE; /* Start from interval 0 */
stcSelfTestConfig.timeoutCounter = 0xFFFFFFFF; /* Timeout counter*/
SL_SelfTest_STC(STC1_RUN, TRUE, &stcSelfTestConfig);
while(1); /* STC failed to start */
}
}
}
/* CPU reset caused by CPU self-test completion */
else if ((stcREG1->STCGSTAT & 0x1U) == 0x1U)
{
/* Self-Test Fail flag is set */
if ((stcREG1->STCGSTAT & 0x2U) == 0x2U)
{
/* Call CPU self-test failure handler */
while(1);
}
/* CPU self-test completed successfully */
else
{
/* clear STC global status flag */
stcREG1->STCGSTAT = 0x1U;
/* Continue start-up sequence after CPU STC completed */
}
}
/* CPU reset caused by software writing to CPU RESET bit */
else
{
/* Add custom routine here to handle the case where software causes CPU reset */
}
#endif
/* USER CODE END */
break;
case SW_RESET:
/* USER CODE BEGIN (20) */
/* USER CODE END */
break;
default:
/* USER CODE BEGIN (21) */
/* USER CODE END */
break;
}
/* USER CODE BEGIN (22) */
/* USER CODE END */
_mpuInit_();
/* USER CODE BEGIN (23) */
/* USER CODE END */
_cacheEnable_();
/* USER CODE BEGIN (24) */
/* USER CODE END */
/* USER CODE BEGIN (25) */
/* USER CODE END */
/* initialize global variable and constructors */
__TI_auto_init();
/* USER CODE BEGIN (26) */
/* USER CODE END */
/* call the application */
/*SAFETYMCUSW 296 S MR:8.6 <APPROVED> "Startup code(library functions at block scope)" */
/*SAFETYMCUSW 326 S MR:8.2 <APPROVED> "Startup code(Declaration for main in library)" */
/*SAFETYMCUSW 60 D MR:8.8 <APPROVED> "Startup code(Declaration for main in library;Only doing an extern for the same)" */
_CPU_system_mode_Switch(); // for testing mode switching
main();
/* USER CODE BEGIN (27) */
/* USER CODE END */
/*SAFETYMCUSW 122 S MR:20.11 <APPROVED> "Startup code(exit and abort need to be present)" */
exit(0);
}
/* USER CODE BEGIN (28) */
/* USER CODE END */
boolean pll1_slip_faultinject_callback1 = FALSE;
boolean pll2_slip_faultinject_callback2 = FALSE;
extern uint32 callbkParam1, callbkParam2, callbkParam3, callbkParam4, callbkParam5, callbkParam6;
/* USER CODE BEGIN (29) */
void esmCallBackFunction (uint32 grp_channel, uint32 param1, uint32 param2, uint32 param3)
{
volatile uint32 flashread = 0u;
/********************************************************************************************************/
/*all GROUP 1 errors are captured here*/
/********************************************************************************************************/
#if defined(_TMS570LC43x_) || defined(_RM57Lx_)
uint32 channel;
channel = grp_channel & 0xffffu;
if ((grp_channel & ESM_GRP1_MASK) == ESM_GRP1_MASK)
{
/* process group 1 callbacks */
if (ESM_G1ERR_DMA_ECC_SBERR == channel)
{
/* Clear flags and read error address */
BIT_SET(dmaREG->DMASECCCTRL, BIT(DMA_ECC_SBERR));
/* Clear ESM error status */
esmREG->SR7[0] = GET_ESM_BIT_NUM(ESM_G1ERR_DMA_ECC_SBERR);
dma_1bit_faultinject_callback = TRUE;
}
else if (ESM_G1ERR_DMA_ECC_UNCORR == channel)
{
/* Clear flags and read error address */
BIT_SET(dmaREG->DMAPAR, BIT(DMA_ECC_ERR));
/* Clear ESM error status */
esmREG->SR1[0] = GET_ESM_BIT_NUM(ESM_G1ERR_DMA_ECC_UNCORR);
dma_2bit_faultinject_callback = TRUE;
}
else if ((ESM_G1ERR_CAN1_ECC_SBERR == channel) ||
(ESM_G1ERR_CAN2_ECC_SBERR == channel) ||
(ESM_G1ERR_CAN3_ECC_SBERR == channel) ||
(ESM_G1ERR_CAN4_ECC_SBERR == channel))
{
/* Clear ESM error status */
esmREG->SR7[0] = GET_ESM_BIT_NUM(channel);
can_1bit_faultinject_callback = TRUE;
}
else if ((ESM_G1ERR_CAN1_ECC_UNCORR == channel) ||
(ESM_G1ERR_CAN2_ECC_UNCORR == channel) ||
(ESM_G1ERR_CAN3_ECC_UNCORR == channel))
{
/* Clear ESM error status */
esmREG->SR1[0] = GET_ESM_BIT_NUM(channel);
can_2bit_faultinject_callback = TRUE;
}
else if ((ESM_G1ERR_CAN4_ECC_UNCORR == channel))
{
esmREG->SR4[0] = GET_ESM_BIT_NUM(channel);
can_2bit_faultinject_callback = TRUE;
}
else if ((ESM_G1ERR_SPI1_ECC_SBERR == channel) ||
(ESM_G1ERR_SPI2_ECC_SBERR == channel) ||
(ESM_G1ERR_SPI3_ECC_SBERR == channel) ||
(ESM_G1ERR_SPI4_ECC_SBERR == channel) ||
(ESM_G1ERR_SPI5_ECC_SBERR == channel))
{
/* Clear ESM error status */
esmREG->SR7[0] = GET_ESM_BIT_NUM(channel);
mibspi_1bit_faultinject_callback = TRUE;
}
else if ((ESM_G1ERR_SPI1_ECC_UNCORR == channel) ||
(ESM_G1ERR_SPI3_ECC_UNCORR == channel) ||
(ESM_G1ERR_SPI5_ECC_UNCORR == channel))
{
/* Clear ESM error status */
esmREG->SR1[0] = GET_ESM_BIT_NUM(channel);
mibspi_2bit_faultinject_callback = TRUE;
}
else if ((ESM_G1ERR_SPI2_ECC_UNCORR == channel) ||
(ESM_G1ERR_SPI4_ECC_UNCORR == channel))
{
esmREG->SR4[0] = GET_ESM_BIT_NUM(channel);
mibspi_2bit_faultinject_callback = TRUE;
}
else if (ESM_G1ERR_CCMR5_SELFTEST == channel)
{
esmREG->SR1[0] = GET_ESM_BIT_NUM(channel);
/* no need to set the flag cccmr5f_errorforcing_app_callback, as the
* flag is already set by the G2 error */
}
else if (ESM_G1ERR_PSCON_COMPARE_ERR == channel)
{
/*clear nerror and esm flags*/
esmREG->SR4[0] |= GET_ESM_BIT_NUM(ESM_G1ERR_PSCON_COMPARE_ERR);
esmREG->SR4[0] |= GET_ESM_BIT_NUM(ESM_G1ERR_PSCON_SELTEST_ERR);
_SL_HoldNClear_nError();
pscon_errorforcing_app_callback = TRUE;
}
else if (ESM_G1ERR_PSCON_SELTEST_ERR == channel)
{
/*clear nerror and esm flags*/
esmREG->SR4[0] |= GET_ESM_BIT_NUM(ESM_G1ERR_PSCON_SELTEST_ERR);
_SL_HoldNClear_nError();
pscon_selftest_errorforcing_app_callback = TRUE;
}
else if(ESM_G1ERR_PLL1_SLIP == channel)
{
callbkParam1 = param1 & (uint32)0x1u;
callbkParam2 = param1 & (uint32)0x2u;
esmREG->SR1[0] |= GET_ESM_BIT_NUM(ESM_G1ERR_PLL1_SLIP);
pll1_slip_faultinject_callback1 = TRUE;
}
else if(ESM_G1ERR_PLL2_SLIP == channel)
{
callbkParam1 = param1 & (uint32)0x1u;
callbkParam2 = param1 & (uint32)0x2u;
esmREG->SR4[0] |= GET_ESM_BIT_NUM(ESM_G1ERR_PLL2_SLIP);
pll2_slip_faultinject_callback2 = TRUE;
}
}
if ((grp_channel & ESM_GRP2_MASK) == ESM_GRP2_MASK)
{
/* process group 2 call-backs */
if ((ESM_G2ERR_CCMR5_CPUCOMP_ERR == channel) ||
(ESM_G2ERR_CCMR5_VIMCOMP_ERR == channel) ||
(ESM_G2ERR_CCMR5_INMCOMP_ERR == channel) ||
(ESM_G2ERR_CCMR5_PDCOMP_ERR == channel))
{
esmREG->SSR2 = GET_ESM_BIT_NUM(channel);
/* Clear nError */
_SL_HoldNClear_nError();
cccmr5f_errorforcing_app_callback = TRUE;
}
}
#endif
}
#endif
/* USER CODE END */
/* USER CODE END */

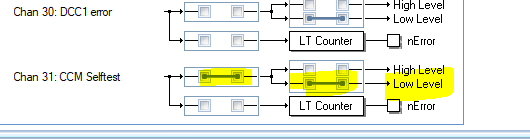

In this file we are using safeTI dignostic features but we are facing some issue here
In line no. 634 --> retVal = SL_SelfTest_CCMR5F(CCMR5F_CPUCOMP_SELF_TEST_ERROR_FORCING, TRUE, &failInfo); this function is failing.
It is failing inside static void sl_esm_high_intr_handler(void) function in sl_esm.c file.
inside this function
esmOffH = (uint8) esmREG->IOFFHR; "value of this register is 0x24"
I think the value of above register is not correct out if range "35-32 = 3 which is not in switch case ".
Please see and let me know why this ECC test case is failing and also see my attached file.
Thanks
Pankaj Verma
