MSPM0G3507: Power supply of analog peripherals such as internal ADC and internal OPA

Hi Eason,

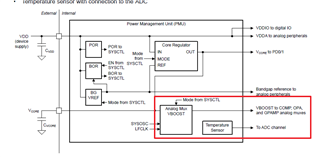

Thank you for the reply. I understood that VBOOST circuit supports the power supply for OPA, COMp and GPAMP. But I was not able to find out the exact VBOOST voltage. The maximum VBOOST voltage can be VDD, Is this understanding correct?

Best regards,

Shunsuke Yamamoto

I will try to find the answer. However, I can't find the information in the internal materials. Please wait for 1 or 2 days.

Anyway, it will not avoid you to use the analog peripherals.

Hi Eason,

Thank you for your investigation. May I know the update?

Best regards,
Shunsuke Yamamoto

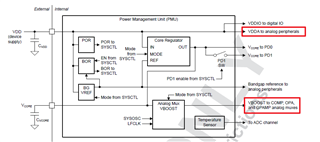

Vboost is a constant voltage when set in always-on mode (3.6V) or follows VDD when set in on-demand mode. However OPA voltage supply is VDD, but supported by Vboost charge-pump in RRI=1 mode to support rail operation.

Hope this can answer your questions.

Hi Zhou-san,

Thank you for the reply. I understood that Vboost voltage will be different in 2 modes. Vboost voltage is 3.6V(always-on mode) and VDD(on-demand mode).

How about the Vboost voltage when BUFCONFIG is set to 1? When BUFCONFIG is 1, The minimum supply voltage becomes 1.62V, so I suspect the minimum supply voltage of analog peripherals also becomes lower than VDD voltage.

Best regards,

Shunsuke Yamamoto
