MCU-PLUS-SDK-AM243X: Relationship between ECC endpoints and RAM

Hayato Waki

Prodigy 130 points

Part Number: MCU-PLUS-SDK-AM243X

HI,

I am using the AM243x MCU+ SDK (08.03.00).

Let me ask a question about the ECC setup.

Q1: Am I correct in understanding that ECC endpoint ID N corresponds to ECC RAM N?

What is the correspondence between the modules in Table 12-5035 and ECC RAM N? Please let me know if you have a list.

Q2:Regarding the following statement in TRM. Does the ECC_VECTOR register refer to the ECC_VECTOR register in Figure 12-2639?Other modules also have an ECC_VECTOR register, as shown in Figure 6-57.How should it be used?

"When this ID is written to the ECC_VECTOR[10-0] ECC_VECTOR field the corresponding endpoint is selected either for control or for status reading." (TRM 12.6.4.3.2 ECC Aggregator Register Groups)

Q3:Do you have a sample using ECC?Please give me a sample if you have one.

Best regards,

H.WAKI

over 2 years ago

0 QJ Wang over 2 years ago

TI__Guru**** 196346 points

Hi WAKI,

Are the table numbers mentioned in your message tables used in TRM Rev-G (SPRUIM2G, REVISED JULY 2023)? I will study your questions and provide my feedback by tomorrow.

0 Hayato Waki over 2 years ago in reply to QJ Wang

Prodigy 130 points

HI Wang,

>>Are the table numbers mentioned in your message tables used in TRM Rev-G (SPRUIM2G, REVISED JULY 2023)?
Yes, I am referring to TRM Rev-G.

Best regards,

H.WAKI

0 QJ Wang over 2 years ago

TI__Guru**** 196346 points

Hayato Waki said:
Q1: Am I correct in understanding that ECC endpoint ID N corresponds to ECC RAM N?

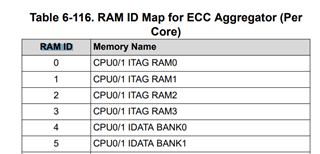

The Table 12-5035 lists the modules or subsystems whose RAM is ECC protected. Those RAMs are partitioned into multiple banks or groups. The ECC RAM ID corresponds to the RAM bank or RAM group of the module or sub-system's RAM.

0 QJ Wang over 2 years ago in reply to QJ Wang

TI__Guru**** 196346 points

Hi WAKI,

I am checking another two questions, and provide my feedback soon. Sorry for late response.

0 Hayato Waki over 2 years ago in reply to QJ Wang

Prodigy 130 points

HI Wang,

Thank you for your response.

About Q1.
Where are the ECC RAM ID and ECC endpoint ID defined in the TRM? I would like to know the definition of ECC endpoint ID in order to finally use the ECC.
