Emulation and Trace Headers Technical Reference Manual Help

Hello Karla,

Please indicate the processor you are using.

Thank you,

~Leonard

AM2432BSFFHIALVR

Karla,

Note that TI 20-Pin pinout has been made obsolete and that Compact TI 20-Pin is the preferred "TI" Pinout. This pinout is different from the ARM 20-Pin pinout, both by the signal routing and by the physical connector.

Compact TI 20-Pin header: Features 2 rows of 10 pins each, 0.05" (1.27mm) pin pitch, 0.10" (2.54mm) row pitch. Pin 6 is keyed.

ARM 20-pin header: Features 2 rows of 10 pins each, 0.05" (1.27mm) pin and row pitch.

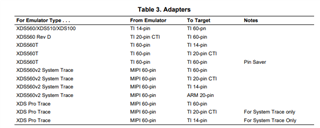

The XDS560v2 System Trace debug probe comes with a 60-pin MIPI header and would require an adapter for either of the 20 pin formats.

Do you need to support Trace? What requirements are you trying to meet with the debugger? Do you need to use the 60-Pin MIPI header?

Here are some helpful links with more information about JTAG, Debug Probes, and the headers:

• https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_jtag_connectors.html#pinout
• https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds_target_connection_guide.html
• https://www.ti.com/tool/TMDSEMUPROTRACE
• Designing for JTAG Emulation Reference Guide
• XDS560 Emulator TRM

Regards,

Erik
