MSPM0L1306: I am facing issue in UART-LIN

Hi Team,

can anyone Please help regarding this

Hi santhosh,

First of all, do you check RX line has the frame data when the host send the signal to the NVC7428, I want to make sure there is no issue with external component. Also with the EN-Enable signal.

As for the hardware connection, it seems no issue.

B.R.

Sal

Hi Sal,

Thank you so much for the reply,I'll check and update you today.

Hi Sal,

I am not observing any frame data in Tx line itself from host( MSPM0L1306)

I flashed this example code Sal

C:\ti\mspm0_sdk_1_20_00_05\examples\nortos\LP_MSPM0L1306\lin\commander\lin_commander can you help regarding this

Hi Team,

can anyone Please help regarding this

Hi santhosh,

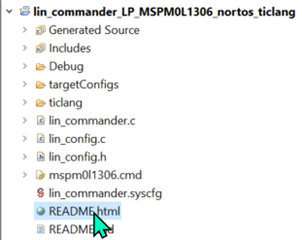

One more thing I want to check, do you follow the readme guide in the code example:

There are some neccessary steps for using the example code.

B.R.

Sal

Hi Sal,

yes I am following Sal

If I connect logic analyzer in TX pin will i able to see the frame?

why because I am not able see the frame

I connected Tx pin from MSP using usb to ttl in serial mode we not receiving any data

we need to connect any pull-up resistor?

we have any wakeup pin?

can you Please help me ASAP

Hi santhosh,

It should be able to see the frame when you press the S1/S2 button in TX.

I will check the code example and give you some feedback within a day. Thanks for your patience.

B.R.

Sal

Hi Sal,

Thank you so much for the reply,

• To use UART on boosterpack connector:
  J17 2:3: Connects UART RX to J1_3
• To use UART on boosterpack connector:
  J16 2:3: Connects UART TX toJ1_4

After changing this jumper now I am able to observe frame in logic analzyzer.

now i have follow this connect right?

Connect the LIN Commander to a LIN BoosterPack with the following connections:

• Commander GND -> BoosterPack GND
• Commander LIN_ENABLE -> BoosterPack LIN_EN
• Commander TX -> BoosterPack UATX (LIN TX)   NVC7428-TX
• Commander RX -> BoosterPack UARX (LIN RX)  NVC7428-RX

Hi santhosh,

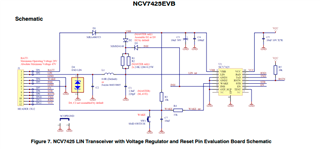

Yes, you should connect the lin commander with NVC7428 EVM, and then you should connect the LIN bus with Network Analyzer to get frame.

B.R.

Sal

Thank you sal,Sal one doubt we need to connect any pull-up resistor and wake-up pin ?

• Commander GND -> BoosterPack GND
• Commander LIN_ENABLE -> BoosterPack LIN_EN
• Commander TX -> BoosterPack UATX (LIN TX)   NVC7428-TX
• Commander RX -> BoosterPack UARX (LIN RX)  NVC7428-RX only these connection is required right

Hi santhosh,

santhosh prem said:

• Commander GND -> BoosterPack GND
• Commander LIN_ENABLE -> BoosterPack LIN_EN
• Commander TX -> BoosterPack UATX (LIN TX)   NVC7428-TX
• Commander RX -> BoosterPack UARX (LIN RX)  NVC7428-RX only these connection is required right

Yes, to test lin module, MCU will output a high signal on enable pin, and then transmit the data in Tx/Rx line.

If you want use MCU reset LIN transcever, then you can connect a gpio which is set as Hi-Z ouput to RSTN.

santhosh prem said:

Thank you sal,Sal one doubt we need to connect any pull-up resistor and wake-up pin ?

It depends on how NVC7428 work, no relationship with MCU.

B.R.

Sal

Hi Sal

Finally issue is resolve after jumper connection. Thank you so much for the  support

But I have doubt we have any LDF file for these two example commander and responder

can you Please help me regarding this

Hi Sal,

Does MSPM0L1306 provide auto baud functionality for UART-LIN? can you help me regarding this

Hi sal and team,

can you help regarding auto baud rate in MSPM0L1306

Thank you very much Sal

Regarding LDF for example code can you please help me on that

Hi Sal and Team

I am able to observe the LIN frame format in the scope, but when I connect to CANoe-LIN, the data enters sleep mode, and I don’t know why. Can you help me with this? ASAP

I also attached ldf for LIN Commander example can any one review it is correct Please

LIN_description_file;
LIN_protocol_version = "2.0";
LIN_language_version = "J2602_3_1.0";
LIN_speed = 19.2 kbps;

Nodes {
Master: Tx, 10 ms, 0.1 ms;
Slaves: Rx ;
}

Signals {
Data1: 7, 0, Tx, Rx ;
Data2: 7, 0, Tx, Rx ;
Data3: 7, 0, Tx, Rx ;
Data4: 7, 0, Tx, Rx ;
Data5: 7, 0, Tx, Rx ;
Data6: 7, 0, Tx, Rx ;
Data7: 7, 0, Tx, Rx ;
Data8: 7, 0, Tx, Rx ;
Data9: 7, 0, Tx, Rx ;
Data10: 7, 0, Tx, Rx ;

}

Frames {

Transmit: 57, Tx, 8 {

Data1, 8 ;
Data2, 16 ;
Data3, 24 ;
Data4, 32;
Data5, 40;
Data5, 48;
Data6, 56;
Data7, 64;
Data8,72;
Data9, 80;
Data10,88;


}
}

Schedule_tables {
LINConfig1 {

Transmit delay 18 ms ;
}

}

Hi santhosh,

I am not familar with the ldf setting, sorry for not help much.

Here are my guesses：

Is the ldf setting correctly converted into a format that matches the code example frame header? If use commander example, according to readme.html, it should transmit first and then recieve the data.

You can check which state machine the routine stopped in debug mode to check the root cause.

B.R.

Sal
