TMS570LS3137: Cant find ETB in ETM

Devendra Gupta

Part Number: TMS570LS3137

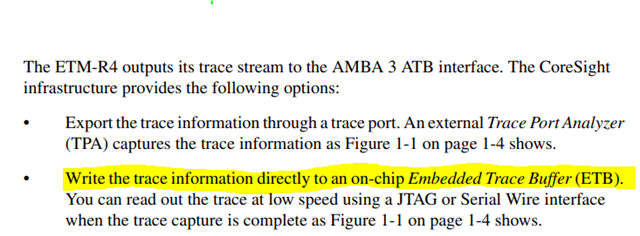

I am trying to understand ETM interface in TMS570LS3137. The manual doesn't describe much and ask to refer ETM-R4 specification. Looking at ETM-R4 specification, I found following.

On some other older posts i see that TMS570 does not have ETB. If true why this deviation, what am i missing? If not, whats the size and where is it mentioned in TMS570 reference manual.

Also is there any application note which specifically talks about the ETM interface of TMS570?

Thankyou.

over 1 year ago

0 jagadish gundavarapu over 1 year ago

TI__Guru 69891 points

Hi Devendra,

Yes, the TMS570LS3137 does includes ETM.

(+) TMS570LS1114: TMS570LS1114 and ETM/ETB support - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

To learn connectivity, refer below thread:

(+) RM48L952: We are Using Specturm Digital XDS560V2 STM USB Emulator with our Custom Board with ETM Interface to RM48L952 I get the error Problem of Trace Analyzer on Cortex R4 - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

Thanks & regards,
Jagadish.

0 Devendra Gupta over 1 year ago in reply to jagadish gundavarapu

Prodigy 150 points

Hi Jagadish

Thanks for your reply, but i guess you did not fully go through my question. I know TMS570LS3137 has ETM, i am asking about ETB. Please go through my question again.

Thanks

0 jagadish gundavarapu over 1 year ago in reply to Devendra Gupta

TI__Guru 69891 points

Hi Devendra,

Apologies for the delay in my response, i need to discuss this issue with my senior colleague who is on the vacation till JAN1st. So please understand it and give some more time to resolve this issue.

--
Thanks & Regards,
Jagadish.

0 QJ Wang over 1 year ago in reply to jagadish gundavarapu

TI__Guru**** 196416 points

Hi Devendra,

The ETB is not supported.

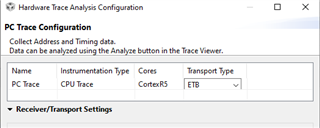

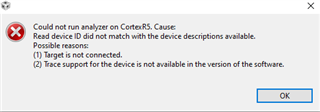

If ETB is selected for tracing, I get an error message:

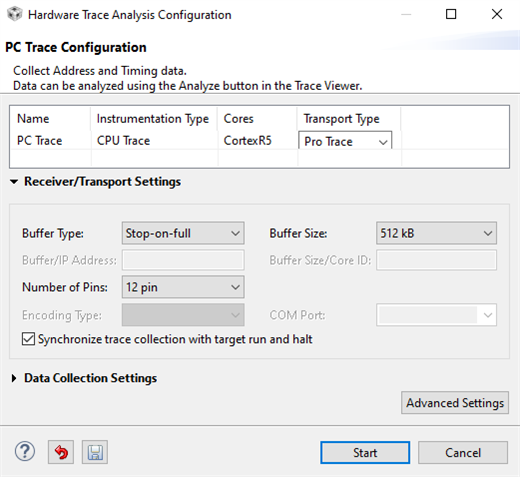

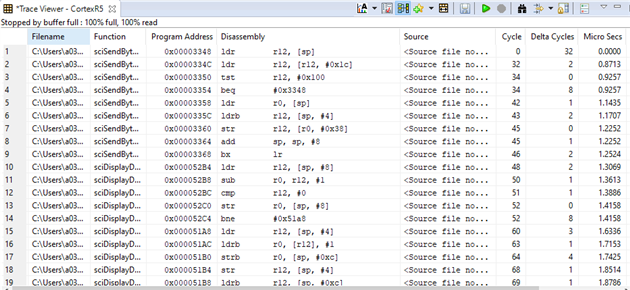

I am using xds560V2 Trace pro. The trace pro is supported:

0 Devendra Gupta over 1 year ago in reply to QJ Wang

Prodigy 150 points

Thanks Mr. Wang, Sorry for getting back late, i also tried and have the same behaviour. But my question is why TMS has deviation with the ETM-R4 specification. If there is a deviation where it is mentioned in the manual.

+1 QJ Wang over 1 year ago in reply to Devendra Gupta

TI__Guru**** 196416 points

On ARM Cortex-R4, the ETM trace data stream is either stored in an on-chip memory buffer (ETB) or exported to an external tool using a trace port (TPIU).
