AM2634: CAN driver drops frames while reception MCAL version 09.00.00

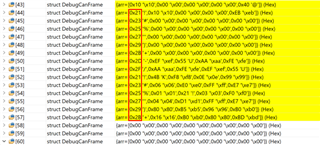

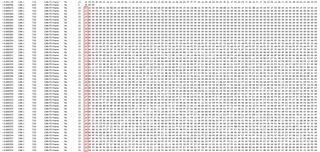

Hi Afifi,

Are you using FIFO or buffer to receive CAN messages?

BR,

Sunil

Hello,
Here is the configuration:

/* ======================================================================
*   Copyright (C) 2022-2023 Texas Instruments Incorporated
*
*   All rights reserved. Property of Texas Instruments Incorporated.
*   Restricted rights to use, duplicate or disclose this code are
*   granted through contract.
*
*   The program may not be used without the written permission
*   of Texas Instruments Incorporated or against the terms and conditions
*   stipulated in the agreement under which this program has been
*   supplied.
* ==================================================================== */
 /***************************************************************************
  Project: lgit
  Date   : 2023-11-08 16:26:27

  This file is generated by EB Tresos
  Do not modify this file, otherwise the software may behave in unexpected way.

 *****************************************************************************/

/*
 * Module switch
 */
#define CAN_PBCFG_SOURCE
/**********************************************************************************************************************
 *  INCLUDES
 *********************************************************************************************************************/
 #include "Can.h"
 #include "Can_Cfg.h"

/**********************************************************************************************************************
 *  VERSION CHECK
 *********************************************************************************************************************/

/** \brief Can configuration Major Version */
#define CAN_PBCFG_C_MAJOR_VERSION           (9U)
/** \brief Can configuration Minor Version */
#define CAN_PBCFG_C_MINOR_VERSION           (0U)
/** \brief Can configuration Patch Version */
#define CAN_PBCFG_C_PATCH_VERSION           (0U)

/*  Version checking  */
 #if (   (CAN_SW_MAJOR_VERSION != (9U))||(CAN_SW_MINOR_VERSION != (0U)))
  #error "Version numbers of Can_PBcfg.c and Can.h are inconsistent!"
#endif
#if (   (CAN_CFG_MAJOR_VERSION != (9U))||(CAN_CFG_MINOR_VERSION != (0U)))
  #error "Version numbers of Can_PBcfg.c and Can_Cfg.h are inconsistent!"
#endif
/**********************************************************************************************************************
 *  GLOBAL DATA
 *********************************************************************************************************************/
#define CAN_START_SEC_CONFIG_DATA
#include "Can_MemMap.h"




/* Baud Rate Structure for all configsets */
static Can_BaudConfigType
    CanConfigSet_CanController_CAN1_CanControllerBaudrateConfig =
{
    500U,      /* in Kbps */
    20U,       /* Prop Segement value */
    14U,          /* Phase Segment 1 */
    5U,          /* Phase Segment 2 */
    1U, /* Sync jump width */
    40U, /* Sum of all timing parameters */
    4U,   /* Controller BRP value for Baud */
	 /* Data phase Baudrate */
    {
        2000U,     /* in Kbps */
        5U,        /* Prop Segement value */
        3U,           /* Phase Segment 1 */
        1U,           /* Phase Segment 2 */
        1U,  /* Sync jump width */
        10U, /* Sum of all timing parameters */
        4U,   /* Controller BRP value for Baud */
        14U, /* Specifies the Transceiver Delay Compensation Offset */
        (boolean)TRUE, /* Specifies if the bit rate switching shall be used */
    }
};

/*List of the Baudrate structures */
static Can_BaudConfigType
    *CanConfigSet_CanController_CAN1_BaudRateConfigList[]=
{
    &CanConfigSet_CanController_CAN1_CanControllerBaudrateConfig,
};


/* Controller structure defined here for all config sets */
static Can_ControllerType
    CanConfigSet_CanController_CAN1 =
{
    &CanConfigSet_CanController_CAN1_CanControllerBaudrateConfig,  /* pointer to default Baud structure */
    CanConfigSet_CanController_CAN1_BaudRateConfigList,  /* List of available Baudrate structs */
};

/*List of the Controller structures */
static Can_ControllerType
    *CanConfigSet_CanController_List[]=
{
    &CanConfigSet_CanController_CAN1,
};


static Can_HwFilterType
    CanConfigSet_CanHardwareObject_FD_Rx_Functional_CAN1_CanHwFilter_0 =
{
    2047U,  /*CanHwFilterCode*/
    2047U,  /*Filter Mask*/
};
static Can_HwFilterType
    CanConfigSet_CanHardwareObject_FD_Rx_Physical_CAN1_CanHwFilter_0 =
{
    1821U,  /*CanHwFilterCode*/
    2047U,  /*Filter Mask*/
};

static Can_HwFilterType
    *CanConfigSet_CanHardwareObject_FD_Rx_Functional_CAN1_HwFilterConfigList[]=
{
    &CanConfigSet_CanHardwareObject_FD_Rx_Functional_CAN1_CanHwFilter_0,
};
static Can_HwFilterType
    *CanConfigSet_CanHardwareObject_FD_Rx_Physical_CAN1_HwFilterConfigList[]=
{
    &CanConfigSet_CanHardwareObject_FD_Rx_Physical_CAN1_CanHwFilter_0,
};
/* All the Mailbox objects(MB's) will be defined here for all config sets */

static Can_MailboxType
    CanConfigSet_CanHardwareObject_FD_Tx_CAN1 =
{
    0U,  /*  CanHandleType 0=Full, 1=Basic */
    0U,  /* CanIdType 0=standard 1=Extended 2=Mixed*/
    0U,  /* HwHandle i.e Mailbox - Hw object in the controller */
    1U,   /* Length of the Mailbox */
    CAN_MAILBOX_DIRECTION_TX,  /* CanObjectType - Direction of Mailbox*/
    &CanConfigSet_PC_CanController_CAN1,  /* Controller */
    NULL_PTR,  /* List of HW Filter structs */
    0U,   /* Hw Filter Count */
    204U,   /* Padding value for CAN FD message */
    (boolean)FALSE,   /* CanHardwareObjectUsesPolling */
    (boolean)FALSE,  /* CanTriggerTransmitEnable */
	};

static Can_MailboxType
    CanConfigSet_CanHardwareObject_FD_Rx_Functional_CAN1 =
{
    0U,  /*  CanHandleType 0=Full, 1=Basic */
    0U,  /* CanIdType 0=standard 1=Extended 2=Mixed*/
    0U,  /* HwHandle i.e Mailbox - Hw object in the controller */
    1U,   /* Length of the Mailbox */
    CAN_MAILBOX_DIRECTION_RX,  /* CanObjectType - Direction of Mailbox*/
    &CanConfigSet_PC_CanController_CAN1,  /* Controller */
    CanConfigSet_CanHardwareObject_FD_Rx_Functional_CAN1_HwFilterConfigList,  /* List of HW Filter structs */
    1U, /* Hw Filter Count */
    204U,   /* Padding value for CAN FD message */
    (boolean)FALSE,   /* CanHardwareObjectUsesPolling */
	    (boolean)FALSE,   /* CanTriggerTransmitEnable */
};

static Can_MailboxType
    CanConfigSet_CanHardwareObject_FD_Rx_Physical_CAN1 =
{
    0U,  /*  CanHandleType 0=Full, 1=Basic */
    0U,  /* CanIdType 0=standard 1=Extended 2=Mixed*/
    1U,  /* HwHandle i.e Mailbox - Hw object in the controller */
    1U,   /* Length of the Mailbox */
    CAN_MAILBOX_DIRECTION_RX,  /* CanObjectType - Direction of Mailbox*/
    &CanConfigSet_PC_CanController_CAN1,  /* Controller */
    CanConfigSet_CanHardwareObject_FD_Rx_Physical_CAN1_HwFilterConfigList,  /* List of HW Filter structs */
    1U, /* Hw Filter Count */
    204U,   /* Padding value for CAN FD message */
    (boolean)FALSE,   /* CanHardwareObjectUsesPolling */
	    (boolean)FALSE,   /* CanTriggerTransmitEnable */
};



/* List of the Mailboxes */
static Can_MailboxType
    *CanConfigSet_CanHardwareObject_List[] =
{
    &CanConfigSet_CanHardwareObject_FD_Tx_CAN1,
    &CanConfigSet_CanHardwareObject_FD_Rx_Functional_CAN1,
    &CanConfigSet_CanHardwareObject_FD_Rx_Physical_CAN1,
};

#define CAN_STOP_SEC_CONFIG_DATA
#include "Can_MemMap.h"

#define CAN_START_SEC_CONFIG_DATA
#include "Can_MemMap.h"

/*Can Config struct */
const struct Can_ConfigType_s CanConfigSet =
{
    CanConfigSet_CanController_List,    /* List of all controllers in this config set */
    (1U),    /* max Controllers */
    CanConfigSet_CanHardwareObject_List,
    (3U),    /* total number of mail boxes in this configset */
    .MaxBaudConfigID =
    {
        [0] = 0U
    }
};

#define  CAN_STOP_SEC_CONFIG_DATA
#include "Can_MemMap.h"
/*********************************************************************************************************************
 *  End of File: Can_PBcfg.c
 *********************************************************************************************************************/

/* ======================================================================
*   Copyright (C) 2022-2023 Texas Instruments Incorporated
*
*   All rights reserved. Property of Texas Instruments Incorporated.
*   Restricted rights to use, duplicate or disclose this code are
*   granted through contract.
*
*   The program may not be used without the written permission
*   of Texas Instruments Incorporated or against the terms and conditions
*   stipulated in the agreement under which this program has been
*   supplied.
* ==================================================================== */
 /***************************************************************************
  Project: lgit
  Date   : 2023-11-08 16:26:27

  This file is generated by EB Tresos
  Do not modify this file, otherwise the software may behave in unexpected way.

 *****************************************************************************/

/*
 * Module switch
 */
/**********************************************************************************************************************
 *  INCLUDES
 *********************************************************************************************************************/
 #include "Can.h"
 #include "Can_Cfg.h"

/**********************************************************************************************************************
 *  VERSION CHECK
 *********************************************************************************************************************/

/** \brief Can configuration Major Version */
#define CAN_CFG_C_MAJOR_VERSION           (9U)
/** \brief Can configuration Minor Version */
#define CAN_CFG_C_MINOR_VERSION           (0U)
/** \brief Can configuration Patch Version */
#define CAN_CFG_C_PATCH_VERSION           (0U)

/*  Version checking  */
 #if (   (CAN_SW_MAJOR_VERSION != (9U))||(CAN_SW_MINOR_VERSION != (0U)))
  #error "Version numbers of Can_Cfg.c and Can.h are inconsistent!"
#endif
#if (   (CAN_CFG_MAJOR_VERSION != (9U))||(CAN_CFG_MINOR_VERSION != (0U)))
  #error "Version numbers of Can_Cfg.c and Can_Cfg.h are inconsistent!"
#endif
/**********************************************************************************************************************
 *  GLOBAL DATA
 *********************************************************************************************************************/
#define CAN_START_SEC_CONFIG_DATA
#include "Can_MemMap.h"



/* Controller structure defined here for all config sets */


const struct Can_ControllerStruct_PC
    CanConfigSet_PC_CanController_CAN1 =
{
    CanConf_CanController_CanController_CAN1,      /* Id as provided by GUI */
    (boolean)TRUE,   /* Contoller is used=1 or not_used=0*/
    0x52600000U, /* Can Controller Base Address */
			(boolean)FALSE,    /* Automatic wakeup via bus activity */
    CAN_TX_RX_PROCESSING_INTERRUPT,  /* Can Rx Processing Type */
    CAN_TX_RX_PROCESSING_INTERRUPT,  /* Can Tx Processing Type */
    (boolean)TRUE,/* BusOff  TRUE = Interrupt FALSE = Polling */
	(boolean)TRUE,    /* TRUE = Interrupt FALSE = Polling */
	(boolean)TRUE,    /* Auto retransmission on Tx error Enable/Disable */
	NULL_PTR,
	    CAN_CONTROLLER_INSTANCE_MCAN0,  /* Controller Instance */
};



const struct Can_ControllerStruct_PC
    *CanConfigSet_CanController_List_PC[CAN_NUM_CONTROLLER]=
{
    &CanConfigSet_PC_CanController_CAN1,
};



/* All the Mailbox objects(MB's) will be defined here for all config sets */
static const struct Can_MailboxStruct_PC
    CanConfigSet_PC_CanHardwareObject_FD_Tx_CAN1 =
{
    CanConf_CanHardwareObject_CanHardwareObject_FD_Tx_CAN1,  /* CanObjectId - Holds handle Id */
};
static const struct Can_MailboxStruct_PC
    CanConfigSet_PC_CanHardwareObject_FD_Rx_Functional_CAN1 =
{
    CanConf_CanHardwareObject_CanHardwareObject_FD_Rx_Functional_CAN1,  /* CanObjectId - Holds handle Id */
};
static const struct Can_MailboxStruct_PC
    CanConfigSet_PC_CanHardwareObject_FD_Rx_Physical_CAN1 =
{
    CanConf_CanHardwareObject_CanHardwareObject_FD_Rx_Physical_CAN1,  /* CanObjectId - Holds handle Id */
};


/* List of the Mailboxes */
const struct Can_MailboxStruct_PC
    *CanConfigSet_CanHardwareObject_List_PC[CAN_NUM_MAILBOXES] =
{
    &CanConfigSet_PC_CanHardwareObject_FD_Tx_CAN1,
    &CanConfigSet_PC_CanHardwareObject_FD_Rx_Functional_CAN1,
    &CanConfigSet_PC_CanHardwareObject_FD_Rx_Physical_CAN1,
};


#define  CAN_STOP_SEC_CONFIG_DATA
#include "Can_MemMap.h"

/*******************************************************************************
 *  End of File: Can_Cfg.c
 ******************************************************************************/

/* ======================================================================
*   Copyright (C) 2022-2023 Texas Instruments Incorporated
*
*   All rights reserved. Property of Texas Instruments Incorporated.
*   Restricted rights to use, duplicate or disclose this code are
*   granted through contract.
*
*   The program may not be used without the written permission
*   of Texas Instruments Incorporated or against the terms and conditions
*   stipulated in the agreement under which this program has been
*   supplied.
* ==================================================================== */
 /***************************************************************************
  Project: lgit
  Date   : 2023-11-08 16:26:27
  This file is generated by EB Tresos
  Do not modify this file, otherwise the software may behave in unexpected way.

 *****************************************************************************/

/**
 *  \file     Can_Cfg.h
 *
 *  \brief    This file contains generated pre compile configuration file for
 *            CAN MCAL driver
 *
 */

/**
 *
 ******************************************************************************
 * \defgroup MCAL_CAN_CFG Can Configuration
 *
 * This files defines CAN MCAL configuration structures
 *  @{
 ******************************************************************************/

#ifndef CAN_CFG_H_
#define CAN_CFG_H_

#include "Dem.h"
#ifdef __cplusplus
extern "C" {
#endif

/** \brief CAN Config ID */
#define CAN_CFG_ID          (CAN_CFG_ID_0)

/**
*  \brief CAN Build Variant.
*   Build variants.(i.e Pre Compile,Post Build)
*/

#define CAN_VARIANT_POST_BUILD	(STD_ON)

/**
 *  \name Can Driver Configuration SW Version Info
 *
 *  Defines for CAN Driver configuration version
 *  @{
 */
/** \brief Can configuration Major Version */
#define CAN_CFG_MAJOR_VERSION           (9U)
/** \brief Can configuration Minor Version */
#define CAN_CFG_MINOR_VERSION           (0U)
/** \brief Can configuration Patch Version */
#define CAN_CFG_PATCH_VERSION           (0U)
/* @} */


/**
 *  \name Can Driver Configuration SW Version Info
 *
 *  Pre-compile switches for enabling/disabling CAN MCAL APIs
 *  @{
 */
#define CAN_VERSION_INFO_API   (STD_ON)
/*!< Enable/Disable Can_GetVersionInfo() */

#define CAN_DEV_ERROR_DETECT  (STD_OFF)
/*!< Enable/Disable DEV error detection */
#define CAN_DEINIT_API  (STD_ON)
/*!< Enable/Disable Can_DeInit() API */
#define CAN_SET_BAUDRATE_API  (STD_ON)
/*!< Enable/Disable Can_SetBaudrate() API */
#define CAN_LOOPBACK_ENABLE   (STD_OFF)
/*!< Enable/Disable Can_TestLoopBackModeEnable() */
#define CAN_WAKEUP_FUNCTIONALITY_API        (STD_ON)
/*!< Enable/Disable Can_CheckWakeup() */
#define CAN_MULTIPLEXED_TRANSMISSION_ENABLE (STD_OFF)
/*!< Enable/Disable Multiplexed Transmission */
#define CAN_TRIGGER_TRANSMIT_ENABLE (STD_OFF)
/*!< Enable/Disable CanIf_TriggerTransmit */

/**
*  \brief CAN Build Variant.
*   Build Variants.(i.e Pre-compile,Post-Build or Link time)
*/

 /*mixed mode is allowed */

#define CAN_TX_POLLING      (STD_OFF)
/*!< Enable/Disable Can_MainFunction_Write */
#define CAN_RX_POLLING      (STD_OFF)
/*!< Enable/Disable Can_MainFunction_Read */
#define CAN_BUSOFF_POLLING  (STD_OFF)
/*!< Enable/Disable Can_MainFunction_BusOff */
#define CAN_WAKEUP_POLLING  (STD_OFF)
/*!< Enable/Disable Can_MainFunction_Wakeup */
#define CAN_ECC_ENABLE      STD_OFF
/*!< Enable/Disable single bit ECC logic */
/* @} */

/*!< Maximum number of Config sets */
/*!< Max Baud rate config structs */
#define CAN_NUM_CONTROLLER          (1U)
/*!< Max number of controllers defined*/

#define CAN_NUM_MAILBOXES           (3U)
/*!< Max number of mailboxes defined*/
#define CAN_MAX_CONTROLLER          (4U)
/*!< Max number of mailboxes per controller */

#define CAN_NUM_TX_MAILBOXES 		(1U)
/*!< Total Number of TX mailboxes */

#define CAN_ISR_TYPE                (CAN_ISR_CAT1)
/*!< Enable/Disable OSEK Category 1 ISR */

/**
 *  \name Can Controller Id names
 *
 *  Defines for symbolic names for the CanControllerIds
 *  @{
 */
#define CanConf_CanController_CanController_CAN1   (0U)
/* @} */

/* @} */

#define CAN_CONTROLLER_MCAN0

/**
 *  \name Can HW Object names
 *
 *  Defines for symbolic names for the CanHardwareObjectIds
 *  @{
 */

#define CanConf_CanHardwareObject_CanHardwareObject_FD_Tx_CAN1   (0U)
#define CAN_HTRH_0         (CanConf_CanHardwareObject_CanHardwareObject_FD_Tx_CAN1)

#define CanConf_CanHardwareObject_CanHardwareObject_FD_Rx_Functional_CAN1   (1U)
#define CAN_HTRH_1         (CanConf_CanHardwareObject_CanHardwareObject_FD_Rx_Functional_CAN1)

#define CanConf_CanHardwareObject_CanHardwareObject_FD_Rx_Physical_CAN1   (2U)
#define CAN_HTRH_2         (CanConf_CanHardwareObject_CanHardwareObject_FD_Rx_Physical_CAN1)

/* @} */

/* @} */

/** \brief Counter ID for counter used to count wait ticks */
#define CAN_OS_COUNTER_ID               ((CounterType)0U)

/**
*  \brief CAN timeout - used in CAN IFCMD busy wait and Start/Stop busy wait.
*   Specifies the maximum time for blocking function until a timeout is detected.
*   Unit is milli seconds.
*/
#define CAN_TIMEOUT_DURATION            (65000U)



/* DEM Error Definitions */
/* DEM Error Codes */
/** \brief No event error code */
#define DemConf_DemEventParameter_CAN_DEM_NO_EVENT (0xFFFFU)
#define CAN_DEM_NO_EVENT DemConf_DemEventParameter_CAN_DEM_NO_EVENT

#ifndef CAN_E_HARDWARE_ERROR
/** \brief Hardware failed */
#define CAN_E_HARDWARE_ERROR          (CAN_DEM_NO_EVENT)
#endif

/* ========================================================================== */
/*                         Structures and Enums                               */
/* ========================================================================== */

/**
 * \brief Can Mailbox direction enum
 */
typedef enum
{
    CAN_CONTROLLER_INSTANCE_MCAN0 = 0x0U,
    /**< MCAN0 Controller Instance */
    CAN_CONTROLLER_INSTANCE_MCAN1 = 0x1U,
    /**< MCAN1 Controller Instance */
    CAN_CONTROLLER_INSTANCE_MCAN2 = 0x2U,
    /**< MCAN2 Controller Instance */
    CAN_CONTROLLER_INSTANCE_MCAN3 = 0x3U
    /**< MCAN3 Controller Instance */
} Can_ControllerInstance;


/** \brief CAN Configuration struct declaration */
extern const struct Can_ConfigType_s CanConfigSet;

extern const struct Can_ControllerStruct_PC CanConfigSet_PC_CanController_CAN1;


/** \brief CAN Controller Pre Compile Configuration List */
extern const struct Can_ControllerStruct_PC
    *CanConfigSet_CanController_List_PC[CAN_NUM_CONTROLLER];

/** \brief CAN Mailbox Pre Compile Configuration List */
extern const struct Can_MailboxStruct_PC
    *CanConfigSet_CanHardwareObject_List_PC[CAN_NUM_MAILBOXES];


#ifdef __cplusplus
}
#endif

#endif /*CAN_CFG_H__*/

/* @} */
/**********************************************************************************************************************
 *  END OF FILE: Can_Cfg.h
 *********************************************************************************************************************/

Hi Afifi,

As you are using buffer to receive 0x71D message and the frames sent in interval with ~0ms, I suggest you to create 1 more RX mailbox object with HwObjectCount > 1 and point to same HwList CanConfigSet_CanHardwareObject_FD_Rx_Physical_CAN1_HwFilterConfigList.

This will ensure messages will be received in FIFO as well and you will receive all messages.

BR,

Sunil

Hi Afifi,

Any updates on this?

BR,

Sunil
