TMDSCNCD263: tiimage creation to download bootloader into Ext flash via Uni Flash Tool

Hari krishna Kaki

Intellectual 355 points

Part Number: TMDSCNCD263
Other Parts Discussed in Thread: UNIFLASH, AWR1843BOOST, AM2634

Hello Team,

I am working for a bootloader project.

Currently, bootloader is loaded into RAM using CCS.

Now i would like to flash bootloader into external flash using Uni Flash tool.

Could you please provide any supported process document, to create bootable ti image of my application.

over 1 year ago

0 Aakash Kedia over 1 year ago

TI__Mastermind 26145 points

Hi Hari krishna Kaki,

Hari krishna Kaki said:
Now i would like to flash bootloader into external flash using Uni Flash tool.

Could you please provide any supported process document, to create bootable ti image of my application.

My understanding from your question says that you should be ramping up on understanding Secondary Bootloader - https://dev.ti.com/tirex/explore/node?node=A__AcihA9ANR54nmG9pF-hOHg__AM26X-ACADEMY__t0CaxbG__LATEST

Also a little bit more about the tools provided by MCU+ SDK - https://dev.ti.com/tirex/explore/node?node=A__AE-ozIYMUrJo3Go63N5zBQ__AM26X-ACADEMY__t0CaxbG__LATEST

If you have gone through the context and you require any specific information, please ask pointed question so I can support better.

Best Regards,
Aakash

0 Hari krishna Kaki over 1 year ago in reply to Aakash Kedia

Intellectual 355 points

Hi Aakash,

Yes, it is a SBL and want to flash it onto the ext flash.

I have gone through the documentation.

Now, i have working SBL .elf/.bin file. The file is generated outside of CCS but same compiler.

As per my understanding flashing my bin/elf will not work directly so i need to convert it to .tiimage file, correct me if i am wrong.

Demo application compiled with CCS, generates a .appimage file, similar to this SBL needs a .tiimage file.

Could you please let me know how to convert my elf/bin file to tiimage format or can flash my SBL bin file directly on ext flash using UniFlash.

*I have created a metaimge for SBL on AWR1843Boost using ImageCreator scripts from TI.

Similarly looking for AM2634.

Kind regards

Hari

+1 Aakash Kedia over 1 year ago in reply to Hari krishna Kaki

TI__Mastermind 26145 points

Hi Hari krishna Kaki,

Hari krishna Kaki said:
Could you please let me know how to convert my elf/bin file to tiimage format or can flash my SBL bin file directly on ext flash using UniFlash.

You can refer to this makefile - <SDK>/examples/drivers/boot/sbl_null/am263x-cc/r5fss0-0_nortos/ti-arm-clang/makefile

Best Regards,
Aakash

+1 Hari krishna Kaki over 1 year ago in reply to Aakash Kedia

Intellectual 355 points

Hi Askash,

Now, able to generate TI Image from BIN image.

Below sequence is used to generate

$(BOOTIMAGE_CERT_GEN_CMD) --image-bin $(BOOTIMAGE_PATH)/$(BOOTIMAGE_BIN_NAME) --core R5 --swrv 1 --loadaddr $(SBL_RUN_ADDRESS) --sign-key $(BOOTIMAGE_CERT_KEY) --out-image $(BOOTIMAGE_PATH)/$(BOOTIMAGE_NAME)

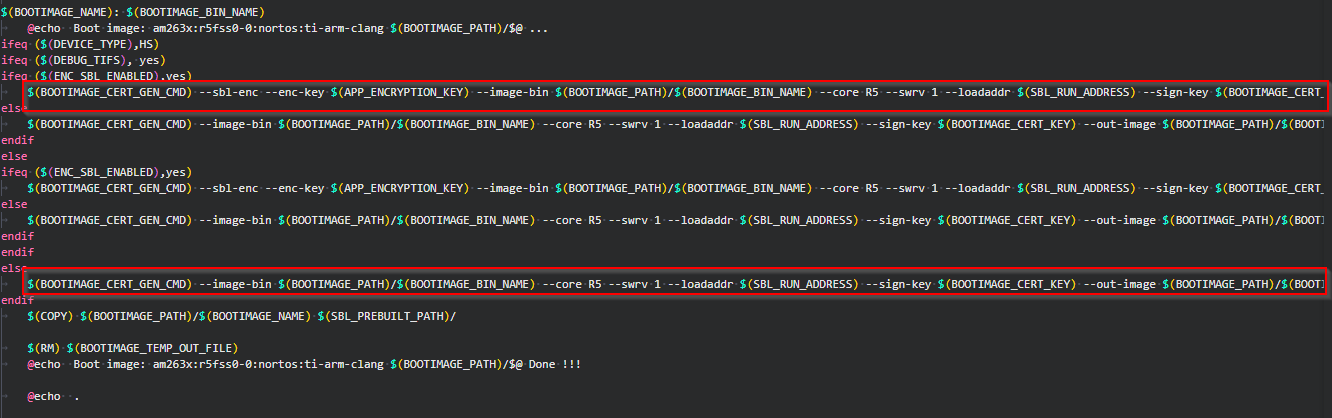

Q) which one, i have to use it from below image?

I have used only 2nd one.

0 Aakash Kedia over 1 year ago in reply to Hari krishna Kaki

TI__Mastermind 26145 points

Hi Hari,

If your device is HSFS, then you should be using second one or else in case of HSSE you should be using the other options.

I hope this helps.

Best Regards,
Aakash
