MSPM0G3507: How can I generate a differential opamp with gain = 1?

Syasya Nik
Prodigy 150 points
Part Number: MSPM0G3507

Tool/software:

Hi,

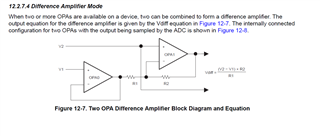

I am trying to design a differential opamp using syscfg with gain of 1.

It seems that it is multiplying V2 * (non-inverting gain x2) and V1 * (inverting gain x-1) and provides with me an incorrect Vdiff output.

How can I generate this design correctly?

Regards,

Sya
