TMDS570LS31HDK: XDS100v2 ftdi parameter

Steffen Rose
Prodigy 31 points
Part Number: TMDS570LS31HDK
Other Parts Discussed in Thread: TMS570LS3137

Tool/software:

I want to changed the serial number to connect two boards on the same PC. But at the end I removed the FTDI parameter of both boards with one klick... :-(


Now I search the correct settings to restore the onboard debug interface.


Thank you very much.

Steffen

  • 0
    TI__Guru 70241 points

    Hi Steffen,

    I don't understand how you removed FTDI parameter, can you please provide some screenshots for better understanding?

    If you are asking about the target configuration then i am attaching my target configuration file for TMS570LS3137 HDK board here.

    https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/908/TMS570LS3137.ccxml

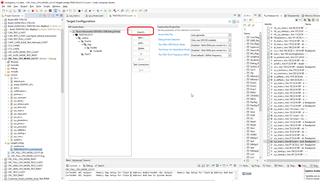

    Try to import and see:

    --
    Thanks & regards,
    Jagadish.

  • 0 in reply to jagadish gundavarapu
    Prodigy 31 points

    Thank you very much. But it seems you misunderstand me. I don't search the right configuration for the CCS, but I search the right settings for the FTDI chip as part of the onboard debugger.

    I search a file like you find here for other boards:

    https://software-dl.ti.com/ccs/esd/documents/xdsdebugprobes/emu_xds100.html#Q:_How_can_I_update_the_CPLD_on_my_XDS100v2.3F

    Thank you

    Steffen

  • 0 in reply to Steffen Rose
    TI__Guru 70241 points

    Hi Steffen,

    Steffen Rose said:
    I search a file like you find here for other boards:

    Is your issue solved with that file?

    --
    Thanks & regards,
    Jagadish.

  • 0 in reply to jagadish gundavarapu
    Prodigy 31 points

    Of course no, because there is no file for my board.

  • 0 in reply to Steffen Rose
    TI__Guru 70241 points

    Hi Steffen,

    I am not expert in JTAG related issues, so i am reassigning this to my senior QJ and hopefully he will help you soon.

    --
    Thanks & Regards,
    Jagadish.

  • 0 in reply to jagadish gundavarapu
    TI__Guru**** 197036 points

    Hi Steffen,

    You can use FT_PROG to load this xml to FTDI EEPROM. This xml contains the ID and FTDI configuration.

    Fullscreen 2273.XDS100v2.xml Download
    <?xml version="1.0" encoding="UTF-8"?>
<FT_EEPROM>
  <Chip_Details>
    <Type>FT2232H</Type>
  </Chip_Details>
  <USB_Device_Descriptor>
    <VID_PID>1</VID_PID>
    <idVendor>0403</idVendor>
    <idProduct>A6D0</idProduct>
    <bcdUSB>USB 2.0</bcdUSB>
  </USB_Device_Descriptor>
  <USB_Config_Descriptor>
    <bmAttributes>
      <RemoteWakeupEnabled>false</RemoteWakeupEnabled>
      <SelfPowered>false</SelfPowered>
      <BusPowered>true</BusPowered>
    </bmAttributes>
    <IOpullDown>true</IOpullDown>
    <MaxPower>400</MaxPower>
  </USB_Config_Descriptor>
  <USB_String_Descriptors>
    <Manufacturer>TI</Manufacturer>
    <Product_Description>Texas Instruments Inc.XDS100 Ver 2.0</Product_Description>
    <SerialNumber_Enabled>true</SerialNumber_Enabled>
    <SerialNumber>TIMCUHDK</SerialNumber>
    <SerialNumberPrefix>
    </SerialNumberPrefix>
  </USB_String_Descriptors>
  <Hardware_Specific>
    <Suspend_DBUS7>false</Suspend_DBUS7>
    <TPRDRV>0</TPRDRV>
    <Port_A>
      <Hardware>
        <UART>true</UART>
        <_245FIFO>false</_245FIFO>
        <CPUFIFO>false</CPUFIFO>
        <OPTO>false</OPTO>
      </Hardware>
      <Driver>
        <VirtualCOM>false</VirtualCOM>
        <D2XX>true</D2XX>
      </Driver>
    </Port_A>
    <Port_B>
      <Hardware>
        <UART>true</UART>
        <_245FIFO>false</_245FIFO>
        <CPUFIFO>false</CPUFIFO>
        <OPTO>false</OPTO>
      </Hardware>
      <Driver>
        <VirtualCOM>true</VirtualCOM>
        <D2XX>false</D2XX>
      </Driver>
    </Port_B>
    <IO_Pins>
      <Group_AL>
        <SlowSlew>true</SlowSlew>
        <Schmitt>true</Schmitt>
        <Drive>4mA</Drive>
      </Group_AL>
      <Group_AH>
        <SlowSlew>true</SlowSlew>
        <Schmitt>true</Schmitt>
        <Drive>4mA</Drive>
      </Group_AH>
      <Group_BL>
        <SlowSlew>true</SlowSlew>
        <Schmitt>true</Schmitt>
        <Drive>4mA</Drive>
      </Group_BL>
      <Group_BH>
        <SlowSlew>false</SlowSlew>
        <Schmitt>false</Schmitt>
        <Drive>4mA</Drive>
      </Group_BH>
    </IO_Pins>
  </Hardware_Specific>
</FT_EEPROM>

  • 0 in reply to QJ Wang
    Prodigy 31 points

    Thank you very much
