AM2634-Q1: SDL PBIST test sequence for MSS_L2_0

Sung-IL

Part Number: AM2634-Q1

Tool/software:

Dear Champs,

My customer tried to SDL PBIST test in their applicationSW, but faced hang(stuck) on below region(memoryGroupsBitMap=10u)

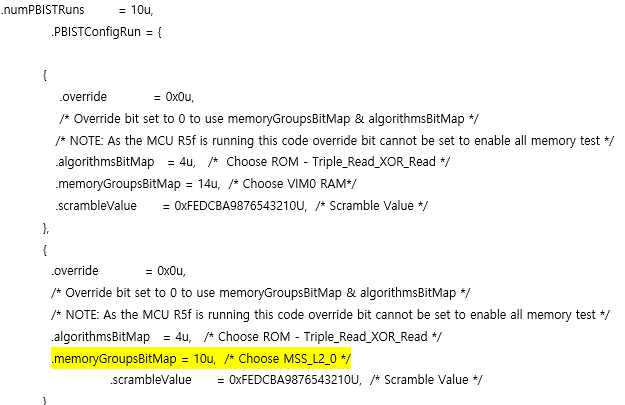

My customer just added SDL PBIST example in their applicaiton source as below.

When I checked UG, I found below comments, but I'm not sure what should check for proper state for PBIST SDL test and if L2 cache can be accessed properly.

Please let me know how they can add SDL example for PBIST on their application SW.

They are using MCU+SDK v8.5.

Thanks and Best Regards,

SI.

1 month ago

0 Vishwanath Reddy 1 month ago

TI__Mastermind 19345 points

Hi Si,

PBIST is a destructive test. When it's tested on active memory, it will destroy the contents of that memory. In this case, if your customer is using MSS_L2_0 bank and also trying to test it, it may cause the device to behave abnormally. Also MSS_L2 bank 0 and 1 are tested by ROM bootloader. You can skip testing these memories.

See PBIST For 200MHz and 400MHz R5F Core Variants in below link:
https://software-dl.ti.com/mcu-plus-sdk/esd/AM263X/latest/exports/docs/api_guide_am263x/BOOTFLOW_GUIDE.html

Thanks and Regards,
Vishwanath Reddy.

0 Sung-IL 1 month ago in reply to Vishwanath Reddy

TI__Mastermind 29610 points

Hi Vishwanath Reddy,

Thanks for your response.

Then, could you please where customer find memoryGroupsBitMap # information for each memory region?

When they checked TRM(spruj4.pdf), they found below table, but it seems this value is not same as SDL example in above.

For example, MemoryGroupbitMap of L2_0 is defined as 10 in of SDL example, but the memory group number is 15 in TRM(Table 7-7, R5 PBIST)

Could you please let me know where customer can find memoryGroupsBitMap # information for each memory region?

Thanks and Best Regards,

SI.

0 Vishwanath Reddy 1 month ago in reply to Sung-IL

TI__Mastermind 19345 points

Hi Si,

I'm checking internally for the correct information. Will provide feedback as soon as I get info.

Thanks and Regards,
Vishwanath Reddy.

+1 Vishwanath Reddy 1 month ago in reply to Vishwanath Reddy

TI__Mastermind 19345 points

Hi SI,

I have confirmed internally. Data provided in the file mcu_plus_sdk\source\sdl\pbist\v0\soc\am263x\sdl_pbist_soc.c is correct. I will raise a ticket to correct the information in TRM.

Thanks and Regards,
Vishwanath Reddy.
