AM2432: Errata i2196 fix

Tony Tang

Part Number: AM2432
Other Parts Discussed in Thread: SYSCONFIG

Tool/software:

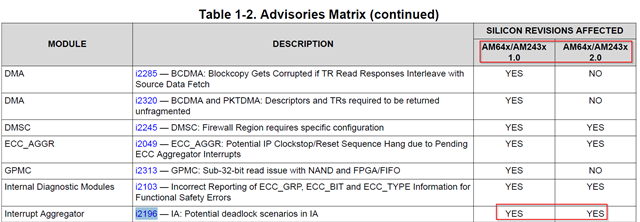

#1. IA1.1 fixed the bug, which revision device adopted IA1.1?

#2. Does MCU SDK implemented workaround? start from which SDK version?

Figure 2-1 shows the conceptual block diagram of IA 1.0. Potential loops are avoided by
adopting the policy of not allowing the counted event block to send events to the multicast
block.

#3. Why mentioned IA1.1? Is there plan to make a new PG to adopt IA1.1?

9 months ago

0 Nitika Verma 9 months ago

TI__Expert 7385 points

Hi Tony,

Our domain expert is currently out-of-office, please expect some delay in response time.

Regards,

Nitika

0 Kallikuppa Sreenivasa 8 months ago in reply to Nitika Verma

TI__Guru**** 191939 points

Hi Tony,

I missed assigning to the expert.

I have assigned the query to the expert.

Regards,

Sreenivasa

0 Christopher Roberts 8 months ago in reply to Kallikuppa Sreenivasa

TI__Genius 9460 points

Tony,

Both iterations of IA, IA 1.0 and IA 1.1, are impacted by this bug and require the workaround. There is no plan to fix via new PG. I am reviewing internally to try and understand why there are descriptions of both and if it is necessary, but these erratas are reused across devices so typically they are kept generic so they can be comprehensive of all impacted devices.

I will have to defer to SW team to comment on workaround status.

Thanks,

Chris

0 liang luo 8 months ago in reply to Christopher Roberts

Prodigy 160 points

Hi Christopher,

Any additional things that need special attention in customer application?

0 Christopher Roberts 8 months ago in reply to liang luo

TI__Genius 9460 points

Liang,

Per the errata workaround, the counted event block should not send evens to the multicast block in order to avoid this deadlock scenario.

Thanks,

Chris

0 liang luo 8 months ago in reply to Christopher Roberts

Prodigy 160 points

If there any example code?

Refer to AM243X TRM, I can only found IA in the DMSS and used for DMA. Does i2196 only involve the use of DMA?

DMA is usually used through the SYSCONFIG/SDK, so is this workaround already implemented in SDK or do we need to deal with in user code? If already in SDK ,please help to show the code in AM243X SDK10, otherwiese please provide an example.

0 Christopher Roberts 8 months ago in reply to liang luo

TI__Genius 9460 points

I will need our software team to review and comment and have reassigned the ticket to them.

Thanks,

Chris

0 liang luo 8 months ago in reply to Christopher Roberts

Prodigy 160 points

Thanks. Looking forward software team update.

0 Tushar Thakur 8 months ago in reply to liang luo

TI__Mastermind 49588 points

Hi Liango,

Thanks for your patience. I am checking this internally with the Dev team and update as soon as I hear back.

Regards,

Tushar

0 liang luo 8 months ago in reply to Tushar Thakur

Prodigy 160 points

Hi Tushar,

Is there any update?

0 Swargam Anil 7 months ago in reply to liang luo

TI__Mastermind 46736 points

Hello Liang luo,

Users don't need to worry about the IA (i2196-IA: Potential deadlock scenarios in IA.) in the MCU+SDK.

The current DMA implementation for the CPSW or other peripherals this IA deadlock issue is not applicable.

Because there is no support for Multicast events in the MCU+SDK.

Users don't need to add any workaround in the MCU+SDK and the same DMA MCU+SDK implementation can work normally without any issues.

Regards,

Anil.

0 liang luo 7 months ago in reply to Swargam Anil

Prodigy 160 points

Hi Swargam, thanks.
