MSPM0G3507: MSPM0G3507

ISRAEL BAR
Prodigy 10 points
Part Number: MSPM0G3507
Other Parts Discussed in Thread: SYSCONFIG

Tool/software:

Hi,
I'm using the MSPM0G3507 device as a power up sequencer,

the device powers up an external power supply using its GPIOs to do it sequencly  .

however, I need to add the option to put this GPIOs as tree-state (high-z) in some cases.

so, in the program they should start as OUTPUT but I need to put them some-time as input .

in the SYSCFG I see that they are defined only as OUTPUT or INPUT please advise.

  • 0
    TI__Genius 10490 points

    Hello ISRAEL,

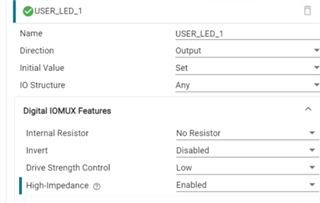

    • If you want to enable High-z state when GPIO is output state, you can enable the "High-impedance" in Sysconfig.

    you can also use the related instruction in your code to enable HIZ

    • If you want to change the GPIO from output state to input state, you need to use related instruction in your code. You need to disable output and then re-initialize the GPIO to input state.

    • If you want to change the GPIO from input to output state, you need to use related instruction in your code. You need to re-initialize the GPIO to output state and then set or clear your GPIO, then enable output.

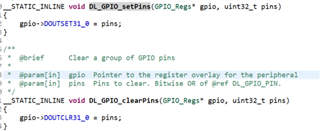

    • All the function can be found in "includes->source->ti->driverlib->dl_gpio.h". And more information about the GPIO registers, please refer to its TRM

    Best Regards,

    Janz Bai
