ADS8588SEVM-PDK: LP-AM243 /ADS8588SEVM-PDK

thien tran

Part Number: ADS8588SEVM-PDK

Tool/software:

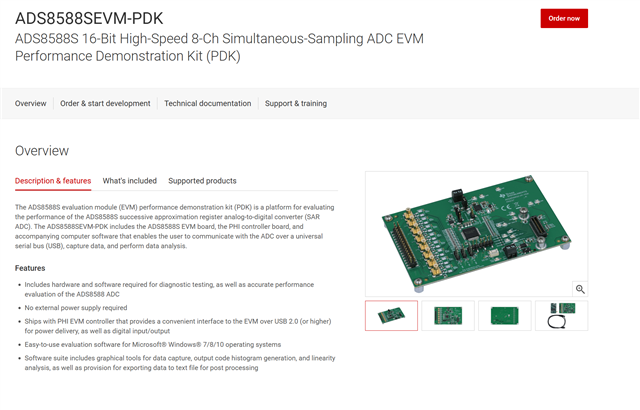

Hi I can not find schematic forADS8588SEVM-PDK & pcb layout for this board. Please send me the link.

0 Tom Hendrick 4 months ago

Hi Thien,

The schematic is at the end of the Users Guide here: https://www.ti.com/lit/ug/sbau278b/sbau278b.pdf - Section 7.3, page 23.

0 thien tran 4 months ago in reply to Tom Hendrick

Do you have this in Cadence,Metor Graphics or Altiunm ? All of Ti I got the Cad files for both Schematics & Layout file.

Thanks,

+1 Tom Hendrick 4 months ago in reply to thien tran

Hi Thien,

I'm sorry but we cannot provide the original design database for the ADS8588SEVM-PDK.
