AM2432: Profinet PHYs link status

Andrea Politano

Part Number: AM2432
Other Parts Discussed in Thread: DP83826E

Tool/software:

Hi,

I am using AM2432 with Profinet from the Industrial SDK 09.02.00.24.

Is it possible to get the link status of the Ethernet PHYs? I am currently using custom drivers CUST_PHY_DP83826E and CUST_PHY_TJA1101.

Thank you,

Best Regards,

Andrea

4 months ago

+1 Laxman Chinnannavar 4 months ago

TI__Intellectual 2820 points

Hi Andrea,

You can refer to the AM243x Technical Reference Manual (TRM). Within the section 6.4.14.10, which lists the MDIO registers. You can check the "MDIO_ALIVE_REG" and "MDIO_LINK_REG" to retrieve the link status of the Ethernet PHY's, corresponding to the PHY address.

https://www.ti.com/lit/ug/spruim2h/spruim2h.pdf?ts=1745499694673

Best Regards,

Laxman

0 Andrea Politano 4 months ago in reply to Laxman Chinnannavar

Prodigy 160 points

Hi Laxman,

thank you for your answer.

I confirm that it works. However I read from this thread that the addresses to read are 0x3001FF08 and 0x3001FF0C (and indeed using these works), while on the TRM instead are 3003 2408h and 3003 240Ch (and it seems that these do not work). Why there this difference?

Thank you,

Best regards,

Andrea

+1 Laxman Chinnannavar 4 months ago in reply to Andrea Politano

TI__Intellectual 2820 points

Hi Andrea,

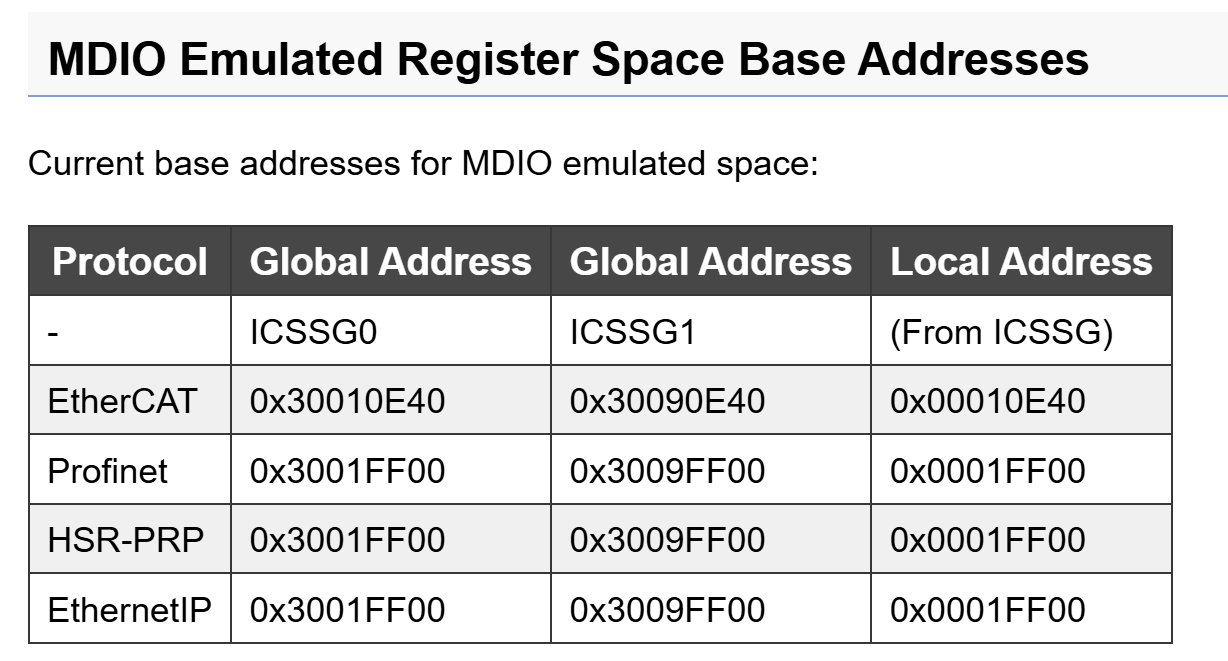

Missed to mention this previously, the MDIO registers as mentioned in TRM have few issues due to HW errata. Hence the MDIO register space is emulated and stored in a different location, as mentioned in the below table. Hence it is required to check these offsets instead of the ones mentioned in TRM.

Additional details regarding this can be found here: software-dl.ti.com/.../INDUSTRIAL_COMMS_MDIO_MANUALMODE_FW_USAGE.html

Best Regards,
Laxman
