SYSCONFIG: AM263P4 sysconfig GPIO "Qual Sel" option seems to not work

Huey Duong

Intellectual 290 points

Part Number: SYSCONFIG

Tool/software:

Using SysConfig 1.23.0+4000

How do you change the "Qual Sel" option on sysconfig?

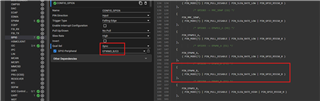

Before:

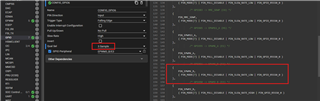

After:

I was expecting the tool to add PIN_QUAL_XXX flags to ti_pinmux_config.c::gPinMuxMainDomainCfg[]. But nothing changes regardless of what value I choose for "Qual Sel".

Please help me understand what I am doing wrong here.

Also, is there a way to configure the sampling period using SYSCONFIG?

Again, thanks for the support.

3 months ago

0 Nilabh Anand 3 months ago

TI__Mastermind 44514 points

Hi Huey,

For Future threads Please use the responsible org as ASM IND, It will allow threads to come directly to us.

0 Nilabh Anand 3 months ago in reply to Nilabh Anand

TI__Mastermind 44514 points

Hi Huey,

Apologies for the delay as the GPIO expert was unavailable.

This is a valid bug, the logic for Qualification Selection(Qual Sel) has not been implemented in syscfg.

I have created a bug for this and it will be fixed in next release.

Meanwhile more details on this feature can be found in TRM at 13.1.1.4.4 Input Qualification

0 Nilabh Anand 3 months ago in reply to Nilabh Anand

TI__Mastermind 44514 points

0 Huey Duong 3 months ago in reply to Nilabh Anand

Intellectual 290 points

thank you for the confirmation, I will wait for the next revision.

0 Huey Duong 3 months ago in reply to Huey Duong

Intellectual 290 points

In regards to the section you posted, please clarify if the documentation needs updating.

tw(IQSW) should = 5 x 10ns = 50ns. The line above says tw(SP)=10ns not 5ns.

Also, shouldn't the output from qualifier signal go back high after 6 samples of the GPIO signal? The diagram shows 5.

Regards.

+1 Nilabh Anand 3 months ago in reply to Huey Duong

TI__Mastermind 44514 points

Agreed Huey,

HW team also confirmed this.

Huey Duong said:
Also, shouldn't the output from qualifier signal go back high after 6 samples of the GPIO signal? The diagram shows 5.

Yes, this will be also fixed.
