TMDX570LC43HDK: There appears to be a discrepancy between the HDK User's Guide and the Schematic for the HDK

Hi Andrew,

I came across this issue before,

Can you please refer below thread once, here i mentioned all the typos related to this:

(16) Pin assignment problems in pinmux - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

---
Thanks & regards,
Jagadish.

Hi Jagadish,

Thank you for your prompt reply. It answered part of my question.

But I am still not clear about pins C11, C12, C13, C14, C15, C16, C17, D14 and D15.
In table 2.8 in the HDK User's Guide these pins have the signal name "NC", which I assume means "Not Connected".

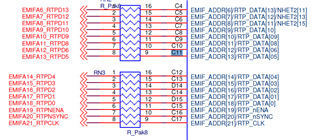

But in the schematic they seem to be connected as follows:
C11 - EMIF_ADDR[13]/RTP_DATA[05]
C12 - EMIF_ADDR[14]/RTP_DATA[04]
C13 - EMIF_ADDR[15]/RTP_DATA[03]
C14 - EMIF_ADDR[17]/RTP_DATA[01]
C15 - EMIF_ADDR[19]/RTP_nENA
C16 - EMIF_ADDR[20]/RTP_nSYNC
C17 - EMIF_ADDR[21]/RTP_CLK
D14 - EMIF_ADDR[16]/RTP_DATA[02]
D15 - EMIF_ADDR[18]/RTP_DATA[0]

Which is correct, table 2.8 in the HDK User's Guide or the schematic ?

Thank you,

Andrew
