AM263P4-Q1: CCM Execution Issue in sdl_ccm_example during QSPI Boot mode

Rapeti Sravanthi

Part Number: AM263P4-Q1
Other Parts Discussed in Thread: UNIFLASH, AM263P4

Tool/software:

I am working with the sdl_CCM_example provided in the MCU+SDK version 10.02.00.15 on an AM263Px device. When I run the sdl_ccm_example in QSPI boot mode. The image is flashed successfully, and the application begins execution.

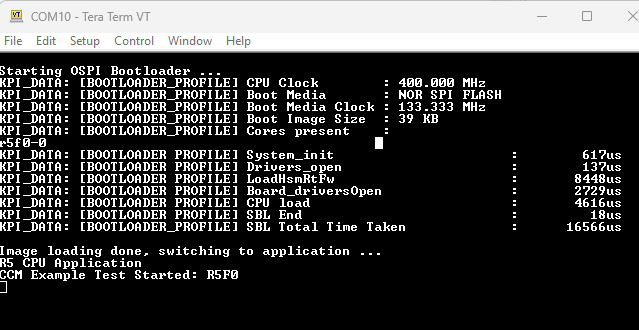

However, the control gets stuck right after printing the message CCM_Example_started . The lockstep error detection tests are never executed beyond this point. Attached the image.

2 months ago

0 QJ Wang 2 months ago

TI__Guru**** 196266 points

Hi,

When you use OPSI boot mode, do you program the example to flash which will be loaded by the OSPI SBL?

If you use the CCS to load/execute the example, you can use DEVBOOT or NOBOOT to test.

0 Rapeti Sravanthi 2 months ago in reply to QJ Wang

Prodigy 145 points

Hi OJ Wang,

QJ Wang said:
When you use OPSI boot mode, do you program the example to flash which will be loaded by the OSPI SBL?

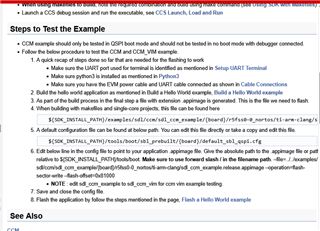

Yes I programmed the example to flash. I followed the below procedure.

A statement "CCM Example Test Started: R5F0" is also printed in console as in above attached image.

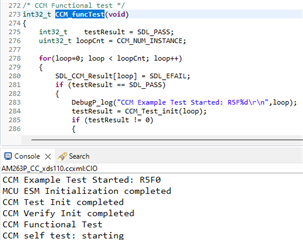

I tried using device boot mode also. But test failed. Attached the image.

0 QJ Wang 2 months ago in reply to Rapeti Sravanthi

TI__Guru**** 196266 points

Hi,

With OSPI boot mode, I run into the same issue:

Need some time to debug the issue.

0 Rapeti Sravanthi 2 months ago in reply to QJ Wang

Prodigy 145 points

Hi,

QJ Wang said:
Need some time to debug the issue.

Thanks for the response Wang.

Please update as soon as possible.

Regards,

Sravanthi

0 QJ Wang 2 months ago in reply to Rapeti Sravanthi

TI__Guru**** 196266 points

HI Sravanthi,

I will, but no progress today.

0 QJ Wang 1 month ago in reply to QJ Wang

TI__Guru**** 196266 points

Hi Sravanthi,

I have filed a JIRA ticket and will work with SDK developer to debug the issue.

0 Rapeti Sravanthi 1 month ago in reply to QJ Wang

Prodigy 145 points

Hi QJ Wang

Please debug the issue as soon as possible.

Regards

Sravanthi R.

0 QJ Wang 1 month ago in reply to Rapeti Sravanthi

TI__Guru**** 196266 points

We will.

0 Rapeti Sravanthi 1 month ago in reply to QJ Wang

Prodigy 145 points

Hi QJ Wang,

Is there any update.

Reagrds,

Sravanthi R.

0 QJ Wang 1 month ago in reply to Rapeti Sravanthi

TI__Guru**** 196266 points

Hi Sravanthi,

I am sorry I haven't got feedback. I will check again tomorrow.

0 MK 1 month ago in reply to QJ Wang

TI__Intellectual 1620 points

Hi Wang,
I'm the Apps supporting Medha. Do we have a timeline to solve this issue?

Best Regards,

Madhurya

0 QJ Wang 1 month ago in reply to MK

TI__Guru**** 196266 points

Hi Madhurya,

I have pinged SDL experts, and hope you will provide feedback soon.

0 QJ Wang 1 month ago in reply to QJ Wang

TI__Guru**** 196266 points

Hi Madhurya,

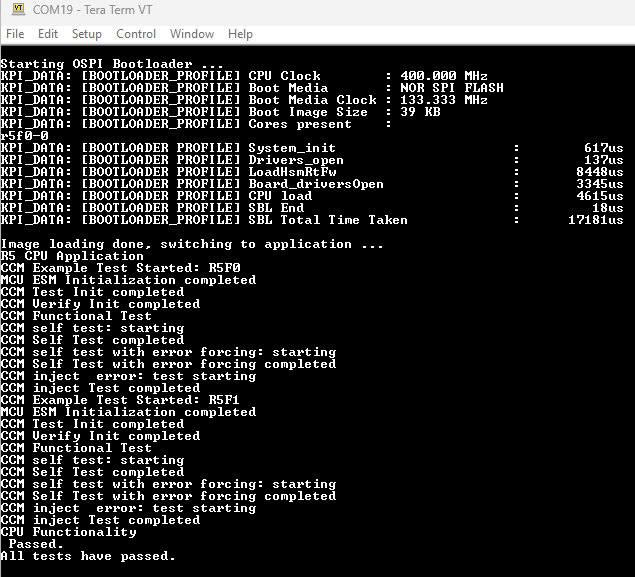

I run CCM selftest, and test passed. The test has to be done with bootloader (SBL) and application.

The SOP[3:0] settings define the device bootmodes. When SOP[3:0]=0011b, the device will boot from OSPI [8S] flash.

The AM263P CC has a dip switch whose 4 legs are connected to SOP[3:0] signal pins. The dip switch has to be selected a proper value for OSPI boot.

You can use either UART boot to load OSPI SBL and application to flash or use the uniflash to load the OSPI SBL and application to flash.

Use Uniflash to load the files to flash

0 Rapeti Sravanthi 1 month ago in reply to QJ Wang

Prodigy 145 points

Hi Wang

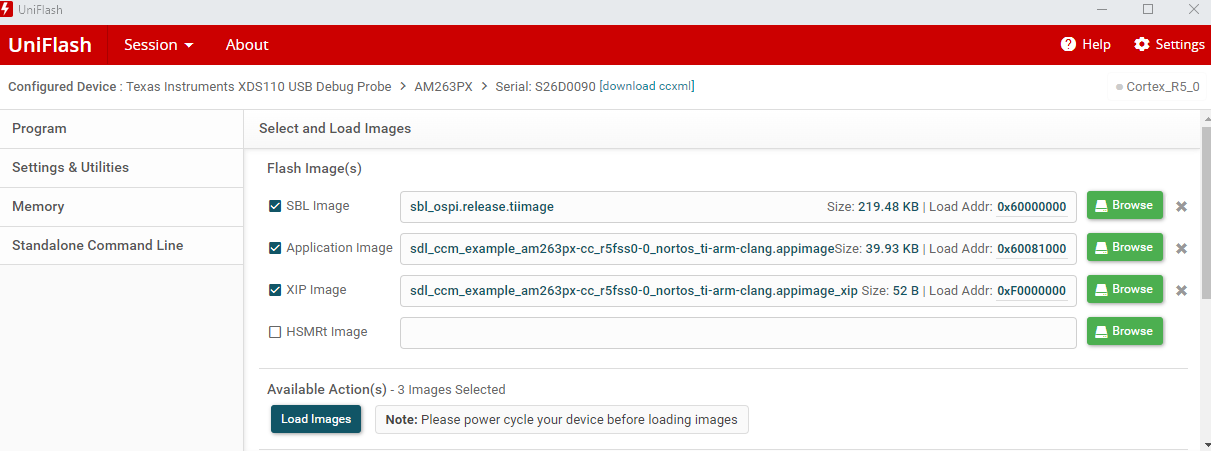

When i am trying to use the uniflash to load the OSPI SBL and application to flash , I am getting as unable to load the files as in attcached image. I am using AM263P4 LP . In uniflash i have tried for both AM263 LP and AM263Px CC as device selection.
