TMDSCNCD263P: PROC159B Design Files

Jejomar Ildefonso
Genius 9490 points
Part Number: TMDSCNCD263P

Tool/software:

Hi Team,

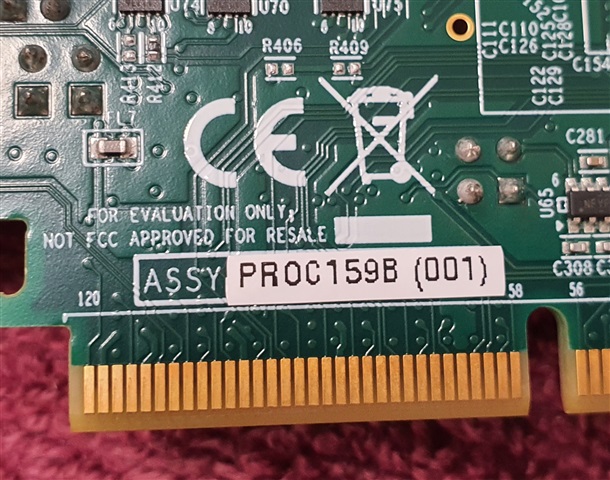

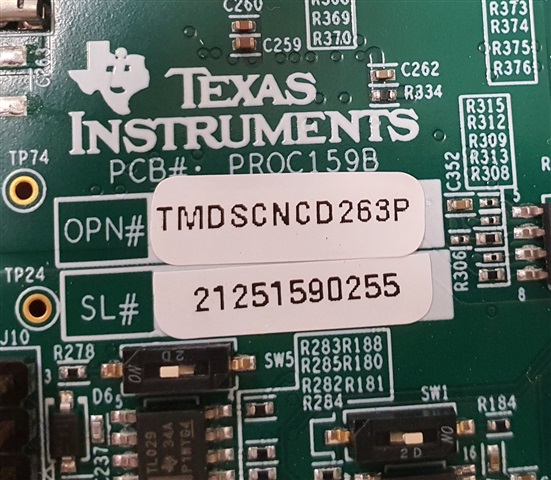

Our customer is looking for the design files of their TMDSCNCD263P controlCard. The published design files on the TMDSCNCD263P product page (sprr492) contains the design files for the PROC159A and PROC159E2. However, their board shows PROC159B markings. Below are some images of their TMDSCNCD263P board.

Are the design files PROC159E2 version same as for the PROC159B version? Or do we have separate design files for PROC159B?

Kind Regards,

Jejomar

  • +1
    TI__Genius 10534 points

    Hi Jejomar,

    PROC159B is the latest revision of this EVM and has improvements from PROC159E2.

    I will look into the issue with the design files on ti.com not having PROC159B resources. In the mean time, I have attached the PROC159B schematic PDF to this reply.

    Please let me know if there are any additional files immediately needed.

    Regards,

    Brennan

    PROC159B(001)_SCH.pdf
