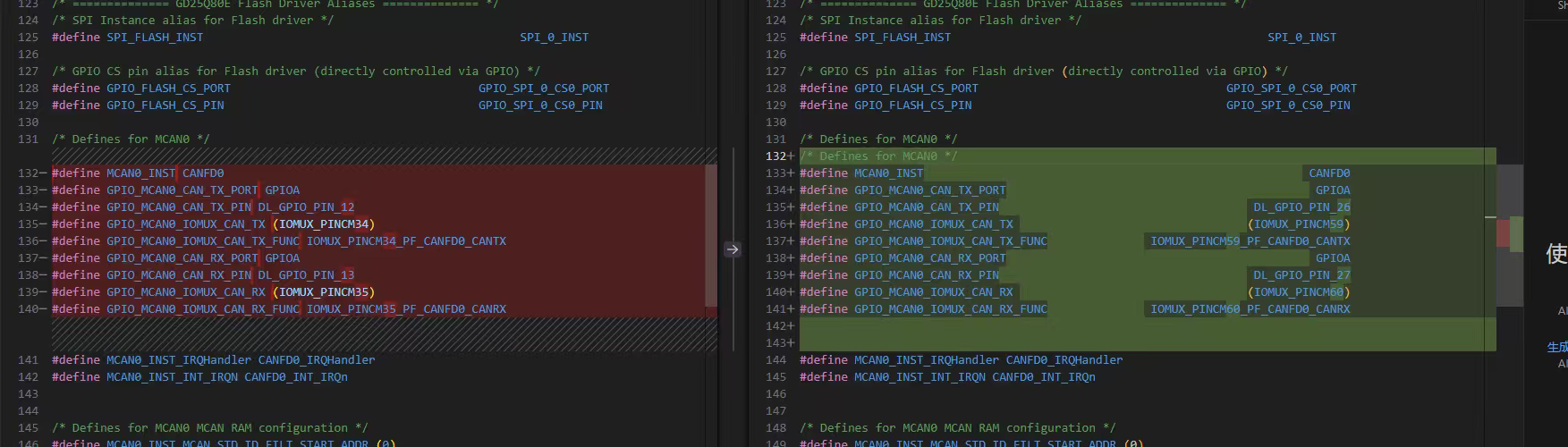

Previously, the debugging was successful on your demo board msp0g3507. Now, we have switched to our own board msp0g3107, and the version macro definition in the code has also been updated to __MSPM0G3107__. These pins have also been changed.
I used a logic analyzer to capture the UART waveform, but there was no waveform at all. What else should I pay attention to? I haven't modified the previous demo.

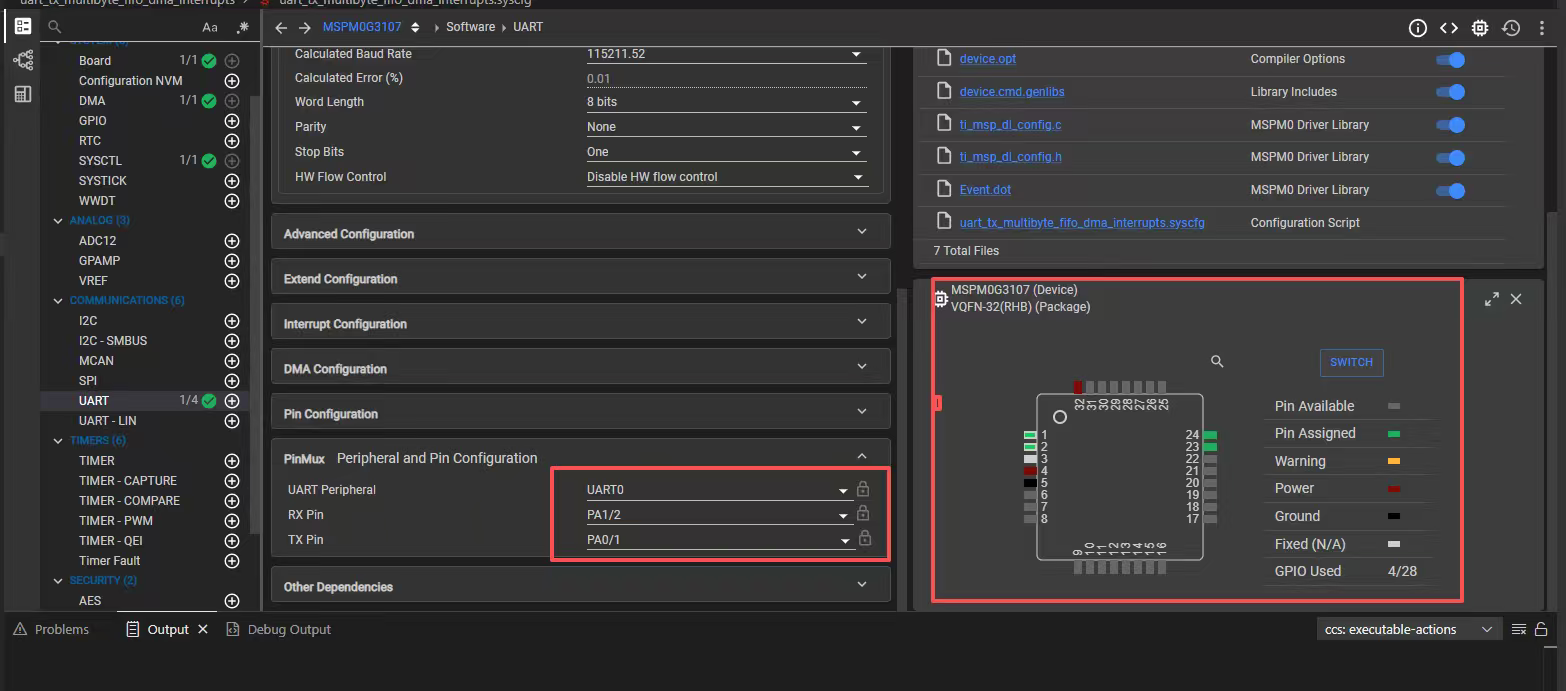

Could you please take a look? I've configured the UART pins with CCS, but there's still no waveform on the UART side.
How does he generate the hex file for this?
On the msp0G3507 demo, PA12 and PA13 can work normally, but when they are replaced with PA26 and PA27, they don't work properly. Could you please take a look and help?
