TMDX570LC43HDK: TMDX570LC43HDK mechanical design drawing?

bryan bickel

Prodigy 10 points

Part Number: TMDX570LC43HDK

I'm trying to design a set of daughter boards for the TMDX570LC43HDK but I'm having trouble finding the mechanical design drawing. I see it uses 2mm pitch connectors which I think is odd but at least they tell you what they used.

What I dont find is a drawing specifying locating dimensions for the fasteners (or the type) nor the locating dimensions for the connectors themselves (at their center). Please advise.

0 jagadish gundavarapu 3 months ago

TI__Guru* 77806 points

Hi Bryan,

I don't find anything related to mechanical drawings for this board.

Mostly need to use layout and schematic related files only.

You can find them here:

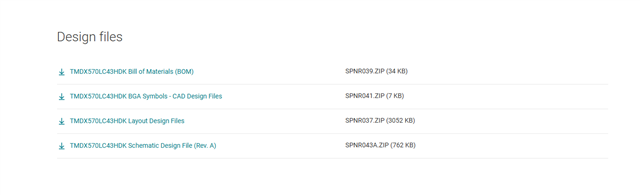

TMDX570LC43HDK Development kit | TI.com

--
Thanks & regards,
Jagadish.

0 bryan bickel 3 months ago in reply to jagadish gundavarapu

Prodigy 10 points

Ok. What if I dont have allegro?

0 jagadish gundavarapu 3 months ago in reply to bryan bickel

TI__Guru* 77806 points

Hi Bryan,

The Altium’s Import Wizard has the capability to import Allegro PCB designs (*.brd), into Altium Designer.

So can you please download the Altium.

Refer below thread for more details:

(+) TMDSRM48HDK: TMDSRM48HDK 3D Model Request - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

--

Thanks & Regards,
Jagadish.

0 bryan bickel 3 months ago in reply to jagadish gundavarapu

Prodigy 10 points

This is a bad solution because it locks people into using expensive ECAD software and still requires reverse engineering from the board file.

A mechanical design drawing should be mandatory for the contractors developing your development boards.

0 jagadish gundavarapu 3 months ago in reply to bryan bickel

TI__Guru* 77806 points

bryan bickel said:
A mechanical design drawing should be mandatory for the contractors developing your development boards.

QJ Wang as per your knowledge do we have this mechanical drawing for TMDX570LC43HDK?

0 QJ Wang 3 months ago in reply to jagadish gundavarapu

TI__Guru**** 200256 points

Hi Bryan,

Here is the board layout file. You can extract mechanical drawings from this .brd file.

RM57_hdk_reve.brd
