AM263X-MCAL-SDK: Bank-related information required in excel format

AMAN ARAB

Prodigy 40 points

Part Number: AM263X-MCAL-SDK

Hello Team,

Please provide the bank-related information (Pin naming) for the part AM2634COKFHMZCZRQ1 in excel format.

Thanks,

Aman Arab

0 Rijohn Pius 2 months ago

TI__Expert 4350 points

Hi Aman,

Thank you for the query!

Please allow us to get back on this after checking with design team by early next week.

Thanks & Regards,
Rijohn

0 Tejas Kulakarni 2 months ago in reply to Rijohn Pius

TI__Expert 3220 points

Hi Aman,

Please find below the datasheet in HTML format here - https://www.ti.com/document-viewer/AM2634/datasheet

The pin attributes can be found here further down in the same link - https://www.ti.com/document-viewer/AM2634/datasheet#GUID-20220810-DA0T-CPPD-8X0R-7PPDPRRLVHRZ/GUID-9F55C3A9-CE8A-4F3D-A392-F54CA347D7E4

Thanks,

Tejas Kulakarni

0 AMAN ARAB 2 months ago in reply to Tejas Kulakarni

Prodigy 40 points

Hello Tejas,

Sorry for delay in response. Could you please share me the BANK information in excel format as example attached.

M2S005(S)_TQ144_Pin_Assignment_Table.xlsx

+1 AMAN ARAB 2 months ago in reply to AMAN ARAB

Prodigy 40 points

Tejas Kulakarni Any updates on the bank information in excel format.

+1 Tejas Kulakarni 2 months ago in reply to AMAN ARAB

TI__Expert 3220 points

Hi Aman,

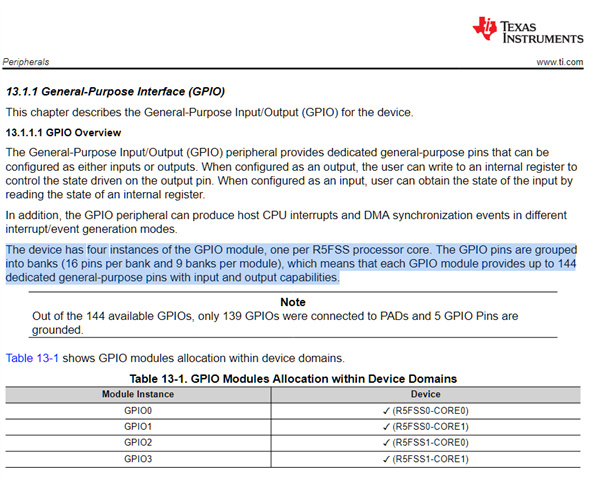

Apologies, I am not sure if I understand this correctly. The GPIO bank grouping is very simple as mentioned below from AM263Px Technical Reference Manual. Also, all the GPIOs can be accessed, operated and configured by all the 4 cores of R5F.

Do let me know if any other info is needed.

Thanks,
Tejas Kulakarni
