AM2432: Observing extra clock pulses when I2C is configured above 1Mhz.| AM2432

Hello Nilesh,

On which port of the I2C do you observe this signal issue?

What is the power supply rail voltage on the port?

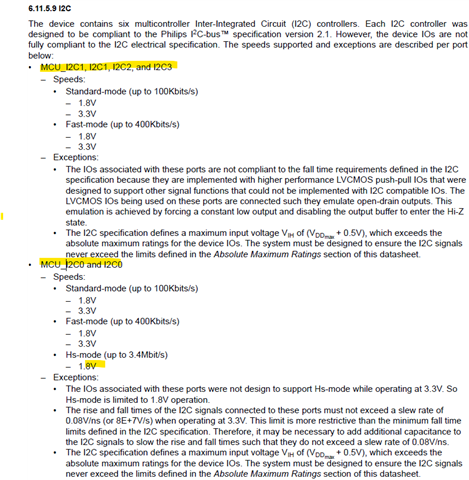

You can see in the AM243x Datasheet the ports and voltages.

Best Regards,

Borislav Lazarkov

We are observing these pulses on each I2C Channel.

Meanwhile, we have observed on below mentioned I2C Channels:

1. MCU_I2C0 (1.8V)

Hello Nilesh,

Do you have an oscillogram of the Data line? Could you please provide us a screenshot with better voltage and timing resolution?

Do you multiplex with another interface on the same line?

What voltage do you have on the VDDSHV_MCU?

Best Regards,

Borislav Lazarkov

Hello Nilesh,

Please share the schematics for the I2C implementation to do a quick review.

Is the waveform observed to be as expected when you reduce the speed to 400KHz?

Regards,

Sreenivasa

Hello Nilesh,

Kallikuppa Sreenivasa said:

Is the waveform observed to be as expected when you reduce the speed to 400KHz?

I see the below reply.

Nilesh Parmar said:

Moreover these ringing were not observed when I2C is configured for 100kHz or 400kHz.

You mentioned 1MHz and above

Nilesh Parmar said:

While configuring I2C for 1MHz and above there some ringing/pulses observed on I2C_SCL line.

Please list the frequency you tested and help me confirm if you see similar behavior

Regards,

Sreenivasa

Hi Kallikuppa Sreenivasa ,

We have tested MCU_I2C0 on 100Khz and 400KHz. However, getting the extra pulses on each clock cycle.

On I2C Side, we have placed 1K pull-up on SCL and SDA Line.

Below the snapshot for SCL and SDA Line.

Kindly update on the same.

Best regards,

Nilesh

Hello Nilesh,

Which package of the AM2432 you are using- the ALV or the ALX?

Best Regards,

Borislav Lazarkov

We are using AM2432BSEFHIALVR.

Hello Nilesh,

Thank you.

Kallikuppa Sreenivasa said:

Please share the schematics for the I2C implementation to do a quick review.

Is the waveform observed to be as expected when you reduce the speed to 400KHz?

Please share the schematic for a quick check.

Nilesh Parmar said:

We have tested MCU_I2C0 on 100Khz and 400KHz. However, getting the extra pulses on each clock cycle.

On I2C Side, we have placed 1K pull-up on SCL and SDA Line.

Is there a reason to choose 1K, is there another pullup near or cap load to the attached device?

Regards,

Sreenivasa
