Schematic Design Files for Tiva Launchpad and Fuel Tank Boosterpack

Krithik Chandrashekar

Other Parts Discussed in Thread: EK-TM4C123GXL, BQ24210

Are the Schematic Design Files available for the following:

EK-TM4C123GXL TIva Launchpad Evaluation Kit
BOOSTXL-BATTBACK Fuel Tank BoosterPack

I don't need documentation of the schematics. I'm looking for KiCad/Eagle/Altium format Schematic Design Files.

0 Amit Ashara over 10 years ago

Hello Krithik,

The schematic is only available as what is part of the specification/documentation.

Regards

Amit

0 Krithik Chandrashekar over 10 years ago in reply to Amit Ashara

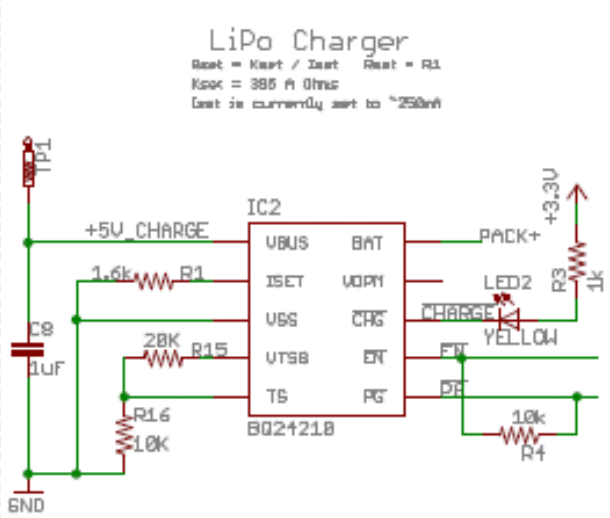

The Boosterpack deign has a schematic diagram, but slightly low resolution one. I'm unable to discern some of the sub-script(s) here:

R_ISET = K_ISET/ I_ISET; R_ISET =R1

K_ISET = 385 A ohms (as per data sheet)

I_OUT is currently set to 250 mA? Is this the output (charging) current?

As an aside, would be great to have a build of materials for the boosterpack design.

0 Amit Ashara over 10 years ago in reply to Krithik Chandrashekar

Hello Krithik,

More data when you go to the data sheet of the device and it's application notes

http://www.ti.com/product/bq24210

Regards

Amit

0 Krithik Chandrashekar over 10 years ago in reply to Amit Ashara

Hi Amit,

I did run through the datasheets. Just wanted confirmation on the above text because they were not legible.

Thanks,
Krithik

0 Amit Ashara over 10 years ago in reply to Krithik Chandrashekar

Hello Krithik,

I do agree that the text is not very legible. A good thing would be to put the forum post for the charger forum.

Regards

Amit
