Error in ADCSequenceConfigure

Here's the complete corrected function:

void
ADCSequenceConfigureFixed(uint32_t ui32Base, uint32_t ui32SequenceNum,
                     	 uint32_t ui32Trigger, uint32_t ui32Priority)
{
    uint32_t ui32Gen;

    //
    // Check the arugments.
    //
    ASSERT((ui32Base == ADC0_BASE) || (ui32Base == ADC1_BASE));
    ASSERT(ui32SequenceNum < 4);
    ASSERT(((ui32Trigger & 0xF) == ADC_TRIGGER_PROCESSOR) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_COMP0) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_COMP1) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_COMP2) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_EXTERNAL) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_TIMER) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_PWM0) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_PWM1) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_PWM2) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_PWM3) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_ALWAYS) ||
           ((ui32Trigger & 0x30) == ADC_TRIGGER_PWM_MOD0) ||
           ((ui32Trigger & 0x30) == ADC_TRIGGER_PWM_MOD1));
    ASSERT(ui32Priority < 4);

    //
    // Compute the shift for the bits that control this sample sequence.
    //
    ui32SequenceNum *= 4;

    //
    // Set the trigger event for this sample sequence.
    //
    HWREG(ui32Base + ADC_O_EMUX) = ((HWREG(ui32Base + ADC_O_EMUX) &
                                     ~(0xf << ui32SequenceNum)) |
                                    ((ui32Trigger & 0xf) << ui32SequenceNum));

    //
    // Set the priority for this sample sequence.
    //
    HWREG(ui32Base + ADC_O_SSPRI) = ((HWREG(ui32Base + ADC_O_SSPRI) &
                                      ~(0xf << ui32SequenceNum)) |
                                     ((ui32Priority & 0x3) <<
                                      ui32SequenceNum));

    //
    // Set the source PWM module for this sequence's PWM triggers.
    //
    ui32Gen = ui32Trigger & 0x0f;
    if(ui32Gen >= ADC_TRIGGER_PWM0 && ui32Gen < ADC_TRIGGER_PWM3)
    {
    	// Set the shift for the module and generator
    	ui32Gen = (ui32Gen - ADC_TRIGGER_PWM0) * 8;
    	HWREG(ADC0_BASE + ADC_O_TSSEL) = ((HWREG(ADC0_BASE + ADC_O_TSSEL) &
										  ~(0x30 << ui32Gen)) |
										 ((ui32Trigger & 0x30) << ui32Gen));
    }
}

You can demonstrate the problem with the following code:

ADCSequenceConfigure(ADC0_BASE, 1, ADC_TRIGGER_PWM_MOD1 | ADC_TRIGGER_PWM2, 0);

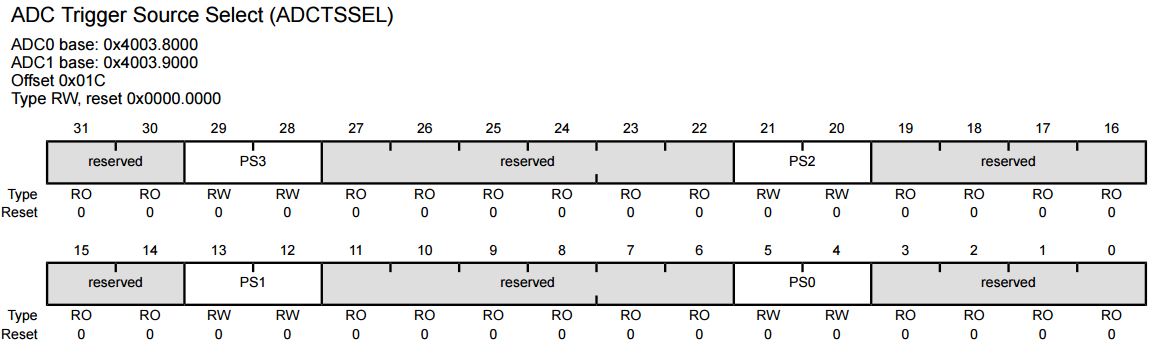

This sets ADC_TSSEL to 0x00001000 which is in the reserved part of the register.

The corrected code sets ADC_TSSEL to 0x00100000

Regards,

--Mike

Lets try that again (syntax highlighter just doesn't get me...)

You can demonstrate the problem with the following code:

ADCSequenceConfigure(ADC0_BASE, 1, ADC_TRIGGER_PWM_MOD1 | ADC_TRIGGER_PWM2, 0);

This sets ADC_TSSEL to 0x00001000 which is in the reserved part of the register.

The corrected code sets ADC_TSSEL to 0x00100000

Regards,

--Mike

OK, syntax highlighter, that was just spiteful!

One more time (moderator please feel free to delete the above fails!).

You can demonstrate the problem with the following code:

ADCSequenceConfigure(ADC0_BASE, 1, ADC_TRIGGER_PWM_MOD1 | ADC_TRIGGER_PWM2, 0);

This sets ADC_TSSEL to 0x00001000 which is in the reserved part of the register.

The corrected code sets ADC_TSSEL to 0x00100000

Regards,

--Mike



A Message from the TI E2E™ Community   Amit Ashara replied to Error in ADCSequenceConfigure. Hello Michael, Which TM4C device is being used? Regards Amit     You received this notification because you subscribed to the forum.  To unsubscribe from only this thread, go here. Flag this post as spam/abuse.

Hello Michael.

EDIT

I checked the code and I can confirm the observation you have. It is indeed an API Bug.

The location specified in the ADCTSSEL is corresponding to the Sequencer and not the Generator. This is a documentation issue. In other words, when selecting PWM1 Gen-2 for ADC Sequencer-1 the location is correctly programmed. In the data sheet description of the bit field for the ADC_TSSEL if the word "Generator" is replaced by "Sequencer", it will clarify the description.

Regards
Amit

Amit,

If what you say is true (ADCTSSEL is based on Sequencer, not Generator), then my modified version of ADCSequenceConfigure should fail.

However, it fails to fail.

Have a look:

#include <stdbool.h>
#include <stdint.h>
//#include "inc/tm4c123gh6pm.h"
#include "inc/hw_memmap.h"
#include "inc/hw_types.h"
#include "inc/hw_adc.h"
#include "inc/hw_ints.h"
#include "driverlib/interrupt.h"
#include "driverlib/rom.h"
#include "driverlib/pwm.h"
#include "driverlib/adc.h"
#include "driverlib/gpio.h"
#include "driverlib/pin_map.h"
#include "driverlib/sysctl.h"
#include "driverlib/uart.h"
#include "driverlib/debug.h"
#include "utils/uartstdio.h"

void adc_seq_1_isr(void);

//*****************************************************************************
//
// This function sets up UART0 to be used for a console to display information
// as the example is running.
//
//*****************************************************************************
void
InitConsole(void)
{
    //
    // Enable GPIO port A which is used for UART0 pins.
    // TODO: change this to whichever GPIO port you are using.
    //
    SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOA);

    //
    // Configure the pin muxing for UART0 functions on port A0 and A1.
    // This step is not necessary if your part does not support pin muxing.
    // TODO: change this to select the port/pin you are using.
    //
    GPIOPinConfigure(GPIO_PA0_U0RX);
    GPIOPinConfigure(GPIO_PA1_U0TX);

    //
    // Enable UART0 so that we can configure the clock.
    //
    SysCtlPeripheralEnable(SYSCTL_PERIPH_UART0);

    //
    // Use the internal 16MHz oscillator as the UART clock source.
    //
    UARTClockSourceSet(UART0_BASE, UART_CLOCK_PIOSC);

    //
    // Select the alternate (UART) function for these pins.
    // TODO: change this to select the port/pin you are using.
    //
    GPIOPinTypeUART(GPIO_PORTA_BASE, GPIO_PIN_0 | GPIO_PIN_1);

    //
    // Initialize the UART for console I/O.
    //
    UARTStdioConfig(0, 9600, 16000000);
}

//*****************************************************************************
//
// Configure ADC0 for a single-ended input and a single sample.  Once the
// sample is ready, an interrupt flag will be set.  Using a polling method,
// the data will be read then displayed on the console via UART0.
//
//*****************************************************************************

#define adc_seq_num			1

void Setup_ADC(void)
{
	// The ADC0 peripheral must be enabled for use.
	SysCtlPeripheralEnable(SYSCTL_PERIPH_ADC0);

	// Set clock source for ADC to PIOSC (16 MHz) divided by 1
	ADCClockConfigSet(ADC0_BASE, ADC_CLOCK_SRC_PIOSC | ADC_CLOCK_RATE_FULL, 1);

	// Enable Ports
	SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOE);

	// Select the analog ADC function for these pins.
	// Consult the data sheet to see which functions are allocated per pin.
	GPIOPinTypeADC(GPIO_PORTE_BASE, GPIO_PIN_0);
	GPIOPinTypeADC(GPIO_PORTE_BASE, GPIO_PIN_1);

	// Enable sample sequence 1 with a processor signal trigger.
	// Set to lowest priority (3)
	ADCSequenceConfigure(ADC0_BASE, adc_seq_num, ADC_TRIGGER_PROCESSOR, 0);

	// Configure step 0-1 on sequence 1.
	ADCSequenceStepConfigure(ADC0_BASE, adc_seq_num, 0, ADC_CTL_CH3);								// PE1
	ADCSequenceStepConfigure(ADC0_BASE, adc_seq_num, 1, ADC_CTL_CH2 | ADC_CTL_IE | ADC_CTL_END);	// PE0

	// Since sample sequence 0 is now configured, it must be enabled.
	ADCSequenceEnable(ADC0_BASE, adc_seq_num);
}

void
ADCSequenceConfigureFixed(uint32_t ui32Base, uint32_t ui32SequenceNum,
                     	 uint32_t ui32Trigger, uint32_t ui32Priority)
{
    uint32_t ui32Gen;

    //
    // Check the arugments.
    //
    ASSERT((ui32Base == ADC0_BASE) || (ui32Base == ADC1_BASE));
    ASSERT(ui32SequenceNum < 4);
    ASSERT(((ui32Trigger & 0xF) == ADC_TRIGGER_PROCESSOR) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_COMP0) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_COMP1) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_COMP2) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_EXTERNAL) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_TIMER) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_PWM0) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_PWM1) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_PWM2) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_PWM3) ||
           ((ui32Trigger & 0xF) == ADC_TRIGGER_ALWAYS) ||
           ((ui32Trigger & 0x30) == ADC_TRIGGER_PWM_MOD0) ||
           ((ui32Trigger & 0x30) == ADC_TRIGGER_PWM_MOD1));
    ASSERT(ui32Priority < 4);

    //
    // Compute the shift for the bits that control this sample sequence.
    //
    ui32SequenceNum *= 4;

    //
    // Set the trigger event for this sample sequence.
    //
    HWREG(ui32Base + ADC_O_EMUX) = ((HWREG(ui32Base + ADC_O_EMUX) &
                                     ~(0xf << ui32SequenceNum)) |
                                    ((ui32Trigger & 0xf) << ui32SequenceNum));

    //
    // Set the priority for this sample sequence.
    //
    HWREG(ui32Base + ADC_O_SSPRI) = ((HWREG(ui32Base + ADC_O_SSPRI) &
                                      ~(0xf << ui32SequenceNum)) |
                                     ((ui32Priority & 0x3) <<
                                      ui32SequenceNum));

    //
    // Set the source PWM module for this sequence's PWM triggers.
    //
    ui32Gen = ui32Trigger & 0x0f;
    if(ui32Gen >= ADC_TRIGGER_PWM0 && ui32Gen < ADC_TRIGGER_PWM3)
    {
    	// Set the shift for the module and generator
    	ui32Gen = (ui32Gen - ADC_TRIGGER_PWM0) * 8;
    	HWREG(ADC0_BASE + ADC_O_TSSEL) = ((HWREG(ADC0_BASE + ADC_O_TSSEL) &
										  ~(0x30 << ui32Gen)) |
										 ((ui32Trigger & 0x30) << ui32Gen));
    }
}

void Setup_PWM(void)
{
	// Enable Ports
	SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOF);

	GPIOPinTypePWM(GPIO_PORTF_BASE, GPIO_PIN_1);

	// PWM Trigger Setup
	// Enable PWM 1
	SysCtlPeripheralEnable(SYSCTL_PERIPH_PWM1);

	// Configure GPIO Pins for PWM mode.
	GPIOPinConfigure(GPIO_PF1_M1PWM5);

	// Configure the PWM generators for count up/down mode with immediate updates
	// to the parameters.
	PWMGenConfigure(PWM1_BASE, PWM_GEN_2, PWM_GEN_MODE_UP_DOWN | PWM_GEN_MODE_NO_SYNC);

	// Set the PWM clock to 80 MHz / 64 = 1.25 MHz
	SysCtlPWMClockSet(SYSCTL_PWMDIV_64);

	// Set the PWM period to be as long as possible. For 80 MHz clock with a divider = 64, the
	// PWM clock is 80 / 64 = 1.25 MHz.  In up/down mode we must count 2xload so 1.25 MHz / (2 * 65535) = 9.5 Hz.
	PWMGenPeriodSet(PWM1_BASE, PWM_GEN_2, 65535);

	// Set the pulse width of PWM 5 for a 25%duty cycle.
	PWMPulseWidthSet(PWM1_BASE, PWM_OUT_5, 120);

	// Start the timers in generator 2.
	PWMGenEnable(PWM1_BASE, PWM_GEN_2);

	// Turn on the Output pins
	PWMOutputState(PWM1_BASE, PWM_OUT_5_BIT, true);

	// Trigger the ADC on when PWM matches the load register.
	PWMGenIntTrigEnable(PWM1_BASE, PWM_GEN_2, PWM_TR_CNT_LOAD);

#if 0
	ADCSequenceConfigure(ADC0_BASE, adc_seq_num, ADC_TRIGGER_PWM_MOD1 | ADC_TRIGGER_PWM2, 0);
#else
	ADCSequenceConfigureFixed(ADC0_BASE, adc_seq_num, ADC_TRIGGER_PWM_MOD1 | ADC_TRIGGER_PWM2, 0);
#endif

	ADCIntEnable(ADC0_BASE, adc_seq_num);

	// Clear the interrupt status flag.
	ADCIntClear(ADC0_BASE, adc_seq_num);
}

// TODO:  Get it working at 80 MHz (are we setting ADC clock right?)
int main(void)
{
	uint32_t data[2];

    // Enable lazy stacking for interrupt handlers.  This allows floating-point
    // instructions to be used within interrupt handlers, but at the expense of
    // extra stack usage.
    ROM_FPULazyStackingEnable();

    // Set the clocking to run from the PLL (400 MHz / (2 * 2.5) = 80 MHz.
    // Set the clocking to run from the PLL (400 MHz / (2 * 10) = 20 MHz.
    // Set the clocking to run from the PLL (400 MHz / (2 * 12.5) = 16 MHz.
    SysCtlClockSet(SYSCTL_SYSDIV_12_5 | SYSCTL_USE_PLL | SYSCTL_OSC_MAIN | SYSCTL_XTAL_16MHZ);

    //
    // Set up the serial console to use for displaying messages.  This is
    // just for this example program and is not needed for ADC operation.
    //
    InitConsole();

    //
   	// Clear Screen
   	//
   	UARTprintf("\033[2J\033[;H");

   	//
   	// Home & set text color to blue
   	//
   	UARTprintf("\033[H\033[34m");

   	UARTprintf("**************************************************\n");
   	UARTprintf("**              PWM Triggered ADC               **\n");
   	UARTprintf("**************************************************\n");

   	// Set text color to black
   	UARTprintf("\n\033[30m");

   	// Setup ADC
   	Setup_ADC();

	// Setup PWM Trigger for ADC
   	Setup_PWM();

	while(1)
	{
		// Wait for conversion to be completed.
		while(!ADCIntStatus(ADC0_BASE, adc_seq_num, false));

		// Clear the ADC interrupt flag.
		ADCIntClear(ADC0_BASE, adc_seq_num);

		// Read ADC Values.
		ADCSequenceDataGet(ADC0_BASE, adc_seq_num, data);

		UARTprintf("\r\nSliders:  %4d %4d", data[0], data[1]);
	}
}

Yes, the corrected code sets ADCTSSEL to 0x00100000, while the original code sets it to 0x00001000, which is reserved based on the current datasheet.

This corresponds to PWM 0 on Generator 2.

Here's the full project.PWM_ADC.zip

Thanks for the heads up--I must have started with an old example project.

Amit,

Have you had a chance to try running the project I posted?

--Mike
