EK-TM4C1294XL Rev D Design Files (EAGLE)

Hello user4293941

When you mention the schematic and layout, did you check the bottom side of the board?

Hello Amit,

I don't have a board, only the Eagle files.

I have top and bottom turned on.

Do you see any connections?

user4293941

On 3 May 2016 09:59:30 -0500

"Amit Ashara" wrote:

> A Message from the TI E2E™ Community

>

> Amit Ashara [http://e2e.ti.com/members/310847] replied

> to EK-TM4C1294XL Rev D Design Files (EAGLE)

> [http://e2e.ti.com/support/microcontrollers/tiva_arm/f/908/p/510627/1853080#1853080].

>

> Hello user4293941

>

> When you mention the schematic and layout, did you check the bottom

> side of the board?

>

> You received this notification because you subscribed to the forum.

>  To unsubscribe from only this thread, go here

> [http://e2e.ti.com/support/microcontrollers/tiva_arm/f/908/t/510627/mute].

>

> Flag

> [http://e2e.ti.com/support/microcontrollers/tiva_arm/f/908/p/510627/1853080?AbuseContentId=873650df-4556-4586-9b4e-aa883e7ba905&AbuseContentTypeId=f586769b-0822-468a-b7f3-a94d480ed9b0&AbuseFlag=true] this

> post as spam/abuse.

Hello user4293941

I checked the files and the GND and 3.3V connection are visible. I do see the escape via routes connecting them to the planes.

Regards
Amit

Victor L-S said:

.Ran Rastsnest and found one airwire

Hello Victor

Which one was an airwire?

Regards

Amit

Hi Amit,

Download to the Eagle ULP folder the file "zoom-unrouted.ulp" from CadSoft. http://www.cadsoftusa.com/downloads/ulps

Then from the board view use File->Run ULP.

It will zoom to the noted airwire. You will see it between the USR_SW2 and TP14 labels.

Regards,

Victor

Hello Victor

A snapshot of the image would be good as well

Regards
Amit

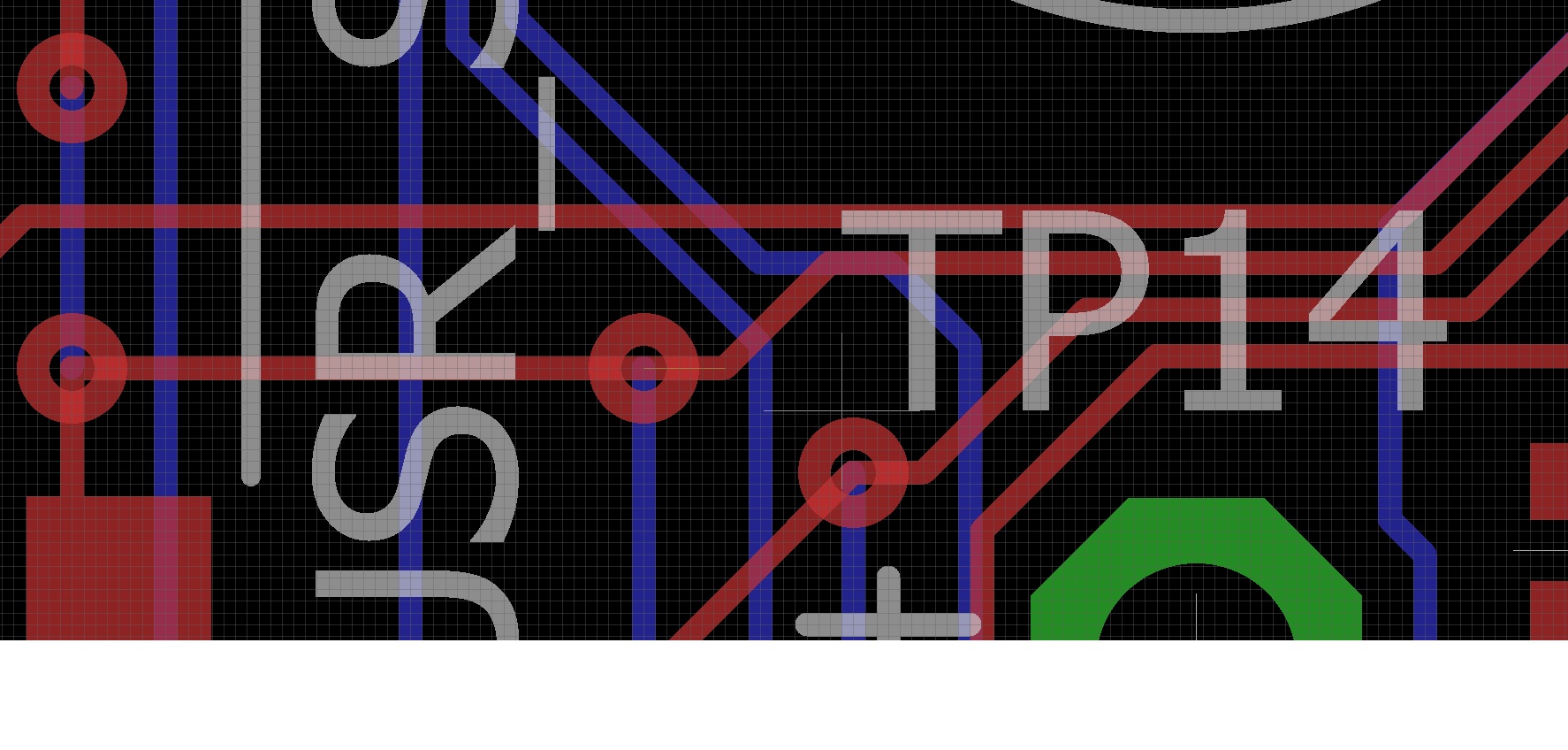

Hi Amit,

See attached



Hello Victor

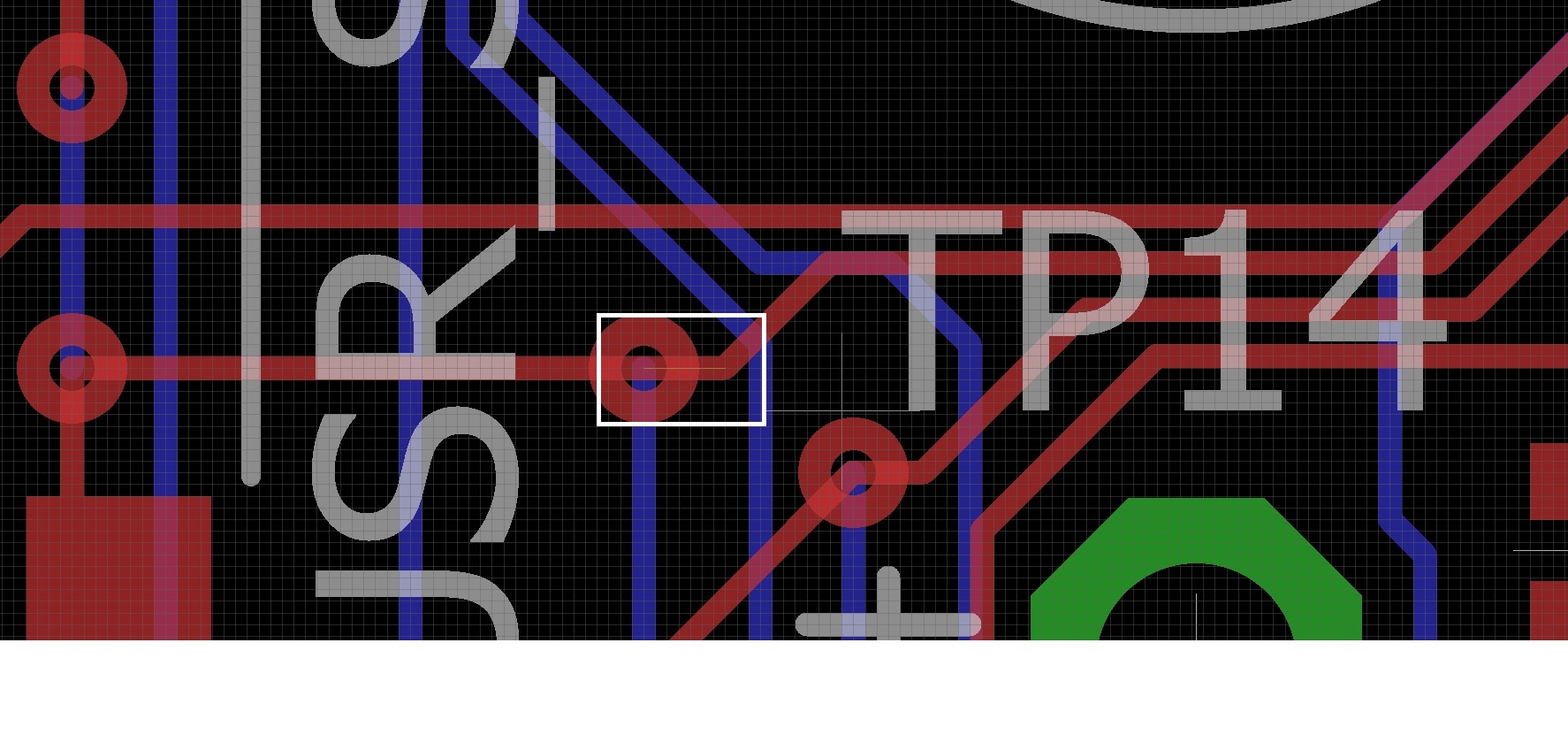

Can you box-mark it?

Regards
Amit

Hello Victor

That is a via where the trace is being fanned out to a bottom layer trace.

Regards
Amit

That's still an airwire that should be cleaned up. IME Eagle is particularly vulnerable to producing theses because of it's grid rule (I think). Still shouldn't be left around though.

Robert

Hello Robert,

This would take time and at this point (very much debatable) mgmt may not want to make any changes to the boards under production as it is not known to be causing an issue (unless forum reports with certainty)

Regards
Amit

It's more of a documentation issue than a board issue. It wouldn't actually change the functionality.

However, having any board escape layout with airwires is sloppy. Mind you, it is possible that the airwire was inadvertently added by the user. It's worth verifying if it is present in the original.

Robert

Hello Robert,

The user has used the layout files to verify the same. So I believe it would be there in the original data base

Regards
Amit

The airwire is identified as PJ1. It is in association with upper, lower and via of the same name. I believe it to be a quirk of Eagle not affecting the production run.
