TM4C1231 burn

Siyavash Asadi

Other Parts Discussed in Thread: TM4C123FH6PM

Hello Ti's experts,

It is about one year that I am using TIVA microcontroller in all of my boards, I didn't have any problem with them at all. but these days strange event occurred with my new boards, after several programming microcontroller doesn't work, but it is work when debugger is connected. I checked RESET PIN it is pulled low by microcontroller about 0.5v but when this problem doesn't occurred it was 3.3V and worked normally. also I changed 4.7k pull up resistor and used stronger pull up about 1K and its begun to work but after several programming microcontroller doesn't work at all even with debugger, in this situation I checked VDDC is 1.8V but microcontroller doesn't work.

about five microcontroller burnt with this behaviour in two boards about one week.

this is my first experience with TM4C1231H6PZIR before that I used TM4C1294, 1230,123 and ... without any problem with similar circuit.

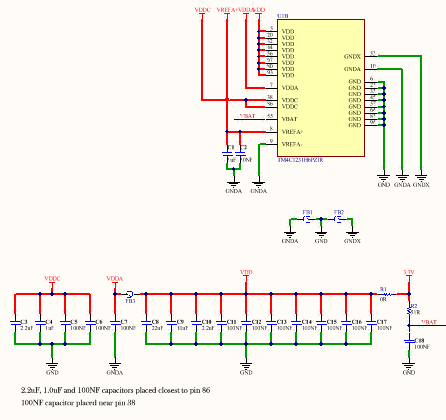

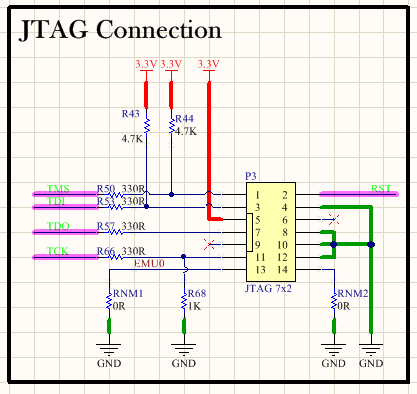

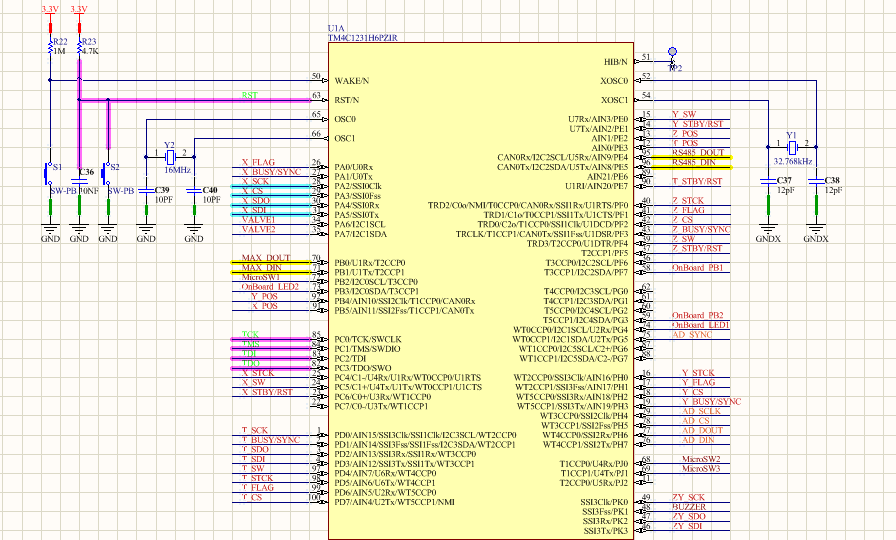

attached is the schematic.

any help would be greatly appreciated,

Siyavash

over 9 years ago

0 Sai Reddy over 9 years ago

TI__Mastermind 22580 points

Siyavash Asadi said:
this is my first experience with TM4C1231H6PZIR before that I used TM4C1294, 1230,123 and ... without any problem with similar circuit.

Does this mean you have designed PCBs with different TM4C123 devices?

Have you referred the schematics for the TI designed boards: EK-TM4C123GXL and DK-TM4C123G? Also did you refer the System Design Guidelines for TM4C123 document?

Thanks,

Sai

0 Siyavash Asadi over 9 years ago in reply to Sai Reddy

Intellectual 665 points

Hello Sai,

Yes I designed several boards based on TM4C12x devices but not exactly this part. for example I designed boards for TM4C1230D5PMIR, TM4C1294NCPDTI3R, TM4C123FH6PM and etc and all of them are OK. I read all documents about schematic and PCB like spma059.

best regards,

Siyavash

0 Amit Ashara over 9 years ago in reply to Siyavash Asadi

TI__Guru**** 244400 points

Hello Siyavash,

Can you describe the use case for the failing boards: As in what it is being used for, what is it connected to?

Regards
Amit

0 Siyavash Asadi over 9 years ago in reply to Amit Ashara

Intellectual 665 points

Hi Amit,

Thanks for reply.

First board was connected to stepper motor, J-Link as a debugger and maybe ground of oscilloscope.

Second board: Capacitive touch board with I2C interface, TFT LCD, XDS100V2 as a debugger and maybe ground of oscilloscope.

Best wishes,

Siyavash

0 Amit Ashara over 9 years ago in reply to Siyavash Asadi

TI__Guru**** 244400 points

Hello Siyvash,

There are no high voltage source that could have caused a BEMF?

Regards
Amit

0 Petrei over 9 years ago in reply to Amit Ashara

Guru 26105 points

Or JTAG footprint accidentally mirrored?

0 Siyavash Asadi over 9 years ago in reply to Amit Ashara

Intellectual 665 points

Hi Amit,
no there wasn't any high voltage source.

best regards,
Siyavash

0 Siyavash Asadi over 9 years ago in reply to Petrei

Intellectual 665 points

Hi Petrei,

there is no way for it.

0 Amit Ashara over 9 years ago in reply to Siyavash Asadi

TI__Guru**** 244400 points

Hello Siyavash

Power up the board again and check VDDC voltage and the TDO on a scope.

If that does not show anything then only thing that I can suggest at this point is to submit the parts back to TI for Failure Analysis.

Regards
Amit

0 Siyavash Asadi over 9 years ago in reply to Amit Ashara

Intellectual 665 points

Hello Amit,
I demontage the part and change it with new part. I checked VDDC it was 1.2V but I don't remember TDO voltage. I will montage them again and let you the result.

thanks for your support. TI has the best community forum.

Regads,
Siyavash

0 Amit Ashara over 9 years ago in reply to Siyavash Asadi

TI__Guru**** 244400 points

Hello Siyavash,

If the TDO shows a toggle on a scope when a power cycle is initiated, that would be useful information.

Regards
Amit

0 cb1 over 9 years ago in reply to Amit Ashara

Guru 47900 points

Amit Ashara said:
If the TDO shows a toggle on a scope when a power cycle is initiated, that would be useful information.

Indeed - as would the clear description/explanation of the (meaning) of TDO Toggle vs. TDO fixed - upon power up...

0 Amit Ashara over 9 years ago in reply to cb1

TI__Guru**** 244400 points

Hello cb1,

A toggling TDO tells if the device has locked itself out (some of the errata where device becomes non-functional use this as a method for lock out detection)

Regards
Amit

0 Siyavash Asadi over 9 years ago in reply to Amit Ashara

Intellectual 665 points

Hello Amit,
I used it again in my new board and I checked what you said,

VDDC=1.27V
TDO=3.3V fixed
TDI=3.3V and toggling when try to debug
TCK=300mV and toggling when try to debug
TMS=840mV
TDO=3.3V and dont toggle at all
RESET=2.2V and dont toggle at all

Best regards,
Siyavash

0 Amit Ashara over 9 years ago in reply to Siyavash Asadi

TI__Guru**** 244400 points

Hello Siyavash,

VDDC=1.27V is outside the value range I have seen. I just want you to power up the device and w/o connecting the debugger, connect TDO to the Scope....

Regards
Amit

0 Siyavash Asadi over 9 years ago in reply to Amit Ashara

Intellectual 665 points

Hello Amit,

about VDDC it was my fault it is 1.21V.

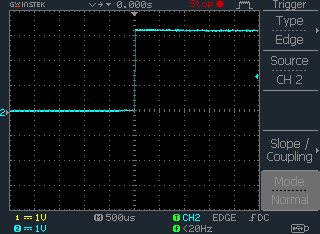

I did what you said, power up device without debugger, and switch power enable of switching regulator from low to high. attached file is TDO signal in Scope.

best regards,

Siyavash

0 Amit Ashara over 9 years ago in reply to Siyavash Asadi

TI__Guru**** 244400 points

Hello Siyavash

I think now it would be time to submit the device back to TI for failure analysis

Regards
Amit

0 Siyavash Asadi over 9 years ago in reply to Amit Ashara

Intellectual 665 points

Hello Amit,

Not only for this Microcontroller this situation happened but also for 3 parts happened too.
is there any way to check that it is original or fake?
there isn't any TI market to submit the device back.

Best wishes,
Siyavash.

0 Amit Ashara over 9 years ago in reply to Siyavash Asadi

TI__Guru**** 244400 points

Hello Siyavash

There are some really good fakes (as far back as 1998 when I did see some DSP clones). There is contact TI on the web page which can help you with device submission process for failure analysis

Regards
Amit
