How to use Ethernet port on TM4C1294XL

James Shadow

Other Parts Discussed in Thread: LMFLASHPROGRAMMER

I'm trying to follow the tutorial that is included with my TIVA. It uses exosite.com and says when I plug in an Ethernet cord it should activate indicator leds. It doesn't light up anything. Please help.

over 8 years ago

0 Amit Ashara over 8 years ago

TI__Guru**** 244400 points

Hello James

Is your board connecting to the exosite server as can be seen in the UART terminal?

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

No it isn't connecting to the internet at all.

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

No it won't connect to the internet at all.

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

Does it get an IP address? If not can you confirm that the MAC address is correctly programmed by connecting the LMFlashProgrammer application and read the User Registers.

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

How do I connect LMFlashProgrammer? Sorry I'm pretty new to this...

0 James Shadow over 8 years ago in reply to James Shadow

Prodigy 170 points

I actually figured it out. So the MAC address is the same as the one printed on the board.

0 s s9 over 8 years ago in reply to James Shadow

Prodigy 40 points

Hello James,

You can download the LMFLASH PROGRAMMER from this link:

and if you are new to this launchpad then follow the workbook which you can find in this link:

Regards,

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

What about the IP address. Does it get printed on the console or when you type "stats"?

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

What console are you referring to?

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

A UART terminal application like TeraTerm.

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

I downloaded TeraTerm but it won't let me type anything. I connected to COM4 which is the port for my TIVA, but when I try and type nothing happens.

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

If you press the reset on the board does the Tera Term show anything? If not, then check if the baud rate setting, etc are correct AND of course check that you have flashed the binary for the qs_iot.

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

So I flashed qs_iot, I didn't know I had to do that. Now when I go to ti.exosite.com the board disappeared and when I try and add the device it just loads forever and won't add it.

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

That is a question for exosite support on Exosite web portal. But does the TearTerm now show that the device got an IP address?

0 James Shadow over 8 years ago in reply to James Shadow

Prodigy 170 points

Ok so I figured out that problem too. The leds are blinking which means Ethernet activity. When I go to the Exosite website it still says my board is offline. They said it may have something to do with my networks firewall. I am a college student so I have no control over that. However, I added the MAC address of the board to my allowed devices and it has been assigned an IP address.

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

Are you connected via a Proxy Server to the internet?

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

I don't know. I'm connected to my college's internet. I haven't manually had to set up any proxies for any of my devices so I would assume no..

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

Check with your college network administrator if there is a proxy server to connect to the internet.

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

Ok, they do not use a proxy.

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

In the TeraTerm did you try the command "activate" to check if it connects?

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

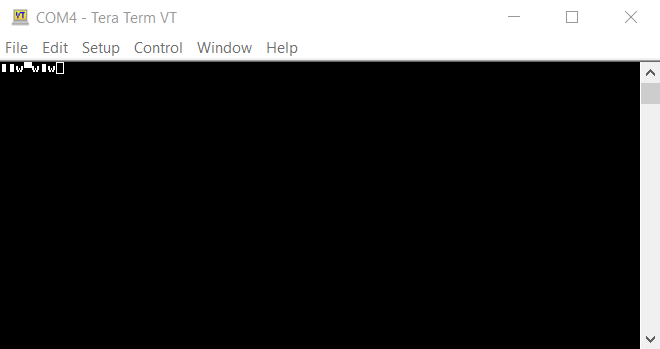

When I type anything into TeraTerm it shows random characters. Like this:

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James,

Have you changed the COM port setting to 115200 bps in the Windows Device Manager and in Tera Term?

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

Alright so I set the Baud correct and now it is displaying words. When it tries to connect it says "No CIK could be obtained" and when I type activate it says "Sync Failed"

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

It means that the CIK has not been reactivated on the Exosite portal. Please activate the board at Exosite web portal.

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

How do I activate it? I found where I can reenable it which gives me a new CIK, but nowhere where I can activate it. On the Dashboard screen it says "This device has not yet been activated or does not exist. Please activate your device or confirm the device RID and try again."

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

If a new CIK is been generated then "activate" command in the TeraTerm should work.

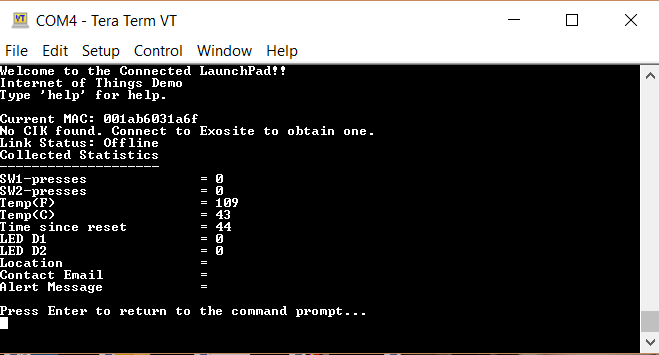

Can you type "stats" and send the result of the same as a snapshot?

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

When I type activate it says "No CIK could be found"

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James,

It seems that the IP address has not been acquired. The link status shows "Offline". It seems IP address is not getting acquired.

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

My school has a portal to add MAC addresses to allow them to connect to the internet. On that portal I added the MAC address of my TIVA and it assigned a IP address. So how would I get it to connect. Every device I've had put on this website has automatically connected so what should I do to connect it?

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

I believe the portal is the proxy server and that is what is required to be entered in the command line option "setproxy". The syntax is setproxy SERVERNAME PORT

0 James Shadow over 8 years ago in reply to Amit Ashara

Prodigy 170 points

I don't have a proxy though.

0 Amit Ashara over 8 years ago in reply to James Shadow

TI__Guru**** 244400 points

Hello James

Then it should have acquired the IP address and connected to the Exosite Server. I am not sure what could be the issue here.
