EK-TM4C1294XL: UART problem

Firm/I do not use your MCU - yet should you be using an "LPad or Eval board" - does not UART_0 tie to that board's ICDI MCU - and might that cause the issue you note? (should UART_0 NOT tie to the ICDI - my theory loses support.)

From a quick code review - your treatment of UART_0 very nicely agrees w/UART_4 - and that "parallelism" should yield success.
It is rarely reported that UART_0 suffers "issues" - most always all (other) UARTs prove far more challenging...

cb1

I am well aware of the comments.( does not UART_0 tie to that board's ICDI MCU - and might that cause the issue you note? )

I use UART4 with a USB 2 serial converter,
UART0 in question is using board's ICDI.

To explain the more detailed situation,
In case of UART4 that operates normally, it receives 8 bytes normally from PC.
However, in UART0 (interrupts enter), only 1 bytes can be received.

I don't understand this and confused.

Karls,
First PLEASE PLEASE edit your post, and paste the code using the </> on the Rich Formatting options. It is too difficult to read someone else's code with no proper formatting.
Second: the only place I see you sending bytes are already inside the UART interrupt. You need to start that transmission somewhere else.
Next: if you will use the system to receive bytes, also enable RT interrupt, otherwise there is a big chance that you will not receive the last few incoming bytes until the next time the external device sends you something.
Regards
Bruno

Friend Bruno - clearly your directive to, "Paste the code via vendor's approved method" proves useful.

However - poster notes "Success w/UART_4" and my (reasonable) review of his code showed great "parallelism" between that (succeeding, UART_4) code and his (failing, UART_0) code.     So - unless you've "missed that evidence" - how can you explain the variation in performance - between UARTs?     That's the (more) central issue - is it not?

(now to your "new logo" - 2 staff members have (almost) recovered from "twitch eye & sinus drainage" - and we've prep'ed special sticky notes - to prevent "further view & recurrence of eye distress."     (has Portugal not yet instituted "standard art practices" for 3rd graders?)

cb1_mobile said:

So - unless you've "missed that evidence" - how can you explain the variation in performance - between UARTs?

I actually don't trust that evidence. UART0 should have failed as well, so I'm assuming it hasn't just because the PC sent something which triggered the RX... but I won't give it a deeper analysis for the time being.

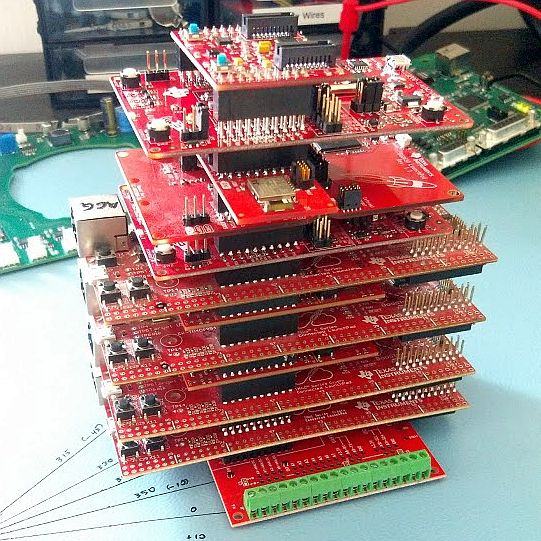

I don't like that logo either! I was organizing my stuff before going on holidays, and upon seeing so many launchpads, decided to put them together and photograph. The image triggered me a sentence: "Someone suggested me to increase the stack, and so I did". And for I had nothing better to do with the picture, I'll leave it as the "avatar" for the time being!

Every Ophthalmologist (in the west) thanks you - and I "withdraw" (for now) my critique of "Portugal's elementary grade art teachings...")

Our "difference" in diagnostic methods may prove interesting - you "distrust poster's evidence" - while I "welcome & credit it" - and believe greatly in the power of "patterns yielding repetition."

You appear to be "beating" the (usual) Euro exodus by a month - fare well (and do pray for staff's "visual healing.")

Thanks for your good advice(paste the code using the </> on the Rich Formatting options)

Bruno Saraiva said:
Second: the only place I see you sending bytes are already inside the UART interrupt. You need to start that transmission somewhere else.

I do not have the source code attached above, but I definitely started transmitting from elsewhere and started sending interrupts.
(It was confirmed that a transmission interrupt was generated.)

I do not know what the cause is, but I have succeeded in sending and receiving data from uart0 through modbus.
But I was again confused.(This is not a problem with UART0 and UART4 at this time,  but focuses only on UART0.)
The problem is that 7 bytes should be sent when sending, but 18 bytes are sent in my case.

This seems to be something wrong.

I will attach the source code again below.

//==============================================================================
//	UART Initialize
//==============================================================================
void	UART_INIT(void)
{
	SysCtlPeripheralEnable(SYSCTL_PERIPH_UART0);
	SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOA);

	//--------------------
	// UART PIN 기능 설정
	//--------------------
	GPIOPinConfigure(GPIO_PA0_U0RX);
	GPIOPinConfigure(GPIO_PA1_U0TX);
	GPIOPinTypeUART(GPIO_PORTA_BASE, GPIO_PIN_0 | GPIO_PIN_1);

	UARTConfigSetExpClk(UART0_BASE, ui32SysClock, 115200,
						(UART_CONFIG_WLEN_8 | UART_CONFIG_STOP_ONE |
						 UART_CONFIG_PAR_NONE));


	//------------------------
	//	UART interrupt enable
	//------------------------
	IntEnable(INT_UART0);
	UARTIntEnable(UART0_BASE, UART_INT_RX);
}


//==============================================================================
//		UART 0 interrupt
//==============================================================================
void	UART0_IntHandler(void)
{
	uint32_t ui32Status;

	//	Get the interrupt status
	ui32Status = UARTIntStatus(UART0_BASE, true);

	//	Clear the asserted interrupt
	UARTIntClear(UART0_BASE, ui32Status);

	if(ui32Status & UART_INT_RX)
    {
		while(UARTCharsAvail(UART0_BASE))
		{
			COMM[UART0].RxD_BUF[COMM[UART0].RxD_BUF_PTR] = UARTCharGetNonBlocking(UART0_BASE);
			COMM[UART0].RxD_TIMEOUT_CNT = 0;

			if(++COMM[UART0].RxD_BUF_PTR >= 200) COMM[UART0].RxD_BUF_PTR = 0;
		}
    }

    else if(ui32Status & UART_INT_TX)
    {
		if(COMM[UART0].TxD_BUF_PTR > COMM[UART0].TxD_END_PTR)
		{
			COMM[UART0].TxD_BUF_PTR = 0;                           // step 2 : when i break here, COMM[UART0].TxD_BUF_PTR = 18...(7 should be normal,
                                                                                                                                    I don't understand this part)
			UARTIntDisable(UART0_BASE, UART_INT_TX);
			UARTIntEnable(UART0_BASE, UART_INT_RX);
			GPIOPinWrite(GPIO_PORTH_BASE, GPIO_PIN_0, RESET);
		}
		else
		{
			while(UARTSpaceAvail(UART0_BASE))
			{
				UARTCharPutNonBlocking(UART0_BASE, COMM[UART0].TxD_BUF[COMM[UART0].TxD_BUF_PTR++]);
			}
		}
    }
}


//==============================================================================
//		Send message
//==============================================================================
void	SEND_MSG(u08 tx_ptr)                 //It is not visible in the source code, but this function is called when reception is complete.
{
	u16 crc_word;

	crc_word = CRC_16(COMM[UART0].TxD_BUF, tx_ptr);
	COMM[UART0].TxD_BUF[tx_ptr++] = crc_word & 0xFF;
	COMM[UART0].TxD_BUF[tx_ptr]   = crc_word >> 8;

	COMM[UART0].TxD_END_PTR = tx_ptr;

	COMM[UART0].TxD_BUF_PTR = 0;                // step 1 : when break point here, COMM[UART0].TxD_BUF[o] ~ [6] = 0x01, 0x03, 0x02, 0x00, 0x14, 0xb8, 0x75 and
                                                                              COMM[UART0].TxD_END_PTR = 6
	UARTCharPut(UART0_BASE, COMM[UART0].TxD_BUF[COMM[UART0].TxD_BUF_PTR++]); // as i told, tx tansmit start here
}

//==============================================================================
//  Main
//==============================================================================
int
main(void)
{
	// Run from the PLL at 20 MHz.
        ui32SysClock = SysCtlClockFreqSet((SYSCTL_XTAL_25MHZ |
    					SYSCTL_OSC_MAIN |
    					SYSCTL_USE_PLL |
    					SYSCTL_CFG_VCO_480), 20000000);
        IntMasterEnable();

	while(1)
	{
		WaitUntilInt();
	}
}

Is the interrupt handler wrong?  help me plz
