TM4C1294KCPDT: Question on Reel Width

Randhir Kalsi

Part Number: TM4C1294KCPDT

Hello team,

Please see below question from the customer:

We've got to but a pick and place reel for the TM4C1294KCPDTI (128 pin TQFP). I can't find the width of the reel in the data sheet or other TI documentation.

Would you please let me know the reel width?

over 7 years ago

0 cb1_mobile over 7 years ago

Guru 117855 points

If this info proves "challenging" to agents here - might you review such "Reel Widths for (other) 128 pin TQFP devices, here?" (usually they converge to a common value...)

Suppliers of such "Reels" may also provide such data... It is suspected that the "Pick & Place" vendor will (also) supply, "Normal/Customary" such measurements...

0 Charles Tsai over 7 years ago in reply to cb1_mobile

TI__Guru**** 191106 points

Hi cb1,
Thanks for the tips.

Hi Randhir,
I don't know the answer. I will try to find out. Please find below user's guide that provides some information.

www.ti.com/.../snoa403i.pdf

0 Charles Tsai over 7 years ago in reply to Charles Tsai

TI__Guru**** 191106 points

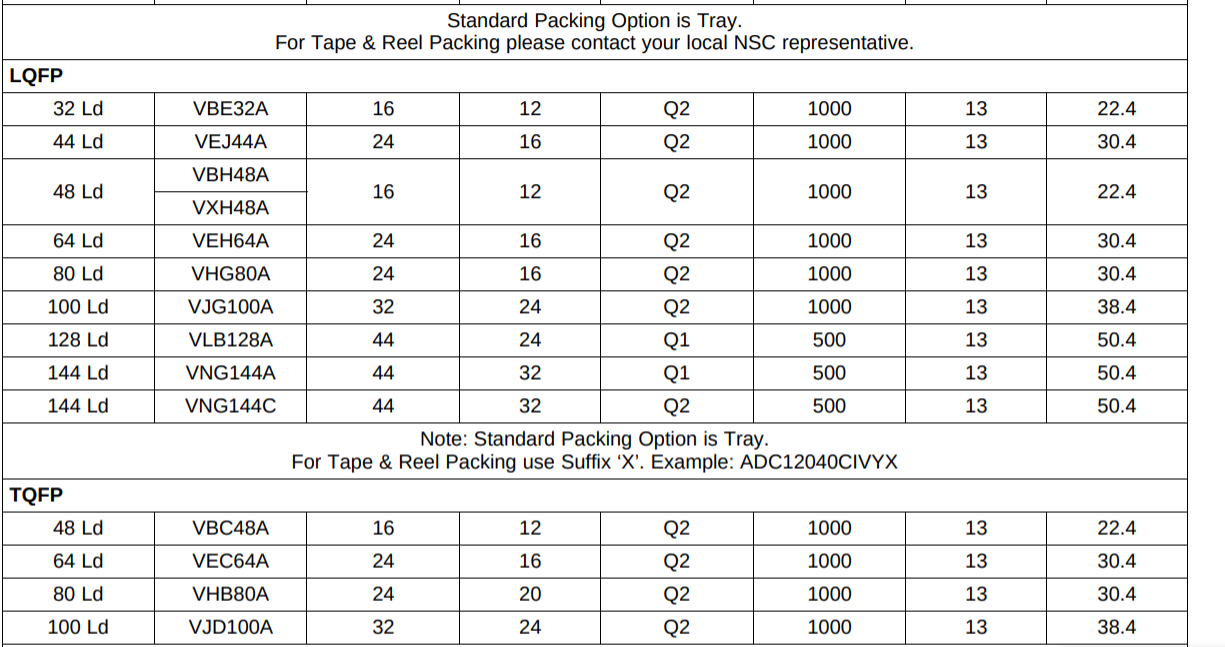

The user's guide does not list 128 TQFP. However, if you look at the other TQFP packages, i.e. 48, 64, 80 and 100 they all have the same reel widths as the LQFP. So I tend to think for 128 TQFP the reel width is 50.4mm.
