RM46L852: Proto Board Headers

Marc Hewitt

Part Number: RM46L852

Hello!

I have a quick question. I found a useful image (somewhere) that tells all the alternative functions of J10 and J11:

Can you help me with two things?

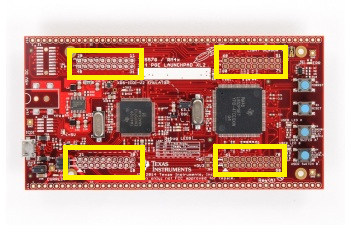

First one, and most important is: IS THERE ANY IMAGE LIKE THIS THAT TELLS ABOUT J2, J3, J4, J5, J6, J7, J8 AND J9 HEADERS (THE ONES MARKED ON THE IMAGE BELLOW):

Another question I have, what does the +5V/11.2B mean on J11 on the image PROTO BOARD HEADERS? What is that 11.2B?

Thanks!

over 6 years ago

0 Miro over 6 years ago

TI__Mastermind 21425 points

Hello Marc,
Please download schematic diagram from here: processors.wiki.ti.com/.../LAUNCHXL2-RM46
All headers are described in the schematic file. The one above is copied from schematic diagram.
+5V/11.2B means as follows: +5V is the signal net label. This pin is connected to all pins/signals that has the same label. 11.2B means that next
instance of +5V is at page 11, sector 2 (horisontal)-B(vertical). On some schematics, instead of only one instance (11.2B), all pages that contains this signal are shown.

Best regards,
Miro

0 Marc Hewitt over 6 years ago in reply to Miro

Prodigy 180 points

Thank you Miroslav! :)

Haven't seen that! This layout is perfect! :)
