TM4C123GH6PM: HARDWARE CONNECTIONS FOR K350QVGA DISPLAY

Monali Mandlik

Part Number: TM4C123GH6PM

I M WORKING ON USER INTERFACE DISPLAY APPLICATION USING TEXAS INSTRUMENT.

CAN YOU PLZ PROVIDE ME THE HARDWARE DETAILS TO CONNECT K350QVGA TOUCH SCREEN DISPLAY WITH TIVA EVALUATION KIT (TM4C123GH6PM)

over 6 years ago

0 Charles Tsai over 6 years ago

TI__Guru**** 191906 points

Hi,

You need to use the TM4C129 to interface to the K350QVGA display because only TM4C129 has the LCD interface. The TM4C123 doesn't have the LCD interface.

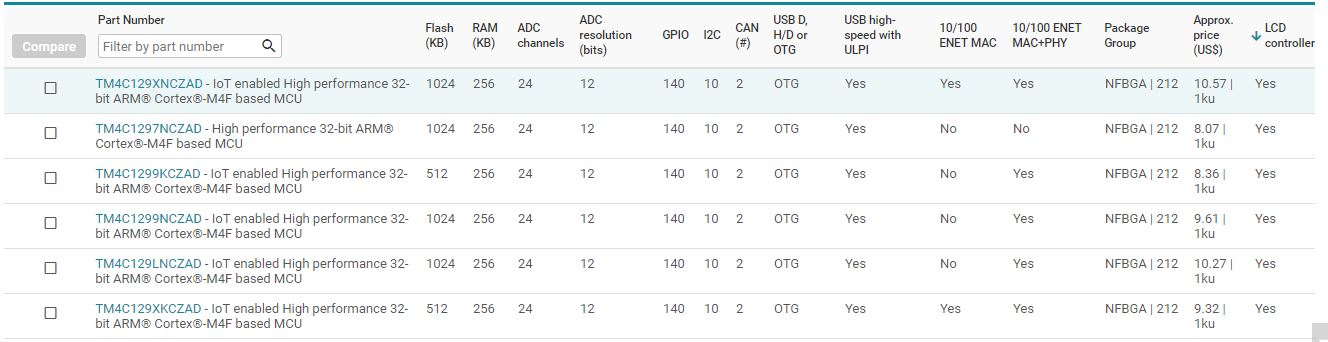

Below is the user's guide to the TM4C129 development board that contains the K350QVGA. Please note only below TM4C129 parts contain LCD interface.

http://www.ti.com/lit/ug/spmu360a/spmu360a.pdf

0 Monali Mandlik over 6 years ago in reply to Charles Tsai

Prodigy 110 points

can i use C2000 series and K350QVGA display for the above application

0 Charles Tsai over 6 years ago in reply to Monali Mandlik

TI__Guru**** 191906 points

HI,
I'm not familiar with C2000 device. You will need to ask your question in C2000 forum for best support. If you are considering another MCU, I will ask you to first look at TM4C129 since it is in the same family as TM4C123. If you are familiar with TivaWare for TM4C123 then it is the same TivaWare to use for TM4C129.
