CCS/TM4C1294NCPDT: How does TM4C129 achieve 100M Ethernet communication speed?

Susan Yang

Part Number: TM4C1294NCPDT

Tool/software: Code Composer Studio

Dear team

The BUFFER type of EN0TXOP / EN0TXON / EN0RXIP / EN0RXIN of TM4C129 is TTL. The maximum transmission rate of TTL type signals is 20 ~ 30Mhz.

So how does TI ’s TM4C129 achieve 100M communication rate?

BR,

susan

over 5 years ago

0 Bob Crosby over 5 years ago

TI__Guru 72500 points

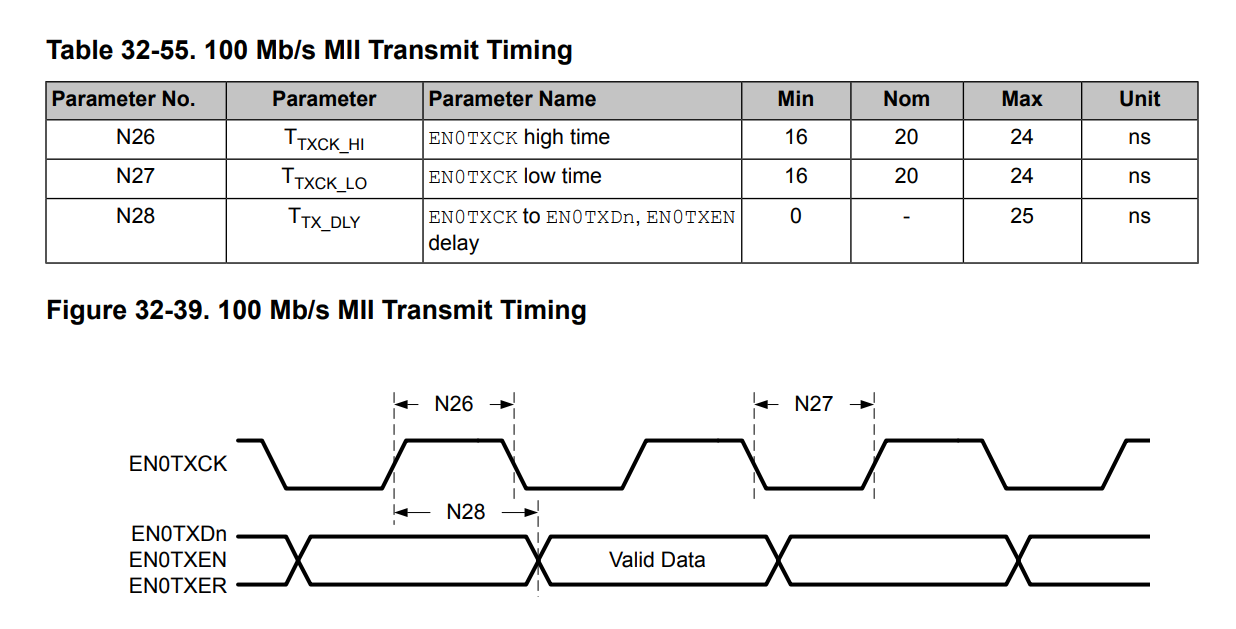

While the buffer type is described at TTL on the TM4C129 devices, they are CMOS push/pull with TTL compatible levels. They are actually much faster than the original TTL logic. See the electrical specifications section near the end of the datasheet.

0 Susan Yang over 5 years ago in reply to Bob Crosby

TI__Genius 9955 points

It helps me a lot. Thank you very so much!
