CCS/TMS570LS3137: Test connection

user6343407

Part Number: TMS570LS3137

Tool/software: Code Composer Studio

Hi,

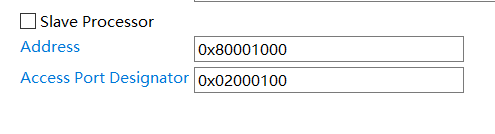

I'm testing connection with demo board,I found an option-"Access Port Designator" in target configuration,what does it mean?And why is it set to 0x02000100?

Thanks.

over 5 years ago

0 JohnS over 5 years ago

TI__Guru**** 162305 points

This is related to the debug subsystem that is on the device. This device is configured such that the Cortex R core is at that address on the debug access port. The address and designator values should not be changed.

Basically the access port designator is just a way for the driver to know what AP number is used for the AHB and the APB.

Regards,

John

0 user6343407 over 5 years ago in reply to JohnS

Intellectual 730 points

Hi John,

Thank you for your reply,does it mean the value of address 0x80001000 is 0x02000100?When CCS reads a value of 0x02000100,will it connect to the demo board?

0 JohnS over 5 years ago in reply to user6343407

TI__Guru**** 162305 points

I am not an expert on it but I believe the address on the bus for the R4 is 0x80001000 and the ID is 0x02000100. I am not sure where the ID is stored.

John

0 user6343407 over 5 years ago

Intellectual 730 points

So what are the address and id used for?

0 user6343407 over 5 years ago in reply to JohnS

Intellectual 730 points

What are the address and AP number used for?

0 JohnS over 5 years ago in reply to user6343407

TI__Guru**** 162305 points

The debug software has to know this informaiton to be able to access the components on the device.
