CCS/TM4C123GH6PM: TM4C123GH6PM

Javad Baig

Tool/software: Code Composer Studio

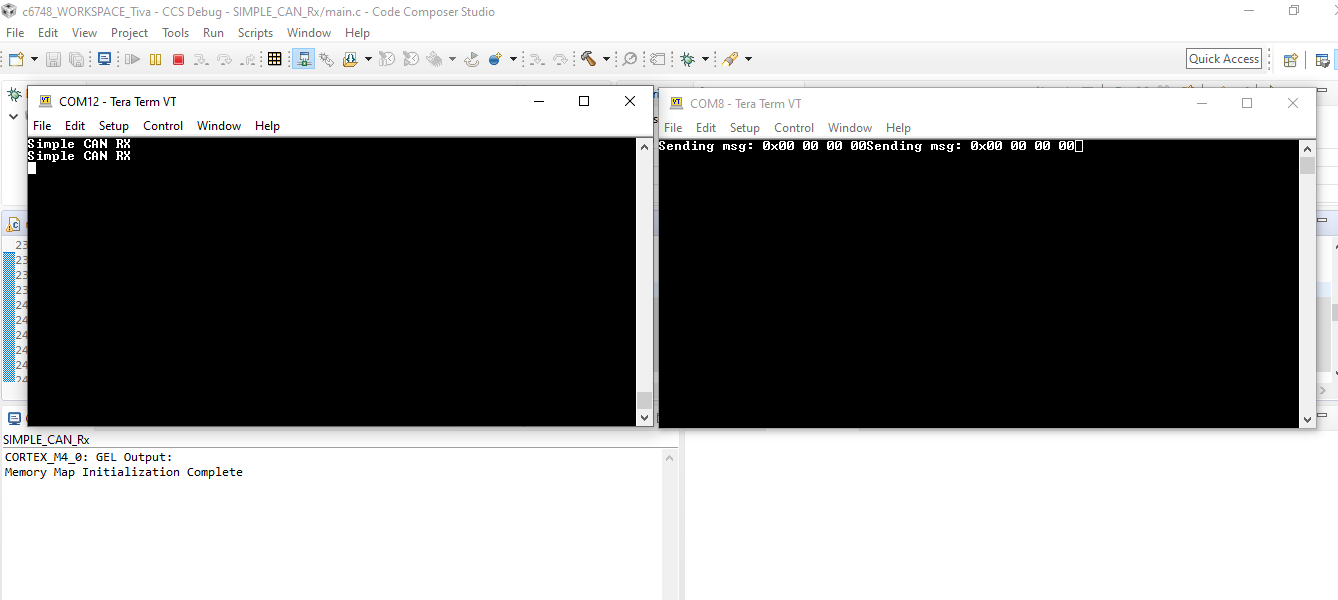

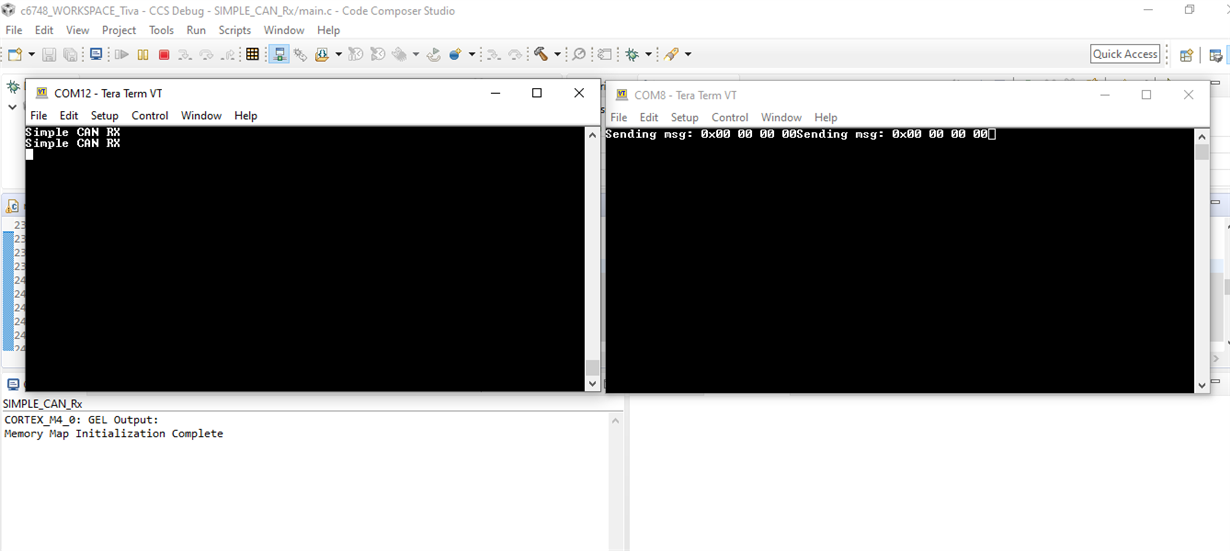

I am trying the example prg of simple tx and rx program of CAN protocol which is available in Tivaware, I am using 120ohm resistor in this experiment, I have made the connection properly and bit rate for both tx and rx is 10000. Below attached is the output which i am getting, kindly let me know the necessary changes need to done

over 5 years ago

0 Ralph Jacobi over 5 years ago

TI__Guru*** 135355 points

Hello Javad,

If you are certain you have the hardware connections made correctly, then I would recommend you get the firmware from our new CAN app note and use that to test how to send messages and then you can customize it as needed: https://www.ti.com/lit/pdf/spna244

0 Javad Baig over 5 years ago in reply to Ralph Jacobi

Prodigy 240 points

Thank you very much I got the output
