TMS320F28388D: Queries about using Ethernet in SYS/BIOS

pranay r

Part Number: TMS320F28388D
Other Parts Discussed in Thread: C2000WARE

Hello community!

I'm using F28388D control card for my product development.I have ported sys/bios and successfully.

My Requirement is to have Ethernet and USB working with SYS/BIOS on CPU1 and on CPU2 we need to use different FW Application with RTOS.

I see that there are no SYS/BIOS examples for Ethernet.

How do I get started with Ethernet functionality implementation & validation on CPU1 ?

is my requirements possible ?

Any Inputs on Ethernet will be helpful.

Thanks and regards,

Pranay.

over 4 years ago

0 Whitney Dewey over 4 years ago

TI__Guru 54745 points

Hi Pranay,

Just to clarify--CPU1 and CPU2 cannot access Ethernet. You can only use the CM for interacting with Ethernet. There are some examples in C2000Ware for Ethernet on the CM although as you've pointed out, they do not have SYS/BIOS integrated already. I would recommend, getting familiar with the example as is and then trying to integrate its functionality into a SYS/BIOS project.

USB can be accessed by both CPU1 and CM, so you have a choice as to what core interacts with the USB hardware. Again, we don't have any SYS/BIOS examples for it in C2000Ware, but it should be possible to integrate USB code into a SYS/BIOS-based project.

Whitney

0 pranay r over 4 years ago in reply to Whitney Dewey

Intellectual 390 points

Hi Whitney,

Thanks for the response.

I've been following below links for using LwIP on CM and GPIOs configurations on CLA1.

- " e2e.ti.com/.../ccs-tms320f28388d-ccs-project-example-for-f28388d "

- " ">e2e.ti.com/.../tms320f28388d-cannot-get-enet_lwip-example-to-run"

I'm using latest c2000ware - C2000Ware_3_04_00_00

Do I need to follow the suggested changes in threads above ?

However, in cm_common_config_c28x example, I added _FLASH in predefined symbols and selected respective flash linker file and also added while(1); in the end of main() and then debug the application.

Next I stopped debugging and in enet_lwip project selected CM Core in debug configurations and tried debugging but I see that control is not coming out from function Ethernet_init(const unsigned char *mac);

Instruction --> pInitCfg = Ethernet_initInterface(initInterfaceConfig);

So far I have not made any changes in enet_lwip source code as suggested in above thread.

Do I need to make respective changes if needed to make lwip run in Standalone and debug mode?

Update 1:

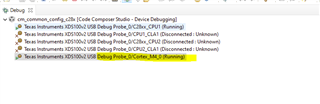

So I added LED Blinking in while(1) loop of cm_common_config_c28x example and flashed that to CLA1/CPU1 and then I tried flashing enet_lwip example to CM core I observed that CPU1 flash is also getting erased when I tried flashing Cm.

Is this expected ? Any HW changes required for flashing CPU1 or CM ?

Update 2:

I'm able to bring up LwIP on CM successfully, The mistake I as doing is loading both Flash separately, Instead of that need to flash to CM from CPU1 debug configurations window, i.e., First running cm_common_config_c28x on CPU1 in debug mode and then select CM Core from below window and Load program of enet_lwip on CM and then right click on CM Core and connect to target.

In this way I'm able to ping successfully.

Queries:

1. Can we enable RTOS on CM Core for running lwip ? I see that there is a enum NO_SYS, If we disable this RTOS functionality with lwip on CM core will work ?

2. If I ping using "ping -l 30 -n 100 192.168.0.4" I'm getting request timed out error ie., If no. of bytes data is more than 20, I'm unable to ping. Is this expected ? How do i fix this ?

3. I need to send some data in the form of API (For Ex: 11 22 33 44 55) - a series of continuous Bytes How do achieve this ? (Need to explicitly use Socket programming ? )

4. Further Received API shall be pushed to CPU1 for processing. I can achieve it via IPC right ? Any Documents ?

5. Lastly, I need to perform field Firmware updates for all 3 cores - CPU1, CPU2 and CM. I believe it can be done. Any documents would be helpful.

Thanks and regards,1

Pranay.

0 Whitney Dewey over 4 years ago in reply to pranay r

TI__Guru 54745 points

I've copied our Ethernet expert on this thread. He should be able to help with the questions about the example and lwip.

As for #5, field updates are definitely possible. I'd advise you to study the boot ROM chapter of the technical reference manual. We also have a serial flash programming app note that describes how to do a firmware update using SCI--even if you don't want to use SCI, the same principle can be used for other peripherals.

Whitney

0 pranay r over 4 years ago in reply to Whitney Dewey

Intellectual 390 points

Hello whitney,

Any updates ? I have not received any inputs from ethernet expert yet, can you please check.

--Pranay.

0 Siddharth Deshpande over 4 years ago in reply to pranay r

TI__Mastermind 37045 points

Pranay,

Sorry for the late response. Here are the answers to your queries.

1. Are you running any OS on the CM side now? This enum is NO_SYS =1 indicates that lwIP stack is used without any OS-awareness (no thread, semaphores, mutexes)

2. Can you check the lwip_stats variable to see where the packets are getting lost? Also , you can check Ethernet_rxInterruptCount to see if the number of packets received.

3. Which version of C2000Ware are you referring? There is a UDP based example added in ver 4.00.00.00 of C2000Ware which transmits data stored in a buffer. You can refer this example to send the series of bytes.

4. For IPC, you can refer the examples provided in C2000Ware in folder C:\ti\c2000\C2000Ware_4_00_00_00\driverlib\f2838x\examples\c28x_cm\ipc. Also, you can refer the following thread

https://e2e.ti.com/support/microcontrollers/c2000-microcontrollers-group/c2000/f/c2000-microcontrollers-forum/943195/ccs-tms320f28388d-ipc-communication-from-cm-to-cpu1

Best Regards

Siddharth

0 pranay r over 4 years ago in reply to Siddharth Deshpande

Intellectual 390 points

Hi Siddharth,

Thanks for your response.

1. Yes, I'm not using any OS as of now NO_SYS is define as 1, But I want to use RTOS for my development, So what and all I need to perform to achieve that. I tried editing NO_SYS = 0 but I see there are a bunch of errors, not tried debugging further tho.

2. I'm unable to find Ethernet_rxInterruptCount and lwip_stats variable in enet_lwip_udip project that I found in c2000 v 4.00.00...

3. I'm able to import UDP example found in "C:\ti\c2000\C2000Ware_4_00_00_00\libraries\communications\Ethernet\third_party\lwip\examples\enet_lwip_udp" folder. But I'm unable to receive data being sent from my application but I see breakpoint hitting lwIPEthernetIntHandler() when i send data using same application, Not sure where is the issue.

4. Thanks for the link I will try to implement that and keep you posted incase of queries.

let me know if I'm missing anything and what needs to be done to achieve data transfer between Ethernet server and client.

--Pranay

0 Siddharth Deshpande over 4 years ago in reply to pranay r

TI__Mastermind 37045 points

Pranay,

1. We haven't tested the lwip example with any OS running so not sure what changes could be required.

2. Ethernet_rxInterruptCount is a variable in the CM driverlib (ethernet.c) whereas the lwip_stats is a global variable available in the LWIP stack (stats.c)

3. How are you testing this example? This example uses port 28000 and use a rx callback to read the received data. There are keywords 'START' and 'STOP' used to initiate and stop the data transmission.

Please refer the following thread on the details.

https://e2e.ti.com/support/microcontrollers/c2000-microcontrollers-group/c2000/f/c2000-microcontrollers-forum/1055954/tms320f28386s-ping/3907471#3907471

Best Regards

Siddharth

0 pranay r over 4 years ago in reply to Siddharth Deshpande

Intellectual 390 points

Hi Siddharth,

1. Any other I can get help I'm facing a bunch of errors and seems like library dependencies if I enable respective macro?

2. I haven't made any changes regarding ping issue, only change is project, Now I'm able to ping properly. No Issues so far. Tried with lengths upto 300 Bytes.

3. I'm able to do this, established a connection between client and server using UDP with single socket #28000.

-i. Now My requirement needs communication between 2 sockets, How do I achieve creating multiple sockets ?

-ii. I want to use TCP/IP for communication not UDP. Can you point me out to respective links.

-iii. I tried calling udp_bind(g_upcb, IP_ADDR_ANY, 29000); in my_udp_init() function but this is breaking working communication with socket 28000 aswell.

4. What is the expected speed/throughput if we use lwip ?

--Pranay.

0 Siddharth Deshpande over 4 years ago in reply to pranay r

TI__Mastermind 37045 points

Hi,

1. Are the errors related to lwip stack or the interface file? Can you share the compilation log?

2. What was the issue earlier w.r.t the ping issue? Did you do any code changes or setup changes?

3. For TCP, you can refer the file tcp.c located at <C2000WareInstallDir>\libraries\communications\Ethernet\third_party\lwip\lwip-2.1.2\src\core\tcp.c . The file header of this file provides instructions for TCP implementation.

4. You can refer the following thread

https://e2e.ti.com/support/microcontrollers/c2000-microcontrollers-group/c2000/f/c2000-microcontrollers-forum/895034/tms320f28388d-f2838x-ethernet

The throughput is ~33mbps with the LWIP stack.

Best Regards

Siddharth

0 pranay r over 4 years ago in reply to Siddharth Deshpande

Intellectual 390 points

Siddharth,

1. Please find the attached console.txt file. Let me know If anything I can do to achieve this requirement of porting RTOS on to CM.

Fullscreen 1200.Console.txt Download
