TMS320F28388D: CPU2 cannot detect ADC interrupt

Fabio Rastrello

Part Number: TMS320F28388D
Other Parts Discussed in Thread: SYSCONFIG

Hi,

I have perfectly the same issue, but it is not clear for me how to fix it.

I am using SysConfig in CPU1 to configure ADCA and ADCB, ePWM1/2/6/7/8/ and ADCA/B Interrupts, but I need to manage ADCA interrupt in CPU1 and ADCB interrupt in CPU2. The same ISR is entered if everything is in CPU1, it is not entered if it is in CPU2.

This is my code in CPU2 main and the related ISR.

    ...
    //
    // Initialize PIE and clear PIE registers. Disables CPU interrupts.
    //
    Interrupt_initModule();

    //
    // Initialize the PIE vector table with pointers to the shell Interrupt
    // Service Routines (ISR).
    //
    Interrupt_initVectorTable();

    // Interrupt Settings for INT_ADCB1
    Interrupt_register(INT_ADCB1, &INT_ADC_VR_ISR);
    Interrupt_enable(INT_ADCB1);

    ...


void INT_ADC_VR_ISR(void){
    //
    // Clear the interrupt flag
    ADC_clearInterruptStatus(ADC_B_BASE, ADC_INT_NUMBER1);

    //
    // Check if overflow has occurred
    if(true == ADC_getInterruptOverflowStatus(ADC_B_BASE, ADC_INT_NUMBER1))
    {
        ADC_clearInterruptOverflowStatus(ADC_B_BASE, ADC_INT_NUMBER1);
        ADC_clearInterruptStatus(ADC_B_BASE, ADC_INT_NUMBER1);
    }

    //
    // Acknowledge the interrupt
    Interrupt_clearACKGroup(INTERRUPT_ACK_GROUP1);
}

What am I missing tin order to trigger correctly the interrupt in CPU2?

Thanks ,

Fabio

over 1 year ago

0 Vivek Singh over 1 year ago

TI__Guru** 115231 points

Fabio,

On CPU2, are other interrupts working fine and issue is only with ADCB ? Asking this to make sure there is no issue with general interrupt setup on CPU2

Vivek Singh

0 Fabio Rastrello over 1 year ago in reply to Vivek Singh

Prodigy 120 points

Hi Vivek,

I have only that interrupt configured in CPU2.

By the way, I tried to configure a TIMER0 with interrupt in this way:

...
//CPU2 TIMER0 for VR control Task
CPUTimer_setEmulationMode(CPUTIMER0_BASE, CPUTIMER_EMULATIONMODE_STOPAFTERNEXTDECREMENT);
CPUTimer_setPreScaler(CPUTIMER0_BASE, 0U);
CPUTimer_setPeriod(CPUTIMER0_BASE, 4000U);
CPUTimer_enableInterrupt(CPUTIMER0_BASE);
CPUTimer_stopTimer(CPUTIMER0_BASE);

CPUTimer_reloadTimerCounter(CPUTIMER0_BASE);
CPUTimer_startTimer(CPUTIMER0_BASE);

Interrupt_register(INT_TIMER0, &INT_VR_Timer_ISR);
Interrupt_enable(INT_TIMER0);

...

void INT_VR_Timer_ISR(void){
    counter++;

    Interrupt_clearACKGroup(INTERRUPT_ACK_GROUP1);
}

and everything works fine.

Returning to my issue, I want to clarify that my architecture is this: the EPWM6 triggers the SOC6 of ADCB, and the related EOC launches the interrupt. Everything configured with SysConfig in CPU1.

My doubt is, like user6301164 already said in linked question: "When i configure the pwm1 interrupt in the CPU1 and CPU2, both of them can enter the pwm1 interrupt. "

In fact, if I register the same interrupt about ADC in CPU1 in this way:

It is correctly trigger by both CPU1 and CPU2, but I cannot find a way to avoid the interrupt configuration in CPU1 and configure and use it only in CPU2. Or is it the correct way to manage it? I can leave the CPU1 interrupt empty with just aknowledge it, but it is a sort of workaround for me.

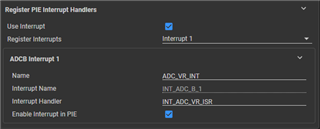

Moreover, to be clear, the flag "Use Interrupt" is always selected, both when I register and use it only in CPU2 (interrupt KO) and when I register and use in both cores (interrupt OK).

Thanks again,

Fabio

0 Ibukun Olumuyiwa over 1 year ago in reply to Fabio Rastrello

TI__Genius 11011 points

Hello Fabio,

If you intend to use ADCB in CPU2, then you should configure the CPU ownership accordingly. In SysConfig, under SYSCTL, assign ADCB to CPU2.

If you wish to do this in code, the function call is:

    // Assign ADCB to CPU2
    SysCtl_selectCPUForPeripheral(SYSCTL_CPUSEL11_ADC, 2, SYSCTL_CPUSEL_CPU2);

Best regards,
Ibukun

0 Fabio Rastrello over 1 year ago in reply to Ibukun Olumuyiwa

Prodigy 120 points

Hi Ibukun,

thanks a lot, I'm not using the SYSCTL menu in SysConfig, so I assigned ADCB to CPU2 in code as you suggeted (after Board_Init()), but in this way ADCB interrupt is entered only in CPU1 (if it is registered in that core), never in CPU2.

I tried also to add:

SysCtl_selectCPUForPeripheralInstance(SYSCTL_CPUSEL_EPWM6, SYSCTL_CPUSEL_CPU2);

To assign also EPWM6 to CPU2 (that actually will be updated in that core), with no success.

Something else is missing?

Thanks again,

Fabio

0 Ibukun Olumuyiwa over 1 year ago in reply to Fabio Rastrello

TI__Genius 11011 points

Fabio,

Just to clarify, are you trying to have both CPU1 and CPU2 respond to ADCB interrupts? Each CPU has its own PIE module, so if you want both CPUs to respond to ADCB's interrupt signal, then you must independently configure the PIE modules on both CPU1 and CPU2 to respond to it. For more details, please take a look at the device technical reference manual, section 3.4 - Peripheral Interrupts.

Best regards,
Ibukun

0 Fabio Rastrello over 1 year ago in reply to Ibukun Olumuyiwa

Prodigy 120 points

Hi Ibukun

thanks again, but what is happening with this initialization:

Fabio Rastrello said:
This is my code in CPU2 main and the related ISR.
Fullscreen
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
...
//
// Initialize PIE and clear PIE registers. Disables CPU interrupts.
//
Interrupt_initModule();
//
// Initialize the PIE vector table with pointers to the shell Interrupt
// Service Routines (ISR).
//
Interrupt_initVectorTable();
// Interrupt Settings for INT_ADCB1
Interrupt_register(INT_ADCB1, &INT_ADC_VR_ISR);
Interrupt_enable(INT_ADCB1);

...

void INT_ADC_VR_ISR(void){
//
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
    ...
    //
    // Initialize PIE and clear PIE registers. Disables CPU interrupts.
    //
    Interrupt_initModule();

    //
    // Initialize the PIE vector table with pointers to the shell Interrupt
    // Service Routines (ISR).
    //
    Interrupt_initVectorTable();

    // Interrupt Settings for INT_ADCB1
    Interrupt_register(INT_ADCB1, &INT_ADC_VR_ISR);
    Interrupt_enable(INT_ADCB1);

    ...


void INT_ADC_VR_ISR(void){
    //
    // Clear the interrupt flag
    ADC_clearInterruptStatus(ADC_B_BASE, ADC_INT_NUMBER1);

    //
    // Check if overflow has occurred
    if(true == ADC_getInterruptOverflowStatus(ADC_B_BASE, ADC_INT_NUMBER1))
    {
        ADC_clearInterruptOverflowStatus(ADC_B_BASE, ADC_INT_NUMBER1);
        ADC_clearInterruptStatus(ADC_B_BASE, ADC_INT_NUMBER1);
    }

    //
    // Acknowledge the interrupt
    Interrupt_clearACKGroup(INTERRUPT_ACK_GROUP1);
}


What am I missing tin order to trigger correctly the interrupt in CPU2?

is that I can trigger ADC interrupt in this way:

- Only in CPU1 -> OK

- Both CPU1 and CPU2 -> OK

- Only CPU2 -> KO

It seems I cannot have only ADC CPU2 interrupt without having also ADC CPU1 interrupt.

Thanks,

Fabio

0 Ibukun Olumuyiwa over 1 year ago in reply to Fabio Rastrello

TI__Genius 11011 points

Fabio,

Do you have EINT and ERTM in your CPU2 main function?

Thanks,
Ibukun

0 Fabio Rastrello over 1 year ago in reply to Ibukun Olumuyiwa

Prodigy 120 points

Yes, of course, at the end of overall initializations:

    //
    // Clear any IPC flags if set already
    IPC_clearFlagLtoR(IPC_CPU2_L_CPU1_R, IPC_FLAG_ALL);
    // Synchronize both the cores.
    IPC_sync(IPC_CPU2_L_CPU1_R, IPC_FLAG31);

    //
    // Enable Global Interrupt (INTM) and realtime interrupt (DBGM)
    //
    EINT;
    ERTM;

if not I think I could not have this:

Fabio Rastrello said:
- Both CPU1 and CPU2 -> OK

Thanks,

Fabio

0 Ibukun Olumuyiwa over 1 year ago in reply to Fabio Rastrello

TI__Genius 11011 points

Hello Fabio,

Sorry for the delayed response. I am consulting with our system control experts to get some more insight into your issue.

Best regards,
Ibukun

0 Fabio Rastrello over 1 year ago in reply to Ibukun Olumuyiwa

Prodigy 120 points

Hi Ibukun,

do you have any update about this topic? I'm still managing the ADC interrupt in both cores in order to have it in CPU2: it is not a big issue to manage it in both cores, but I'm concerned about performances of my code that could beaffected considering some very fast control operations.

Thanks again and best regrds,

Fabio

0 Ibukun Olumuyiwa over 1 year ago in reply to Fabio Rastrello

TI__Genius 11011 points

Hello Fabio,

So far it seems like you've configured everything correctly. Can we see the output in board.c for when you set it up for CPU1+CPU2 and it works, versus when you configure it for CPU2 only? I'm wondering if a diff of the generated code can give us a clue as to why the CPU2 only case does not work.

Best regards,
Ibukun

0 Fabio Rastrello over 1 year ago in reply to Ibukun Olumuyiwa

Prodigy 120 points

Hi Ibukun,

when I don't register the interrupt with SysConfig in CPU1:

this is the board.c code:

/*
 * Copyright (c) 2020 Texas Instruments Incorporated - http://www.ti.com
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without
