hello,
I have some question Based on the HVACI_Sensorless project found in C:\ti\controlSUITE\development_kits\HVMotorCtrl+PfcKit_v2.0\HVACI_Sensorles
I want to see different waveforms on Graph (tools→graph→single time) or from watch expression window right click on the variable name then Graph this add the variable into the graph.
Then I get the following result, with the graph properties based on build level one.

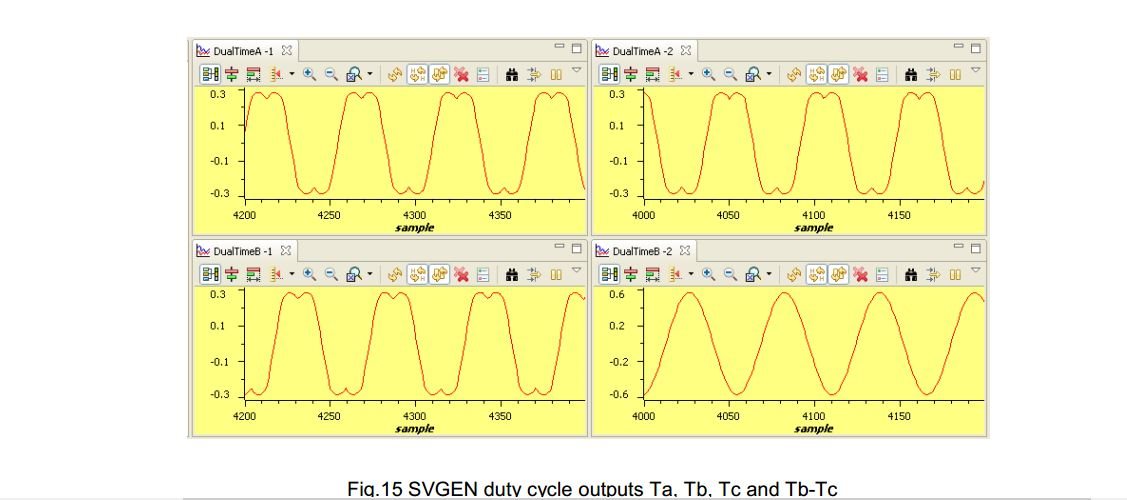

Svgen1.Ta waveform
I think the waveform displayed seems to be correct but I could not get the exact result mentioned in the Sensorless FOC of ACI.pdf manual.
Also, I checked other build levels for current and voltage waveforms…etc. I could not get the result as mentioned in Sensorless FOC of ACI.pdf manual.
how can I see the correct waveforms using graph (may be related to graph properties/ any other solution), I am ready to accept your solution?
