TIDM-1000: Three phase Vienna Rectifier-Reg

Hi Ganapathy,

Which version of digital power SDK are you using? Is it the latest one?

Regards,

Chen

Dear Chen,

we are using C2000WARE-DIGITALPOWER-SDK- v3.01.00.00 which was the latest one.

Regards,

Ganapathy

Hi,

Let me check it on my end to see if I could reproduce the issue. Those values should show up under the test condition you provided.

Regards,

Chen

Dear Chen,

Thanks, in advance

Please verify the same and share us the results.

Regards

Ganapathy

Hi Ganapathy,

I have tried to reproduce the issue you observed but everything looks fine on my end.

My comments below:

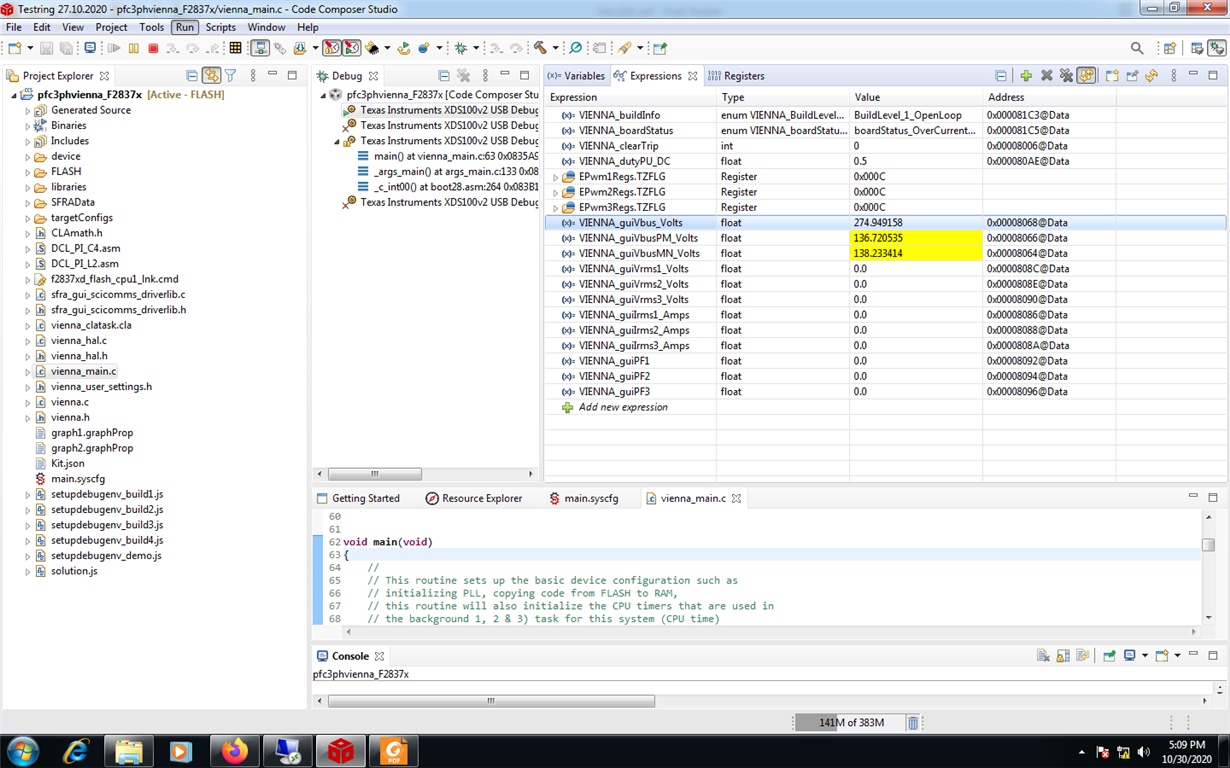

1. I saw you triggered the current protection for some reason. This should not happen if your hardware is ok under the build 1 and if you didn't change the original code.

2. Even if you trigger the current protection, you should still see the values. So you could check the ADC value first that was used to calculate VIENNA_iL1Meas_pu.

VIENNA_iL1Meas_pu = (((float32_t)(VIENNA_IL1_FB_1 + VIENNA_IL1_FB_2 +
VIENNA_IL1_FB_3 + VIENNA_IL1_FB_4)) *
VIENNA_ADC_PU_SCALE_FACTOR * 0.25f - VIENNA_iL1MeasOffset_pu ) * 2.0f;

I highly doubt that it is the hardware/controlcard issue if you didn't change the software.

Regards,

Chen

Dear chen,

Could you please provide us the info about how to remove the current protection option while run.

Regards

Ganapathy

Hi Ganapathy,

You can comment it out the code below in the vienna_main.c.

//
// setup protection and trips for the board
//
VIENNA_HAL_setupBoardProtection(VIENNA_HIGH_FREQ_PWM1_BASE,
VIENNA_HIGH_FREQ_PWM2_BASE,
VIENNA_HIGH_FREQ_PWM3_BASE,
VIENNA_I_TRIP_LIMIT_AMPS, VIENNA_I_MAX_SENSE_AMPS);

Regards,

Chen
